Ubiquiti Entry Sensor, White, Battery-Powered SuperLink Sensor That Monitors Door, Window Open/Closed Status

Product May Vary From Image
Our Price:
$110.90
Quantity:
Part No:
559786
Brand:
Ubiquiti
Manuf No:
USL-Entry

USLEntry
Ship Weight:
0.04 KG  Details
Usually Ships:
1-3 Days   More info
Product Description

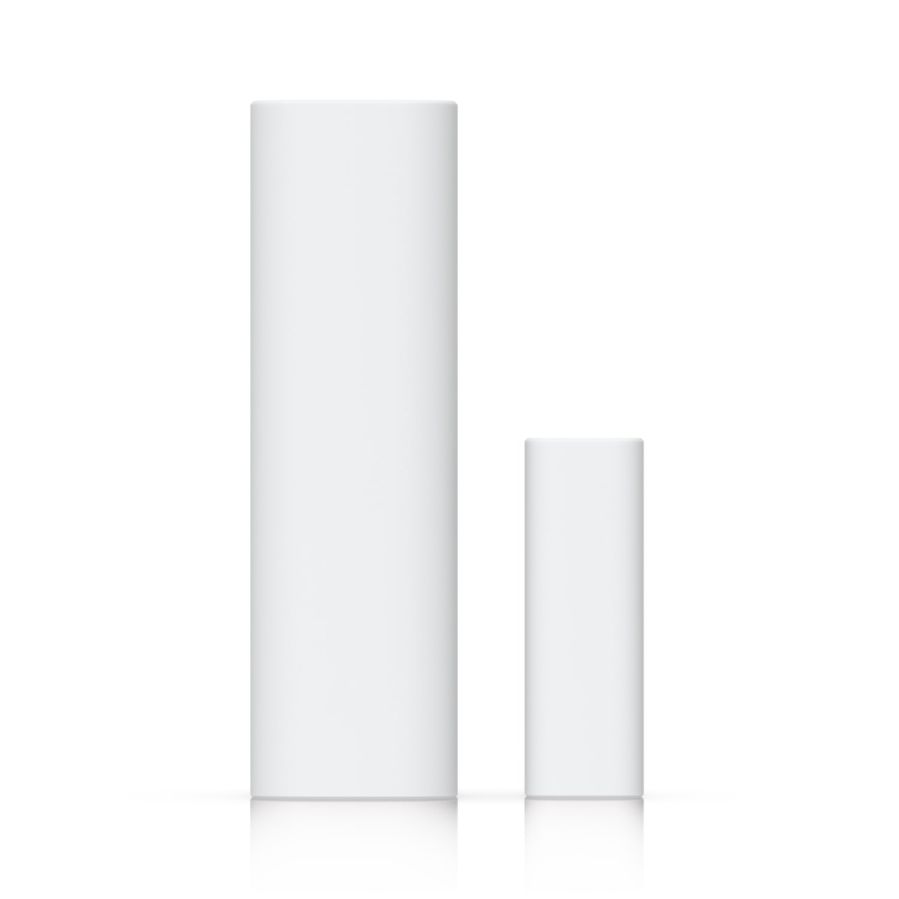

Entry Sensor

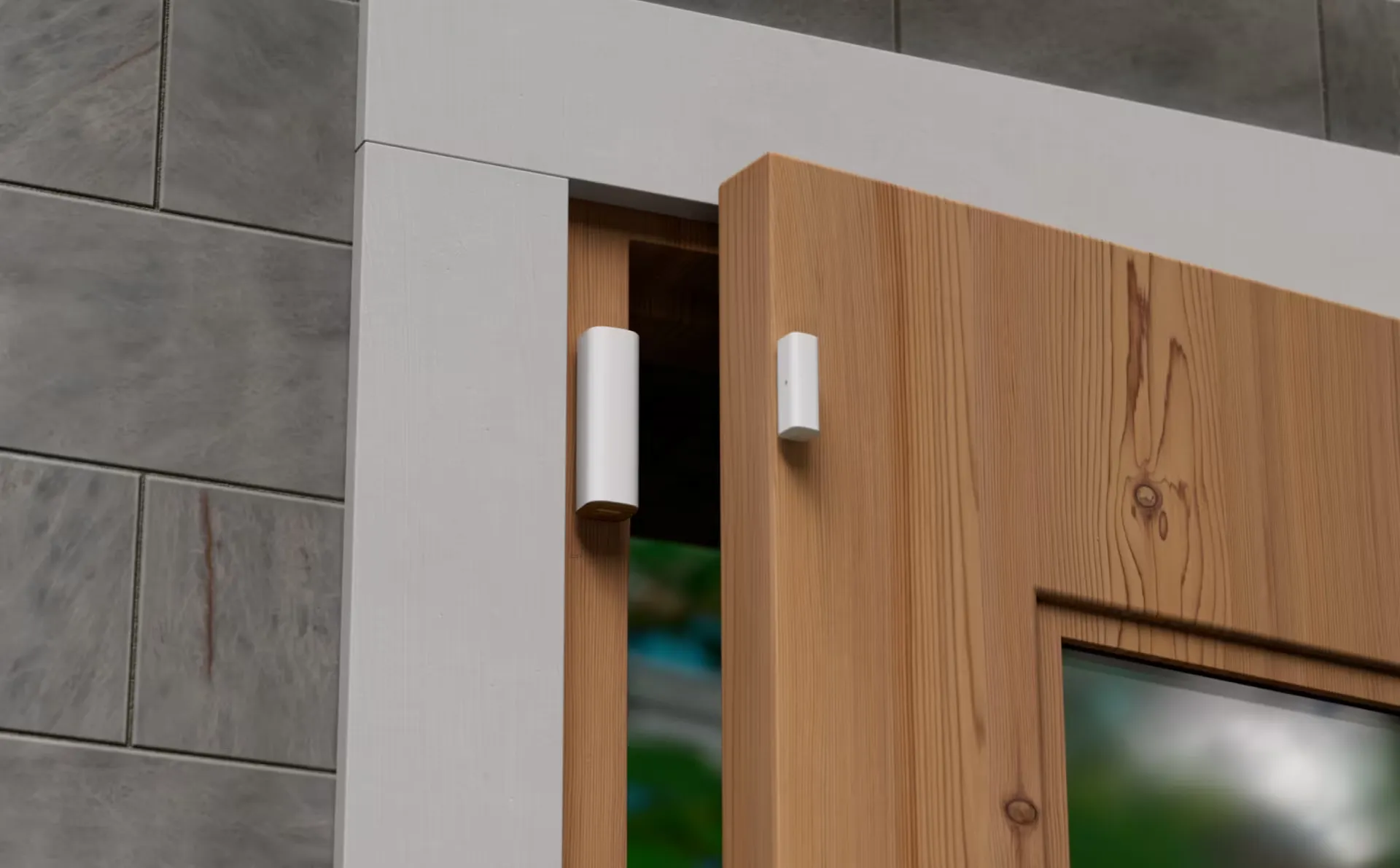

SuperLink sensor with up to 6-year battery life for monitoring door and window open/closed status.

75.5 x 23.5x 22.5 mm
SuperLink (Proprietary)

Industrial Sensing with SuperLink

With the introduction of SuperLink, Ubiquiti are bringing a new standard of long-range, low-latency, and scalable IoT connectivity to UniFi. SuperLink is designed to meet the needs of both residential and commercial applications, with seamless integration into the UniFi OS ecosystem.

Why SuperLink?

Todays IoT environments require a balance of range, reliability, and efficiency. SuperLink is engineered to deliver multi-kilometer range, ultra-low latency, efficient power management, seamless software updates and robust security.

Frequently Asked Questions

What is SuperLink and how does it compare to the existing BLE interface?
Can I use existing UniFi Protect BLE sensors with SuperLink?
What types of devices will be available on SuperLink?
Is SuperLink secure?
How do I set up SuperLink?
Will SuperLink require a UniFi OS Console to operate?

Deployment & Features

Technical Specs
Overview
Dimensions
Device: 75.5 x 23.5x 22.5 mm
Magnet: 39 x 15.1 x 12.9 mm
Mounting

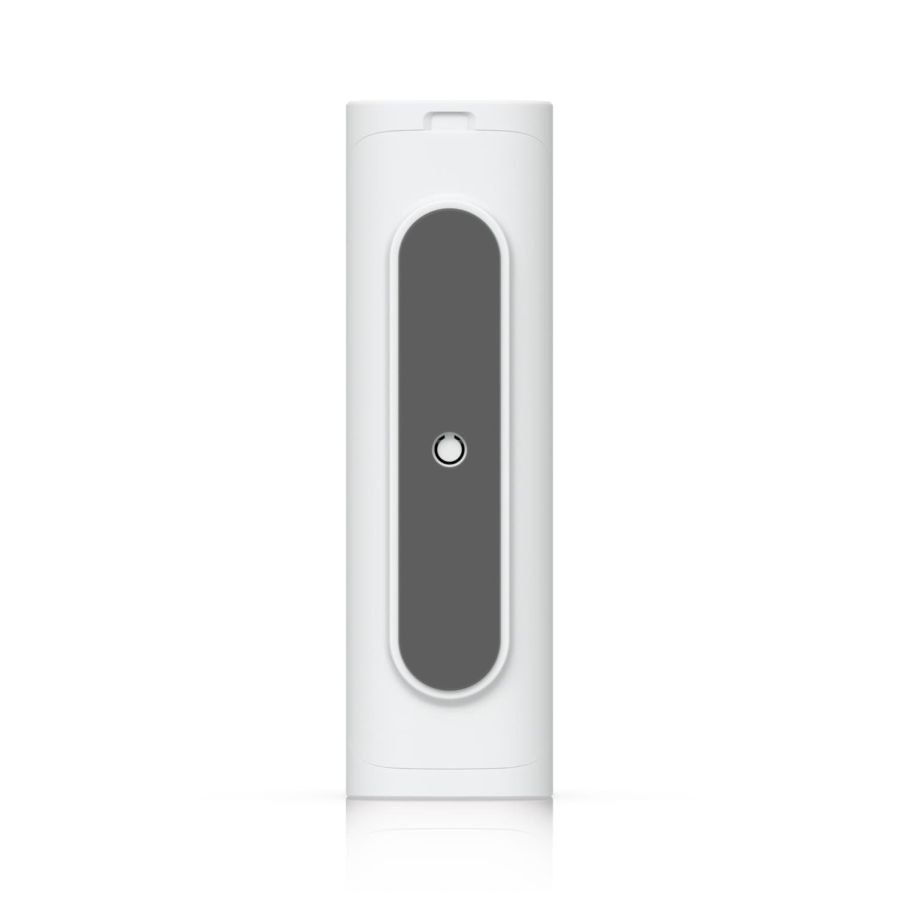

Adhesive and screw mount
UniFi Application Suite
Protect
Performance
Connectivity
SuperLink (Proprietary)
Operating Frequency
US: 915.6-927.6 MHz
EU: 865.1-869.5 MHz
Antenna Gain
SuperLink: 0 dBi
Max. TX Power
SuperLink: 14 dBm
Max. Range
SuperLink: 2 km (1.2 mi)
Sensor Features
Reed Switch: Yes
Hardware
Max. Power Consumption
27.7 mW
Supported Voltage Range
3 V
Power Method

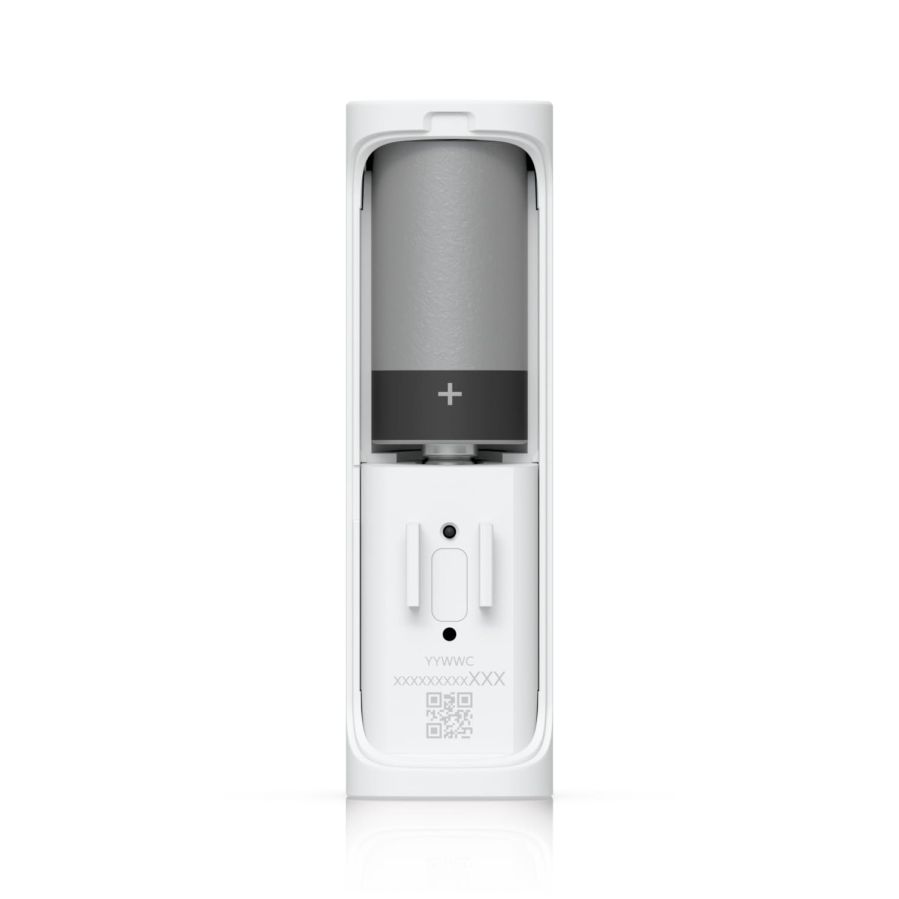

Lithium battery CR123A
Battery Life
Up to 6 years
Weight
Device: 41 g
Magnet: 22 g
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Buttons
(1) Factory-reset
(1) Function button
(1) Tamper switch
LEDs
(1) Status: R/B/W
(1) Signal: B/R
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
NDAA Compliant
Yes
Software
Application Requirements
Web Application: UniFi Protect
Mobile App: UniFi Protect iOS and Android




Product Warranty


1 Year Return to Base
