Logitech LOGITECH SWYTCH W/ 1.5M USB CABLE,HUB(1),EXTENDER(1),USB CABLE(5M),HDMI CABLE(2M), 2YR WTY

Product May Vary From Image
Our Price:
$1,640.75
Quantity:
Part No:
567580
Brand:
Logitech  Web Site
Manuf No:
DE-952-000011

DE952000011
Ship Weight:
2.9 KG  Details
Usually Ships:
1-3 Days   More info
Product Description
Connect a laptop to a room systems AV equipment for use with any video meeting or webinar.

Part Number

  • 952-000011

Dimensions

Swytch Hub
  • Height: 27.4 mm
  • Width: 164 mm
  • Depth: 90 mm
Swytch Extender
  • Height: 27.4 mm
  • Width: 120 mm
  • Depth: 120 mm

Technical Specifications

PORTS AND INTERFACES
Swytch Hub
  • Power
  • HDMI 2.0 to Display
  • HDMI 2.0 to Meeting Room Computer
  • USB 3.0 Type A to Conference Camera
  • USB 3.0 Type C to Meeting Room Computer
  • USB 3.0 Type C to Swytch Extender
Swytch Extender
  • Power
  • USB 3.0 Type A to Swytch Hub
  • USB 3.0 Type C to Swytch Connector
  • USB 3.0 Micro B to Swytch Connector
Swytch Connector
  • USB 3.0 Type A to laptops with Type A ports
  • USB 3.0 Type C to laptops with Type C ports
Mounts
  • Swytch Hub: Compatible with Logitech PC Mount (not included)
  • Swytch Extender: Mount through a 25 mm grommet hole or attach below the table with included hardware
  • Swytch Connector: Magnetic dock included
General Specifications
  • Number of Meeting Room Displays: 1
  • Maximum Resolution and Frame Rate, Display: 4K/60 fps
  • Maximum Resolution and Frame Rate, Camera: 4K/30 fps
  • Laptop Audio for Local Sharing: Yes
  • Laptop Audio for Online Meetings: Yes (with services that support content sharing with system audio)
  • Device Management: Remote monitoring and management via Logitech Sync
Compatibility
  • Conference Cameras
    • Works with Logitech Rally and Rally Plus, Rally Bar, Rally Bar Mini, MeetUp, GROUP, and other conference cameras that connect via USB
  • Room Solutions
    • Microsoft Teams Rooms
    • Zoom Rooms
    • Also compatible with other room solutions that use USB-connected conference cameras and an HDMI-connected display.
  • Cabling
    • Logitech Strong USB 10m
    • Logitech Strong USB 25m

Warranty Information

2-Year Limited Hardware Warranty

Meeting Room Equipment
  • Display with HDMI input
  • USB conference cameras with speakerphone
Laptop Computers
  • USB 3.0 Port (Type A or Type C)
  • USB Power Delivery (Up to 60 watts) for compatible laptops that charge via USB Type C
  • Operating Systems with DisplayLink Plug and Display Drivers, including Windows 10, macOS 10.15 and later, and ChromeOS 75 or later.
.

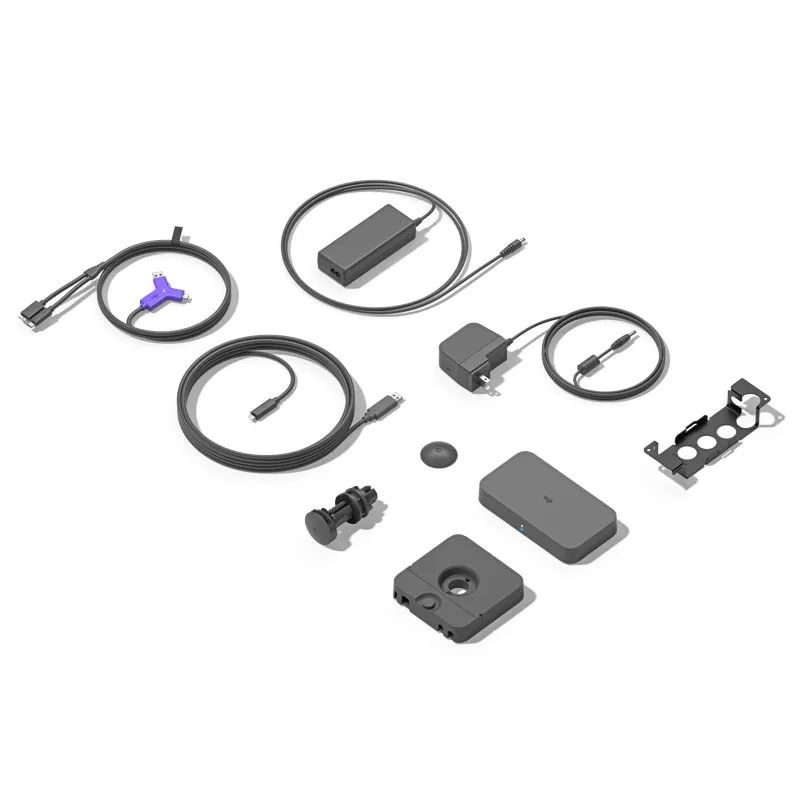

  • Swytch Hub
  • Swytch Extender
  • 100-240v Swytch Hub Power Supply
  • 100-240v Swytch Extender Power Supply
  • 5m / 16.4ft USB 3.0 Cable
  • 2.2m / 7.2ft USB 3.0 Cable
  • 2.0m / 6.5ft HDMI 2.0 Cable
  • Mounting accessories
  • Documentation

Product Warranty


12 Month Return To Base
