| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Day/night mode | Yes |
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Dynamic range | 120 dB |
| Design |
|---|
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Housing material | Plastic |
| Camera |
|---|
| Minimum illumination | 0.005 lx |
| Field of view (FOV) angle | 107 ° |
| Tilt angle range | 0 - 85 ° |
| Pan range | 0 - 360 ° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Lens viewing angle, horizontal | 90 ° |
| Lens viewing angle, vertical | 48 ° |
| Lens viewing angle, diagonal | 107 ° |
| Image sensor |
|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Bit rate control | Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 6 Mbps |
| Maximum resolution | 2880 x 1620 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
| Supported video modes | 720p, 1080p, 2560p, 2880p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Video recording | Yes |
| Audio |
|---|
| Voice codecs | G.711 |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Management features |
|---|
| Reset button | Yes |
| Power |
|---|
| Power source type | DC |
| Power consumption (max) | 9 W |
| DC-in jack | Yes |
| Certificates |
|---|
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Package type | Box |
| Height | 84 mm |
| Diameter | 12.3 cm |
| Weight | 240 g |
| Package weight | 400 g |
| Packaging content |
|---|
| Number of cameras | 1 |
| Package type | Box |

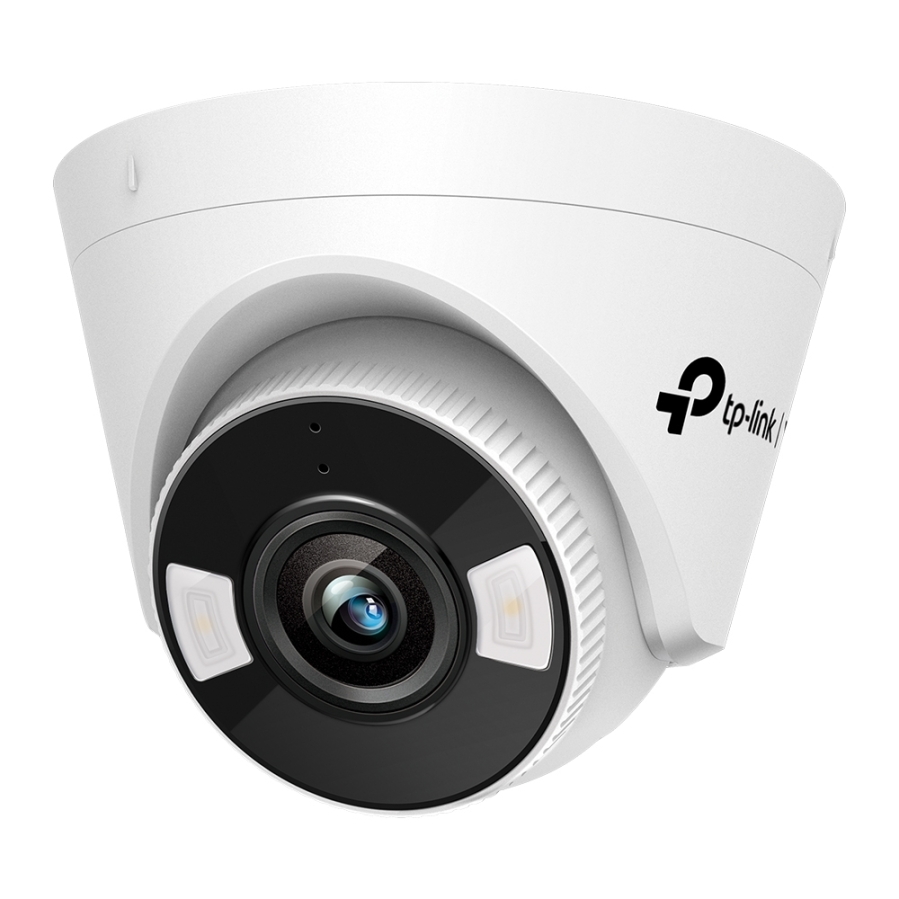

All The Colors, All The Time5MP Full-Color Turret Network Camera
24/7 Stunning Visual Experience
5MP Super-High DefinitionMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Comprehensive AI Detection with Pre-Set Rules SupportedBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
People & Vehicle AnalyticsQuickly find people and vehicles of interest using a series of attributes.
People AnalyticsFilter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.
Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time
Active DefenseWarn potential intruders instantly with sound and light when abnormal events
Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere.
Corridor ModeRotate the live image and lens 90 ° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Smart Video Coding by H.265+Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Flexible StorageLocal storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
Plug & Play with
One CableEnjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
One system. Full security.
Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
