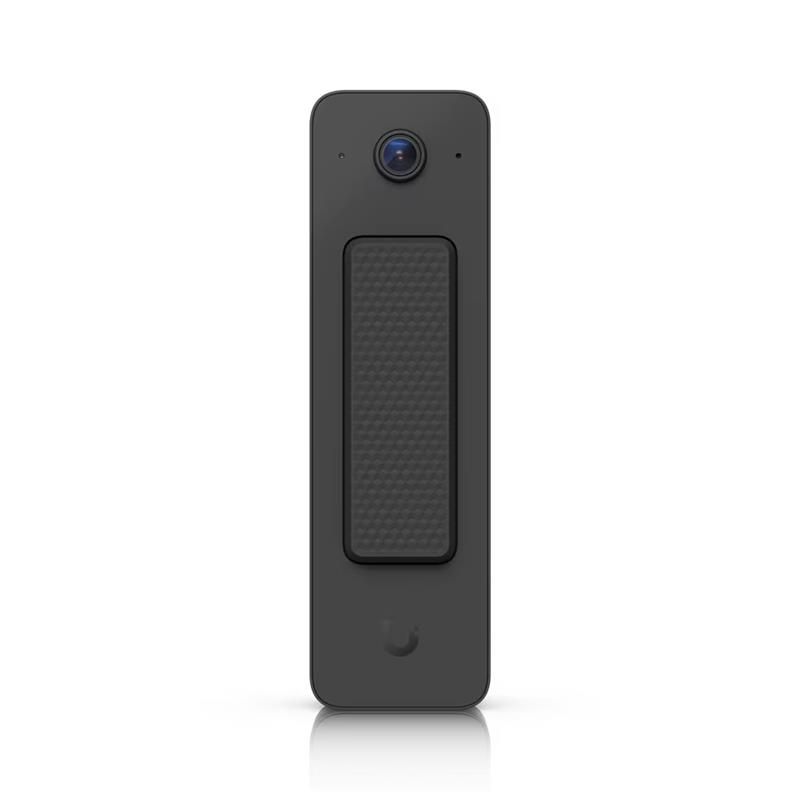

Doorbell Lite - Black
Compact PoE video doorbell with two-way audio and versatile mounting options.
Primary Camera with AI Detections
Built-In Two-Way Audio
Weather Resistant

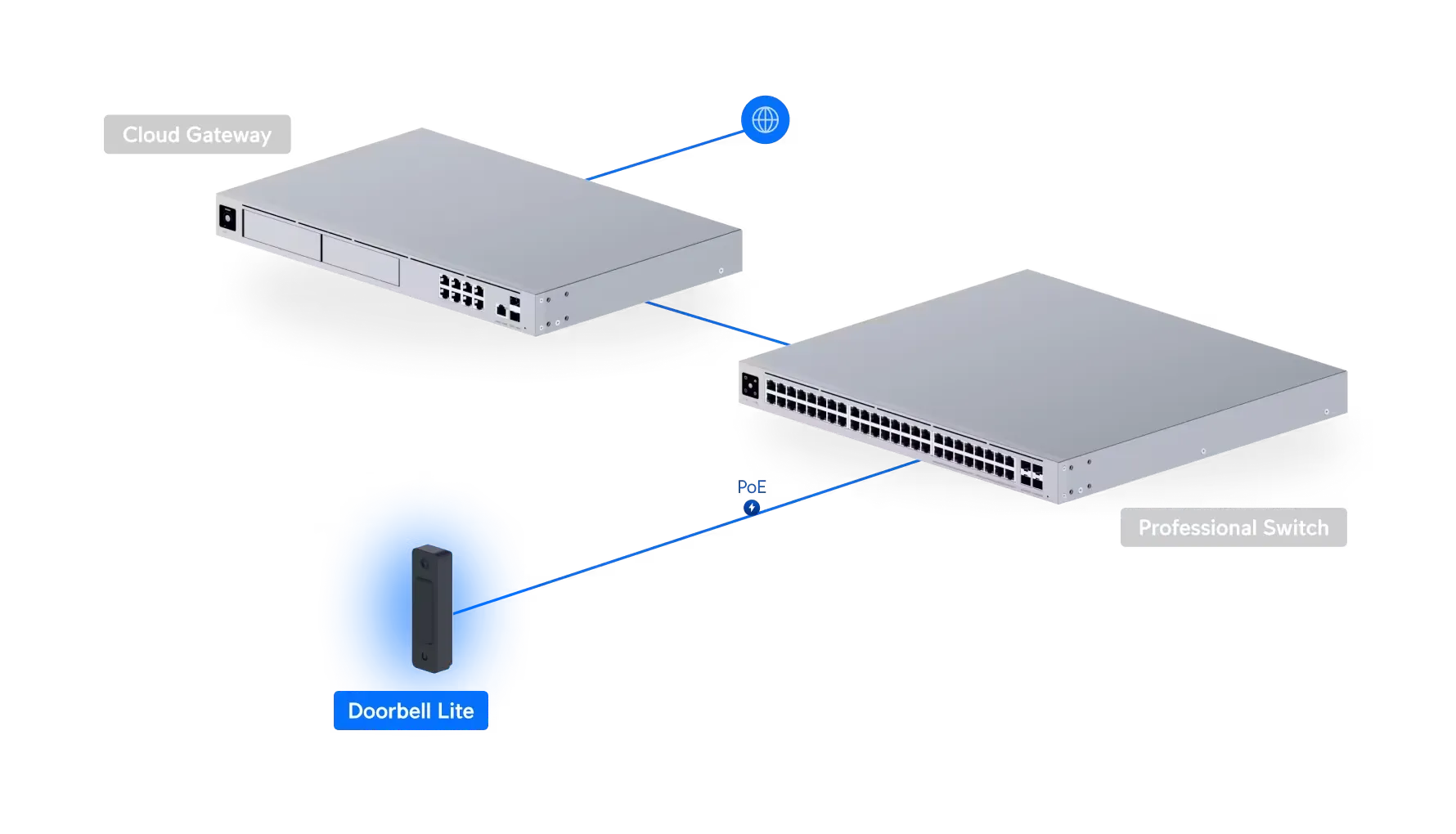

Integrated PoE
Access, Reimagined
The Doorbell Lite features a timeless design that is non-invasive and ideal for a wide range of deployment environments. Bringing UniFi technology to everyone.
2K Image Sensor
Doorbell Lite features a camera with a 2K 1/2.7 5MP Image Sensor and IR LED with 5m IR Night Vision.
Overview

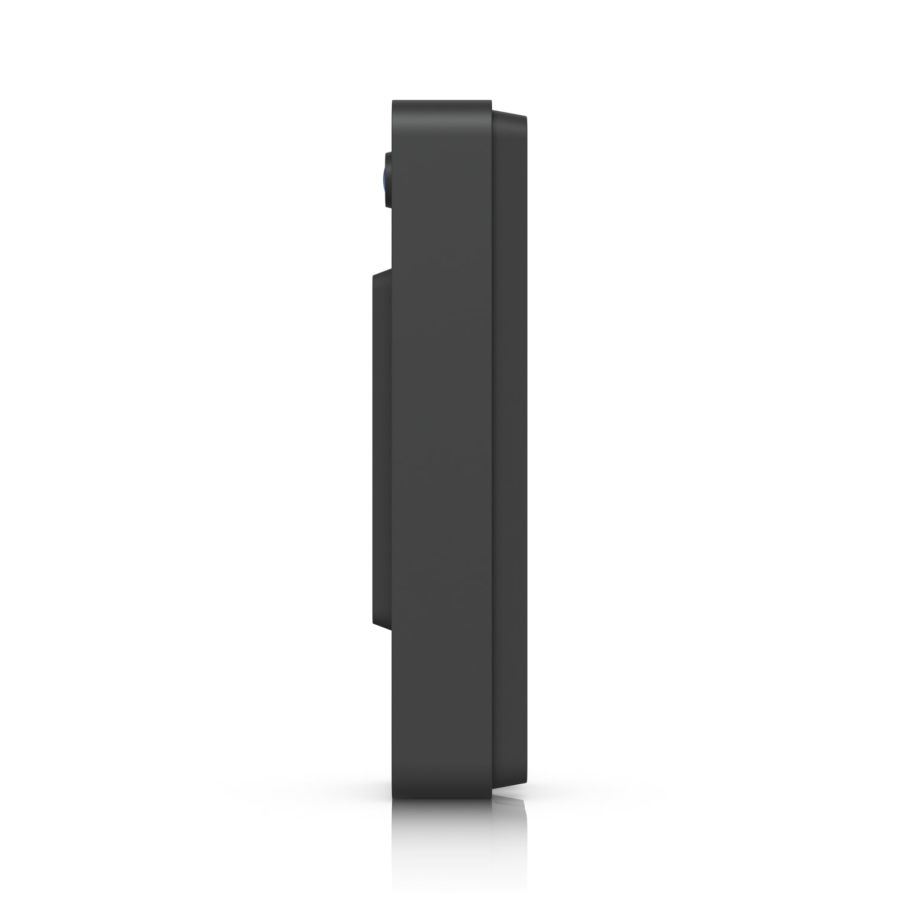

Dimensions
137 x 40 x 26.4 mm (5.4 x 1.6 x 1")
IR Night Vision
5 m (16 ft)
Smart Detections (People, Vehicles, Animals)
Yes
Field of View
H: 95.8, V: 131.2, D: 175.9
Audio
Two-way audio, with noise cancellation

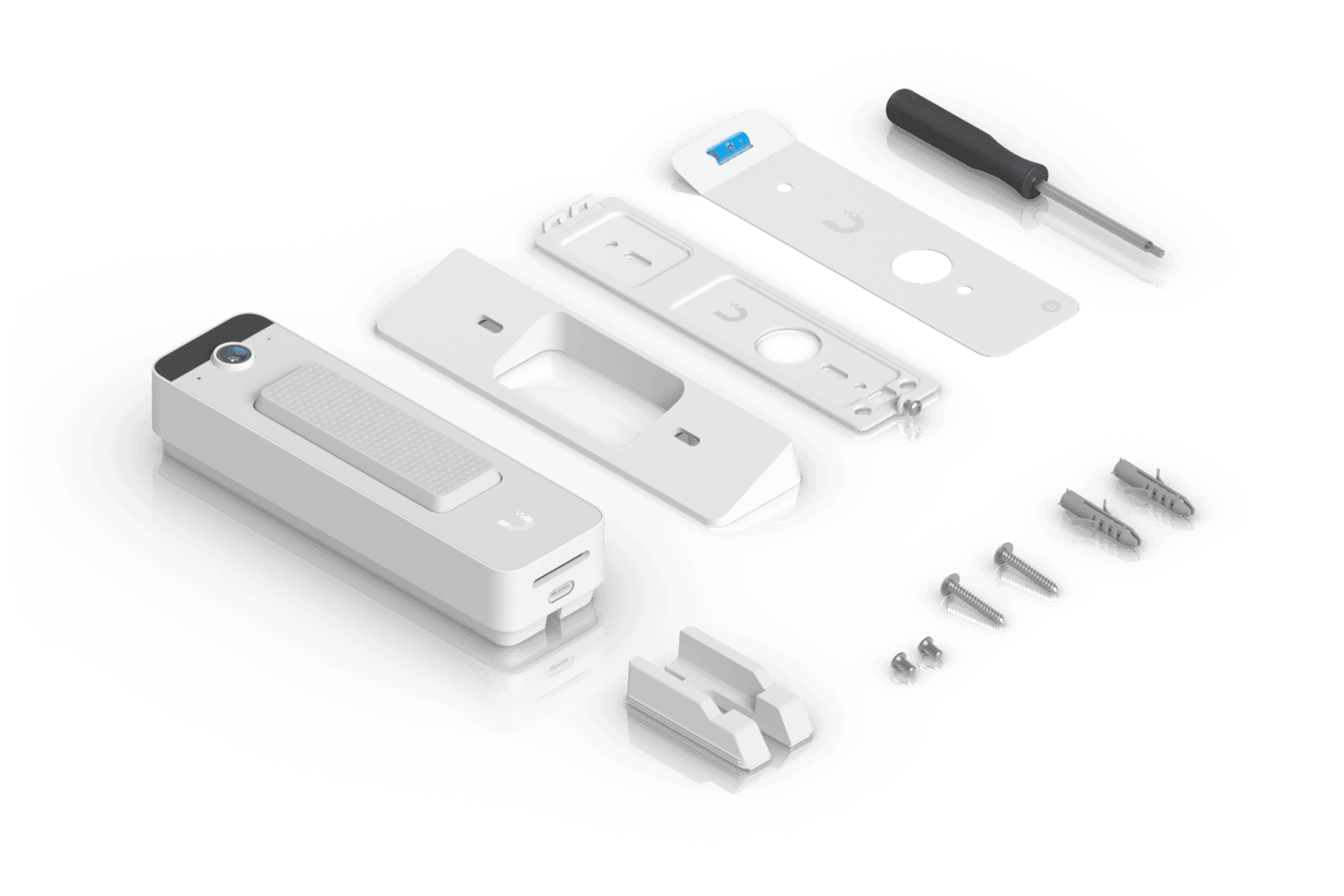

Mounting
Wall, 20 wedge (Included)
Gang box, junction box (Sold separately)
UniFi Application Suite
Protect: Yes
Performance

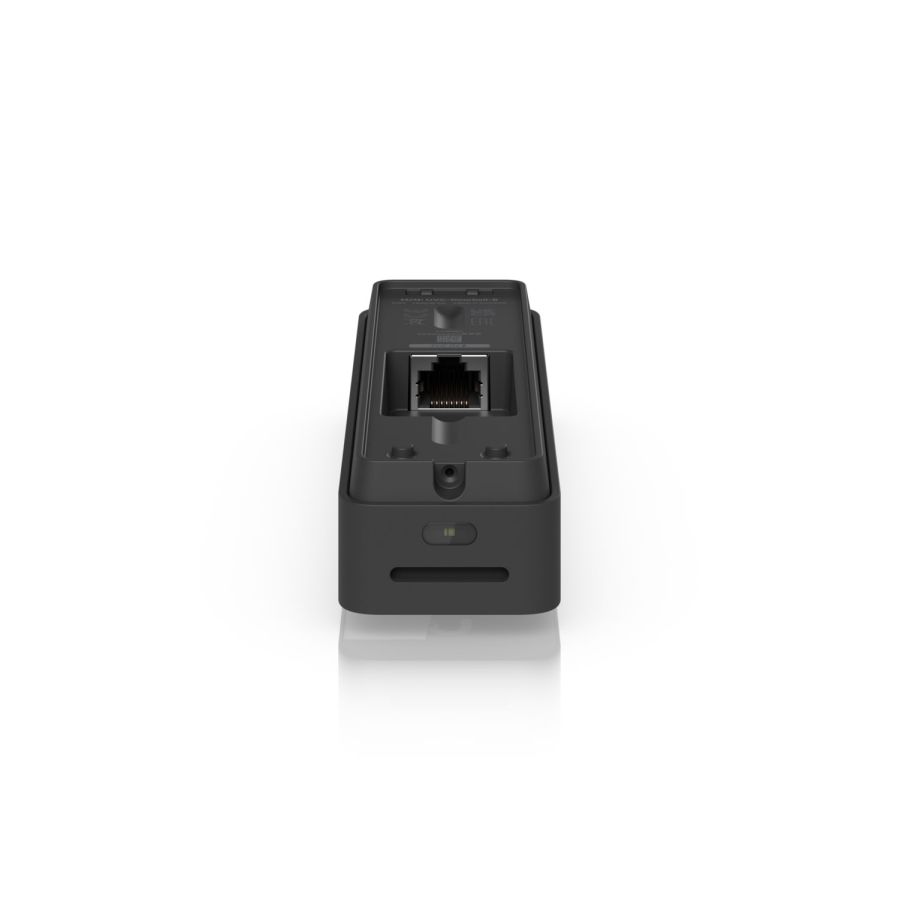

Networking Interface
10/100 MbE port
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Resolution
5MP 1920 x 2560 (3:4)
Night Mode
Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
8 W
Supported Voltage Range
3757V DC
Processor
Dual-core Arm Cortex-A7 based chip
Weight
Device: 142 g (5 oz)
With flat wall mount: 165 g (5.8 oz)
With 20 wedge mount: 179 g (6.3 oz)
Enclosure Material
Polycarbonate, metal
Mount Material
Formed sheet metal
Buttons
(1) Ring button
(1) Factory-reset
Ambient Operating Temperature
-30 to 50 C (-22 to 122 F)
Ambient Operating Humidity
20 to 90% noncondensing
Certifications
CE, FCC, IC
