Powered by 2-AA batteries in a compact and light body.
At full power, it can be red approximately 280 times. It charges in approximately 4 seconds (when using Ni-MH batteries), and is more durable than you would expect from something so compact.
Guide Number 20 (ISO 100m)
The maximum Guide Number 20.
Shoe mount type
 |
When you are done shooting, you can rotate the shoe into the body as shown. Its very convenient to carry around because it is so compact. |
Compatible with TTL functions of digital SLR cameras.*
Compatible with the advanced ash output control function for Canon E-TTL II,Nikon i-TTL and Sony ADIP-TTL.
*with the exception of some models.
TTL signals are automatically recognized just by mounting and turning on.
The latest high-accuracy TTL signals are recognized by just mounting this ash on a camera and turning it on. This ash ensures the accurate, optimum, and high-quality lighting.
Auto power OFF function
It comes with an energy-saving function that will turn the power off after 15 minutes of inactivity.
Vertical-Up 90for bounce function

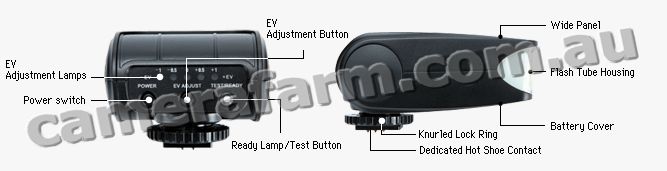

EV adjustment buttons enable free operations.
 |
Easily increase and decrease ash output by using EV adjustment button. The photographer's intention can be freely represented by the EV adjustment function up to +/-1.0EV.
*5 steps (-1, -0.5, 0, +0.5, +1) can be set. |
Built-in wide panel
 |
Applicable to wide-angle lens, more than 16mm focal length. (APS-C size) |
Firmware can be updated
Even if you buy a new camera at some point, you can update your ash with our latest rmware and continue to use it as is.
* Applies only to models from the same manufacturer.
 |
|
| Guide Number (ISO 100-m) |
20 |
| Flash Control Mode |
Canon: E-TTLIINikon: i-TTLSony(): ADI, P-TTL |
| Compatible Cameras |
Digital SLR cameras with above ash control mode. |
| Wireless Function |
- |
| Recycling Time |
*Full flashing |
Alkaline
Battery |
2-AA approx. 5 sec. |
Ni-MH
Battery |
2-AA approx. 4 sec. |
| No. of Flashes |
*Full flashing |
Alkaline
Battery |
2-AA approx. 200 |
Ni-MH
Battery |
2-AA approx. 280 |
Auto Effective Range
(Focal Length at 35mm) |
TTL Auto 1.010m |
| Power Ratio |
- |
| Angle of Coverage |
Covers the focal length of 22mm or longer (APS-C size)
Covers the focal length of 32mm or longer
(when converted to 35-mm lm size) |
| Effective Range of AF Assist Light |
- |
| Flash Speed |
Approx. 1/800 sec. |
| Bounce Flash |
Vertical: Up 90 |
| Wide Panel |
16mm (APS-C size)
24mm (when converted to 35-mm film size) |
Zoom Position Display
(switch type) |
- |
Dimensions
(H*W*D) (w/o Shoe) |
Approx. 43.5x60x88mm / 1.8x2.4x3.5in |
| Weight (w/o Battery) |
Approx. 100g / 3.5oz |
| Accessory |
- |
| EAN (maker code 4960436) |
For Canon 023980For Nikon 024017For Sony() 024062 |
|
