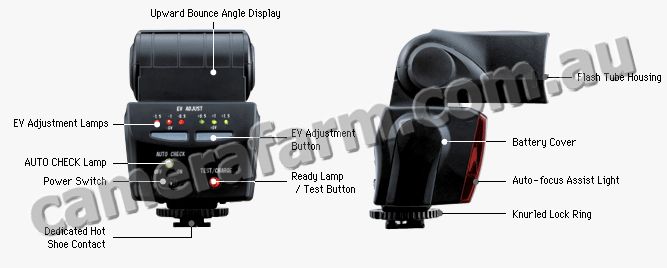

Description of Parts & LCD Display
Small and light weight body requires only 2 AA batteries.
More than 40% smaller in size and 70g lighter in weight when compared to similar size flashes with comparable features.
Guide Number (ISO 100-m):30
Even with its smaller size, it has a guide number 30.
*Note1Compatible with TTL functions of digital SLR cameras.*Note1
Compatible with the advan-ced flash output control function for Canon E-TTL-II, Nikon i-TTL, SONYADI.
* Note1 : with the exception of some models.
TTL signals are automatically recognized just by mounting and turning on.
The latest high-accuracy TTL signals are recognized by just mounting this flash on a camera and turning it on. This flash ensures the accurate, optimum, and high-quality lighting.
TTL automatic check function
 |
When shooting, the normal functioning of the TTL automatic function can be checked by the AUTO CHECK lamp in the rear panel. |
EV adjustment buttons enable free operations.
* Photo shows all-lit image. (Not actual image)
|
Light volume can be easily changed with EV adjustment buttons.
The photographer's intention can be freely represented by the EV adjustment function up to +/-1.5EV.
* Seven steps (-1.5, -1, -0.5, 0, +0.5, +1, +1.5) can be set. |
Vertical-Up 90for bounce function
Auto Focus Assist Light supports focusing in low light situations.
 |
When shooting in the dark or dim places, the near infrared assist light is automatically illuminated to enable automatic focusing. |
 |
|
| Guide Number (ISO100 - m) |
30 |
| Flash Control Mode |
Canon: E-TTLII Nikon: i-TTL SONY(): ADI, P-TTL |
| Power supply |
2 size AA batteries (Oxyride, Alkaline, Ni-MH, NiCad) |
| Recycling Time |
*Full flashing |
Alkaline
Battery |
2-AA approx. 10 sec. |
Ni-MH
Battery |
2-AA approx. 8 sec. |
| No. of Flashes |
*Full flashing |
Alkaline
Battery |
2-AA approx. 100 |
Ni-MH
Battery |
2-AA approx. 140 |
Auto Effective Range
(Focal Length at 35mm) |
TTL Auto-F2 1.5-15 m |
Effective range of
AF assist light |
1-5 m |
| Angle of Coverage |
Covers the focal length of 19mm or longer (APS-C size)
Covers the focal length of 28mm or longer
(when converted to 35-mm film size) |
| Flash Speed |
Approx. 1/800 sec. |
| Bounce Flash |
Vertical-Up 90 |
Dimensions
(H*W*D) (w/o Shoe) |
Approx. 100x68x92mm/4x2.7x3.7in |
| Weight (w/o Battery) |
Approx. 220g/7.7oz |
| EAN (maker code 4960436) |
CA-e for Canon 023782 NE-i for Nikon 023799 So-ADI for Sony() 023867 |
|
