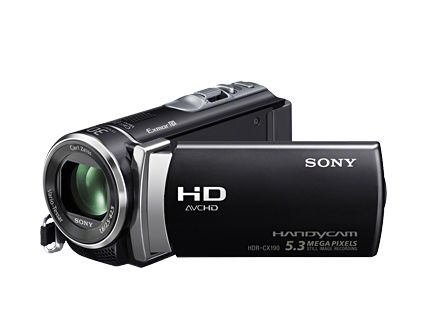

Full HD 1920x1080 Camcorder
Model Number: HDRCX190
Featuring: Carl Zeiss Lens with 25x Optical Zoom, SteadyShot with Active Mode, Exmor R CMOS sensor, 2.7" Clear Photo LCD, iAuto, Built-in USB
Features
1920x1080p Full HD Recording w/5.3MP still image capture
The Sony HDR-CX190 offers 1920 x 1080p high definition resolution letting you record your memories in exceptional Full High Definition quality. With Dual Capture you can also take 5.3MP still images while shooting HD movie.
30x Extended Zoom to get even closer to the action
Extended Zoom works in conjunction with 25x optical zoom to get even closer to the action while maintaining HD image quality.
Intelligent Auto (60 different scene combinations possible)
Intelligent Auto mode goes a step beyond traditional auto modes by analyzing your shot and then automatically selecting the appropriate settings from nine distinct scene modes (60 different combinations possible): Portrait/Baby/Tripod/Backlight/Landscape /Spotlight/Twilight/Macro/Low light.
Direct Copy to external HDD without PC
Store your memories in a whole new way with the ability to copy videos from your camcorder directly to an external hard disk drive (sold separately), all without a computer. Your camcorder can also access videos stored on the external hard drive for playback on your HDTV4, allowing you to utilize the camcorders handy playback features.
Back-illuminated Exmor R CMOS sensor for superb low-light video
Experience stunning low-light sensitivity with improved image clarity and drastically reduced grain with Sonys back-illuminated Exmor R CMOS sensor. Designed for compact cameras and camcorders, the Exmor R CMOS sensor relocates the photo diodes above the support circuitry, maximizing the light gathering area per pixel so you can shoot with better results in lower lighting conditions.
2.7 Clear Photo LCD display (230K)
The 2.7 Clear Photo LCD screen displays sharp, bright, vivid images, letting you compose a shot more easily -- even outdoors, while enabling you to change settings to best represent the scene.
Event Browse groups photos/videos for you for easy reference
Event Browse conveniently groups your images and videos together for easier viewing. The date range that Event Browse groups your pictures and videos is easily adjusted to suit your needs. When used with the Highlight Playback feature, making and sharing a highlight reel from your event is easy and fun.
SteadyShot image stabilization w/ Active Mode
SteadyShot image stabilization with Active Mode compensates for greater degrees of camera shake to deliver stunningly smooth video from wide angle to full telephoto shooting. In addition, innovative 3-Way Shake-Canceling adds electronic roll stability for even smoother video capture
Built-in USB cable for easy file transfer/charge
The high-speed, built-in USB 2.0 cable allows for easy connection to your computer for charging or file transfer without having to remember separate cables. It also fits conveniently into the hand strap so its out of the way until you need it. Charging your camcorder is faster than ever now through the USB; for every two minutes of charge time you get one minute of recording time.
Highlight Playback creates movies with transitions for you
Why spend hours editing your movies when you can let your camcorder do it for you? Highlight Playback identifies and compiles key scenes into a short, entertaining movie complete with music and transitions. You can even pinpoint the exact scene you want to include in the highlight reel.
Product Specifications
Basic Specifications
Weights and Measurements
- Dimensions (Approx.) : Approx.2 1/8inch x 2 1/4inch x 4 1/2inch (Approx. 51mm x 56mm x 114mm)
- Weight (Approx.) : Approx. 7.5oz (NP-FV30 (supplied battery)); Approx. 7.9oz (NP-FV50); Approx. 9.4oz (NP-FV70); Approx. 12.9oz (NP-FV100)
Recording
- Still Image Size 4:3 : Movie mode: 4.0 megapixels 4:3 (2304x1728); Photo mode: 4.0 megapixels 4:3 (2304x1728)
- Video Mode : HD FX: Approx. 24Mbps / FH: Approx. 17Mbps / HQ: Approx. 9Mbps / LP: Approx. 5Mbps; STD HQ: 9Mbps
- Audio Format : Dolby Digital 2ch Stereo, Dolby Digital Stereo Creator
- Dual Record : 5.3 megapixels 16:9 (3072 x 1728); 1.3 megapixels 16:9 (1536 x 864)
- Media Type : Memory Stick PRO Duo (Mark 2); Memory Stick PRO-HG Duo ; SD/ SDHC/ SDXC Memory Card (Class 4 or Higher)
- Mic Level Control : Yes (2steps)
- Microphone/Speaker : Built-in Zoom Microphone; Monoral Speaker
- Photo Capture from Movie : 2.1 megapixels 16:9 (1920x1080); 0.3 megapixels 4:3 (640x480); 0.2 megapixels pixels 16:9 (640x360)
- Still Image File Format : DCF Ver. 2.0 compatible, Exif Ver. 2.3 compatible, MPF Baseline compatible
- Still Image Max Effective Resolution : 5.3 megapixels
- Still Image Mode : JPEG
- Still Image Size 16:9 : Movie mode:5.3 megapixels 16:9 (3072x1728); Photo mode: 5.3 megapixels 16:9 (3072x1728)
- Video Actual (Pixel) : Approx.1310K pixels(16:9), Approx.980K pixels(4:3)
- Video Format : HD: MPEG4-AVC/H.264 AVCHD 2.0 format compatible; STD: MPEG2-PS
- Video Resolution : HD:1920x1080/,60i(FX,FH), 1440x1080/60i(HQ,LP); STD:720x480/60i
- Video Signal : NTSC color, EIA standards
- Wind Position : Yes(Off/On)
Focus Control
- AF Modes : Auto / Manual (Menu)
- Focus Area : Full range Focus
- Focus System : Contrast AF
Convenience Features
- Built-in USB Cable : Yes (USB Charge Available)
- Date / Time Stamp : Yes (Rec Date and Time, Camera info)
- Erase/Protect : Yes / Yes
- Fader Effect(s) : White / Black
- Manual / Auto Lens Cover : Manual
- Media/Battery Indicator : Yes (recordable time, free and used media space) / Yes (recordable time, remaining capacity)
- Multiple Language Display : English; Simplified English; Brazilian Portugese; Canadian French; Latin American Spanish
- One Touch Disc Burn : Yes (Menu)
- Quick On : Yes (Power On by LCD)
- Still Image Playback Options : Slide Show
- Video Playback Options : Highlight Playback (HD Movie Only); Highlight Playback Save and Share (Translate into STD quality); Highlight Scenario (Save/Playback/Erase); Highlight BGM (Preinstalled 4 music files, Music transfer)
- View & Index : Event
Weights and Measurements
- Dimensions (Approx.) : Approx.2 1/8inch x 2 1/4inch x 4 1/2inch (Approx. 51mm x 56mm x 114mm)
- Weight (Approx.) : Approx. 5.9oz (168g)
Service and Warranty Information
- Limited Warranty Term : Limited Warranty --- 1 Year Parts; 90 Days Labor
Camera
- Camera Type : Digital HD Video Camera Recorder
Optics/Lens
- Focal Length (35mm equivalent) : Movie Mode: 36mm - 1080mm (16:9),44mm-1320mm (4:3): Photo Mode: 36mm - 900mm (16:9), 44mm-1100mm (4:3)
- Aperture : F1.8-3.2
- Digital Zoom : 300x
- Extended Zoom : 30x
- Focal Distance : f = 2.5mm - 62.5mm; f =1/8inch - 2 1/2inch
- Lens Stabilization : SteadyShot image stabilization w/ Active Mode (wide to tele)
- Lens Type : Carl Zeiss Vario-Tessar Lens
- Minimum Focus Distance : Approx. 1cm (Wide), Approx. 80cm (Tele), Approx. 39cm (Tele Macro)
- Optical Zoom : 25x
- Steady Shot Mode:Active : 43.2mm - 1080mm
Exposure System
- Auto Iris Control : F1.8 - F10
- Backlight Compensation : Yes (Auto)
- D-Range Optimizer : Yes
- Exposure Settings : Auto
- Gain Control : Auto
- LOW LUX Mode : Yes
- Metering Modes : Multi-segment
- Minimum Illumination : Standard: 11 lux (1/60 Shutter Speed); Low Lux: 3 lux (1/30 Shutter Speed)
- Noise Reduction : Yes
- Scene Mode(s) : Auto/Night Scene/Sunrise & Sunset/Fireworks/Landscape/Portrait/Spotlight/Beach/Snow
- White Balance Mode : Auto / Onepush / Outdoor / Indoor
Advanced Features
- Face Detection : Yes
- Image Stabilization : SteadyShot image stabilization w/ Active mode (Wide to Tele)
- Intelligent Auto : Portrait/Baby/Tripod/Backlight/Landscape/Spotlight/Twilight/Macro/Low light
- Priority Setting (for Face Detection) : Auto / Child Priority / Adult Priority
- Smile Shutter technology : Dual Capture / Always On / Off
- x.v.Color : Yes
Power
- Power Consumption (in Operation) : HD: 2.1W; STD: 1.9W
- Battery Type : InfoLITHIUM with AccuPower Meter System (NP-FV30)
- Power Requirements : 6.8V/7.2 (battery pack); 8.4V (AC Adaptor)
- Power Consumption (in View Finder Operation) : HD:3.0W; STD:2.8W
Imaging Sensor
- Color Filter System : RGB primary color filters
- Effective Picture Resolution : Approx.1310K pixels(16:9)
- Imaging Sensor : 1/5.8" (3.1mm) Back-illuminated Exmor R CMOS Sensor
- Pixel Gross : Approx.1500K pixels
- Processor : BIONZ Image processor
LCD Display
- Angle Adjustment : Opening Angle: max. 90 deg., Turning Angle: max. 270 deg.
- Brightness Control : Yes (Menu)
- Coverage : 1
- Grid Display : Guide Frame
- LCD Type : 2.7" Clear Photo LCD(TM) display (230K) Wide(16:9)
Drive System
- Shutter Speeds : Self-timer: Approx. 10sec. (Still Image); Shutter Speed (Standard): 1/60 - 1/10000; Shutter Speed Auto Control Range: 1/8 - 1/10000; Scene Selection: 1/8 - 1/10000; LOW LUX: 1/30 - 1/10000
- Drive Mode : Photo Mode: Single-shot / Self-timer
- Self-timer : 10sec.(Still Image)
Interface
- SD Output : Composite Video Out(A/V connecting cable(supplied)
- Remote Jack : Integrated into A/V Remote terminal
- A/V Remote Terminal : Video / Audio / Remote
- BRAVIA Sync : Yes
- DC IN : Yes
- HD Output : HDMI Out (mini) (sold separately)
- HDMI Terminal : Yes (mini)
- Memory Card Slot : Memory Stick PRO Duo and SD/ SDHC/ SDXC media compatible
- PhotoTV HD : Yes
- USB Port(s) : TypeA, mini-AB/USB2.0 Hi-speed (mass-storage/MTP)
Software
- Supplied Software : PC: PlayMemories Home Lite (built-in; for PC only); PlayMemories Home (by download); Music Transfer(by download); MAC:Music Transfer(by download); PlayMemories Online Uploader(by download)
- Operating System Compatibility : Windows XP SP3 * /Windows Vista SP2 ** /Windows7 * 64-bit editions and Starter (Edition) are not supported. The Windows Image Mastering API (IMAPI) Ver. 2.0 or later is required to use the function for creating discs. ** Starter (Edition) are not supported. Standard installation is required. Operation is not assured if the above OS has been upgraded or in a multi-boot environment.
In the Box
- Power Cord (1)
- operating guide (1)
- Rechargeable Battery Pack (NP-FV30) (1)
- A/V Connecting Cable (1)
- AC adaptor (1)
- USB Connection Support Cable (1)
