Performance in Manual Mode
| Power Ratio |
Guide Number (ISO 100m) |
Flash Speed |
| |
|
|
| 1/1 |
16 |
1/200sec. |
| 1/2 |
11 |
1/1000sec. |
| 1/4 |
8 |
1/2000sec. |
| 1/8 |
5.6 |
1/4000sec. |
| 1/16 |
4 |
1/8000sec. |
| 1/32 |
2.8 |
1/10000sec. |
| 1/64 |
2 |
1/20000sec. |
| 1/128 |
1.4 |
1/40000sec. |
| 1/256 |
1 |
1/60000sec. |
|
|
Shooting Distance (ISO 100m) (m)
| Power Ratio |
f/stop |
| |
22 |
16 |
11 |
8 |
5.6 |
4 |
2.8 |
2 |
1.4 |
| 1/1 |
0.7 |
1 |
1.4 |
2 |
2.8 |
4 |
5.6 |
8 |
11 |
| 1/2 |
|
0.7 |
1 |
1.4 |
2 |
2.8 |
4 |
5.6 |
8 |
| 1/4 |
|
|
0.7 |
1 |
1.4 |
2 |
2.8 |
4 |
5.6 |
| 1/8 |
|
|
|
0.7 |
1 |
1.4 |
2 |
2.8 |
4 |
| 1/16 |
|
|
|
|
0.7 |
1 |
1.4 |
2 |
2.8 |
| 1/32 |
|
|
|
|
|
0.7 |
1 |
1.4 |
2 |
| 1/64 |
|
|
|
|
|
|
0.7 |
1 |
1.4 |
| 1/128 |
|
|
|
|
|
|
|
0.7 |
1 |
| 1/256 |
|
|
|
|
|
|
|
|
0.7 |
|

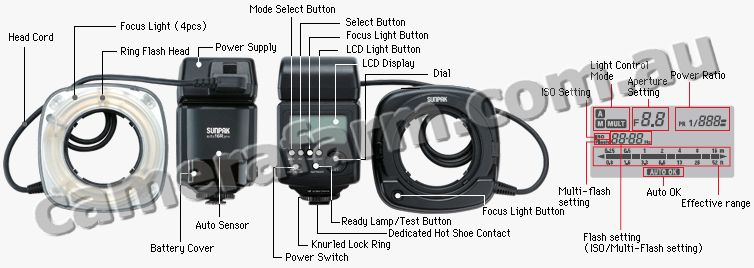

Description of Parts & LCD Display
Boasts the largest Guide Number for ring ashes in this class:16
Very ne light control available through a power ratio from Full to 1/256. Provides ample support for sophisticated macro shots where you want to capture nuances accurately by giving you a very ne ash.
Compatible with various digital SLR and 35mm lm SLR cameras. *
Whether shooting macro shots or portraits, you can achieve a variety of expressions with the flash auto in addition to
the manual mode, which provides a uniform amount of light with no unevenness.
* Not compatible with Sony -series cameras.

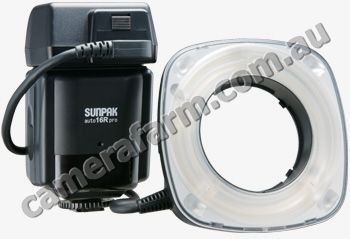

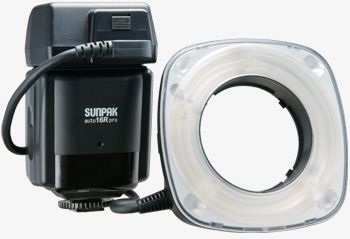

You can achieve a variety of lighting results in your shooting
 |
 |
With the auto16R pro as your main ash, you can use it in combination with the digital slave unit DSU-01* for manual ring of the PZ42X or PZ40X. Or with the PZ42X or PZ40X as your main ash, you can use the auto16R pro with the digital slave unit DSU-01.
*Optional. |
Circular ash tube
Using a clip-on ash. |
Using the auto16R pro. |
Some unique characteristics are its special softness and sense of
transparency, because it can project an even amount of light across the entire surface. It will not create shadows in the background, even at close distances. |
Focus light
Lighting-up the focus lights. |
There are four compact, white LED lights which can provide autofocus assit or can be used as a modeling lamp for manual focusing. |
Can support up to 77mm lenses.
Comes with adapter rings (58mm, 62mm, 72mm) standard.
 |
|
| Guide Number (ISO 100-m) |
116 |
| Flash Control Mode |
Manual (Power Ratio, Multi), Flash Auto |
| Compatible Cameras |
Digital and lm SLR cameras. |
| Wireless Function |
- |
| Recycling Time |
*Full flashing |
Alkaline
Battery |
4-AA approx. 8 sec. |
Ni-MH
Battery |
4-AA approx. 7.5 sec. |
| No. of Flashes |
*Full flashing |
Alkaline
Battery |
4-AA approx. 100 |
Ni-MH
Battery |
4-AA approx. 120 |
Auto Effective Range
(Focal Length at 35mm) |
Flash Auto 0.78m |
| Power Ratio |
FULL,1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256 |
| Angle of Coverage |
8080 |
| Effective Range of AF Assist Light |
- |
| Flash Speed |
Approx. 1/2001/60,000 sec. |
| Bounce Flash |
- |
| Wide Panel |
- |
Zoom Position Display
(switch type) |
- |
Dimensions
(H*W*D) (w/o Shoe) |
Ring Flash Head: Approx. 120x120x32mm / 4.8x4.8x1.3in (excl. cord)
Power Supplier: Approx. 130x75x65mm / 5.2x3x2.6in |
| Weight (w/o Battery) |
Ring Flash Head: Approx. 150g / 47.3oz
Power Supply: Approx. 300g / 10.5oz |
| Accessory |
Adapter ring (58, 62, 72mm) |
| EAN (maker code 4960436) |
023973 |
|
