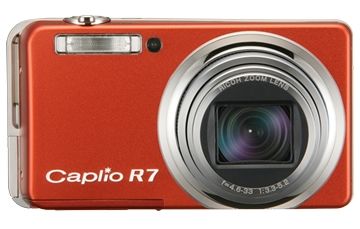

Caplio R7
|
Outline of product
|
|
|
* Lens focal lengths described in this web site are values converted into those for a 35 mm camera equivalent.
* Colors of products and photographs may differ slightly from actual colors due to website restraints. |
|
|
Optical 7.1x zoom in a slim 20.6mm body. |
|
Introducing a new standard in digital photography: the wide-angle 28-200mm optical zoom lens.
At wide-angle 28mm you get a dynamic view of nature. At 200mm you can zoom in on each detail. No matter where you're standing, the Caplio R7's optical 7.1x zoom lens brings an amazing range of scenes within your reach.
|
Smooth Imaging Engine III gives new definition to beauty.
|
Less Image noise in high sensitivity shooting. |
|
|
The superior image processing performance of Ricohs Smooth Imaging Engine III is revealed most clearly in high sensitivity shooting. Your pictures have less image noise without a sacrifice in resolution. In other words, you get smooth, clear images and sharp lines. In combination with gradation and color tone adjustments, this advanced image processing delivers natural color reproduction. Result? You capture what you see.
|
|
| Item |
Descript ion |
| CCD |
Effective 8.15 million pixels (total 8.29 million pixels), 1/2.5-inch primary-color CCD |
| Lens |
| Focal length: |
f4.6-33mm (equivalent to 28-200mm for 35mm cameras. When setting Step Zoom, offers up to seven fixed steps: 28mm, 35mm, 50mm, 85mm, 105mm, 135mm, and 200mm)
|
Aperture (F value): F 3.3 (Wide-angle)-5.2 (Telephoto)
|
| Vibration Correction Function |
CCD shift method |
| Zoom |
Optical 7.1x zoom (equivalent to 28-200mm for 35mm film cameras)
Digital zoom: 4.8x, maximum: 34.1x(equivalent to 960mm) in combination with optical zoom.
Auto Resize zoom: 5.1x* 1, maximum: 36.2x * 1(equivalent to 1010mm) in combination with optical zoom. |
| Range |
From lens tip: approx. 30cm - infinity (Wide), approx. 1.0m - infinity (Telephoto) |
| Macro range |
From lens tip: approx. 1cm - infinity (Wide), approx. 25cm - infinity (Telephoto) |
| Shutter speed |
| Still |
8, 4, 2, 1-1/2000 sec. |
| Movie |
1/30-1/ 2000 sec. |
|
| Resolution |
| Still |
3264 x 2448, 3264 x 2176, 2592 x 1944, 2048 x 1536, 1280 x 960, 640 x 480 |
| Text |
3264 x 2448, 2048 x 1536 |
| Movie |
640 x 480, 320 x 240 |
|
| Picture mode* 2 |
Fine, Normal |
| ISO sensitivity (standard output sensitivity) |
AUTO, AUTO-HI, ISO64 / ISO100 / ISO200 / ISO400 / ISO800 / ISO1600 |
| Flash |
Flash Off /Auto / Red-eye Flash / Flash On / Flash Synchro / Sof t Flash
Distance* 3 Approx. 20cm-3.0m (W), 25cm-2.0m (T) ( ISO auto ) |
| Focus |
Multi AF, Spot AF, Manual Focus, Fixed Focus (Snap), infinity (AF auxiliary light) |
| Exposure adjustment |
TTL-CCD metering method: Mult i (256 segments), Center Weight, Spot |
| Exposure compensation |
Manual compensation (+2.0 - -2.0 EV in 1/3 EV steps), Auto-bracket (-0.5 EV, 0,+0.5 EV)
|
| White balance |
Auto/Fixed (Outdoors, Cloudy, Incandescent Lamp, Incandescent Lamp2, Fluorescent Lamp, manual settings) / White Balance Bracket |
| Recording media |
SD Memory CardTM (32/64/128/256/512MB/1GB/2GB), SDHC Memory CardTM (4GB) Multi Media CardTM , internal memory 24MB |
| Storage capacity* 4 (No.of pictures) (Internal 24MB Memory) |
| Still |
3264 x 2448 (Fine: 7, Normal: 13), 3264 x 2176 (Fine: 8), 2592 x 1944 (Normal: 21), 2048 x 1536 (Normal: 31), 1280 x 960 (Normal: 58), 640 x 480 (Normal: 219) |
|
| Storage capacity (time)* 5( internal 24MB memory) |
| Movie |
36 seconds (640 x 480: 15 frames/sec.), 70 seconds (320 x 240: 15 frames/sec.), 18 seconds (640 x 480: 30 frames/sec.), 36 seconds (320 x 240: 30 frames/sec.) |
|
| Storage data capacity (file sizes) |
| Still |
3264 x 2448 F: 2.90MB/Screen N: 1.67MB/Screen, 3264 x 2176 F: 2.58MB/Screen, 2592 x 1944 N: 1.07MB/Screen, 2048 x 1536 N: 680KB/Screen, 1280 x 960 N: 365KB/Screen, 640 x 480 N: 95KB/Screen (sizes are approximate) |
|
| Recording mode |
| Still mode |
(Still, Continuous, S-Continuous, M-Continuous) |
| Scene mode |
(Portrait, Face Recognition, Sports, Landscape, Nightscape, High-sensitivity, Zoom Macro, B&W, Sepia, Skew Correction, Text, Movie) My Setting 1, 2s |
|
| Recording format |
| Still |
JPEG (Exif ver. 2.21) DCF* 6 compliant |
| Text |
JPEG (Exif ver. 2.21) DCF* 6 compliant |
| Movie |
AVI (Open DML Motion JPEG format compliant) |
|
| LCD monitor |
2.7" transparent amorphous silicon TFT LCD (approx. 230,000 pixels) |
| Self timer |
Delay: 10sec., 2 sec. |
| Interval timer |
Shoot ing interval: 5 sec. - 3 hours (5 sec. steps)* 7 |
| Other features |
Correct Contrast, Correct Tone, Color Bracket (CL-BKT), Record Dual Size |
| PC interface |
USB2.0 High-Speed : Mini B cable, mass storage device compatible * 8 |
| AV interface |
Audio out , video out |
| Video signal method |
NTSC /PAL |
| Dimensions (W x H x D) |
99.6 (W) x 55.0 (H) x 23.3mm (20.6 at thinnest part) (D) (excluding project ions) |
| Weight |
Approx. 135g (without battery, SD memory card, hand strap)
Accessories approx. 26g (rechargeable battery, hand strap) |
| Power source |
Rechargeable bat tery (DB-70) x 1 |
| Shooting capacity* 9 |
Approx. 300 pictures (using DB-70) |
| Operating temperature |
0C - 40C |
| * 1 |
VGA image size. |
| * 2 |
3264 x 2176 in Fine only. 2592 x 1944, 2048 x 1536, 1280 x 960, 640 x 480 for Normal only. |
| * 3 |
When flash range is set at ISO auto. |
| * 4 |
Figures are estimates. |
| * 5 |
Movie recording capacity: max. 90 continuous minutes or 4GB single file size. |
| * 6 |
DCF is the abbreviation of JEITA Standard "Design rule for Camera Files system" ( It does not guarantee perfect inter-camera compatibili ty). |
| * 7 |
With flash off. |
| * 8 |
Mass storage mode is compatible with Windows Me/2000/XP/Vista, Mac OS9.0-9.2.2 and Mac OSX 10.1.2- 10.4.9. It is not compatible with Windows 98SE. |
| * 9 |
Shooting capacity was measured using CIPA-standard parameters. This is only an estimate. Performance may vary according to usage conditions. |
|
|
