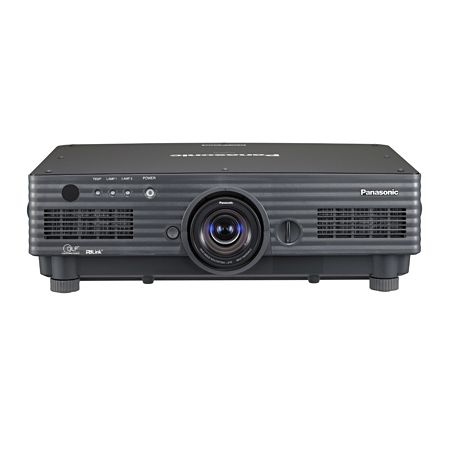

Panasonic PT-DW5100E DLP Installation Projector - XGA, 5500 Lumens, 2000:1

Product May Vary From Image
Part No:
76345
Brand:
Panasonic  Web Site
Manuf No:
PT-DW5100E

PTDW5100E
Ship Weight:
18 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
PT-DW5100
5500 ANSI Lumens WXGA DLP Projector with BriteOptic Dual-Lamp Technology

Wide screen and high-power 5,500-lm brightness
System daylight view
Vivid color control
Full 10-bit picture processing
New IP conversion circuit
More effective noise reduction
Progressive cinema scan (3/2 Pulldown)
3D color management system
Dynamic sharpness control

Display Type .65-inch diagonal DMD x 1, 15:9
Native Resolution 1280 x 768
Brightness (ANSI lumens) 5,500
Contrast Ratio Up to 2,000:1 (full on/full off, contrast mode: high)
Lamp Type 300W UHM x 2
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
YPBPR Compatibility 480i, 576i, 480p, 576p, 720/50p, 720/60p, 1080/50i, 1080/50p, 1080/60i, 1080/60p
TM Dual-Lamp System','0');">BriteOpticTM Dual-Lamp System Yes
Dimensions (H x W x D) 69/16'' x 207/8'' x 167/8''
Weight 30.6 lbs

Specifications

System
Device
Pixels
Lamp
Brightness (normal lamp)
Contrast ratio
Resolution
RGB
Video
Lens
PT-DW5100U
PT-DW5100UL

Screen size
Lens shift
RGB input scanning
frequency
Component signal
Video signal

Terminals
VIDEO IN
S-VIDEO IN
RGB1/YPBPR IN
RGB2 IN
DVI-D IN
RS-232C IN
RS-232C OUT
REMOTE 1 IN
REMOTE 1 OUT
REMOTE 2 IN
LAN

Keystone correction range
Installation
Power cord length
Power supply
Power consumption
Dimensions (W x H x D)
Weight
PT-DW5100U
PT-DW5100UL
Operating temperature
Operating humidity
Supplied accessories
DLP® Projection system
0.65" (diagonal) DLP® chip 15:9
983,040 (1,280 x 768) x 1 total of 983,040 pixels
300 W UHM™ lamp x 2 (Dual Lamp System)
5,500 lumens (dual lamp, high power mode)
2,000:1 (full on/full off, contrast mode: high)
1,280 x 768 pixels
560 TV lines
Powered zoom/focus lens,
Supplied lens: (2.0-2.6:1)
F = 1.7-2.0, f = 25.6-33.8 mm
Optional powered zoom/focus lenses

50 - 600 inches
Vertical (powered), horizontal (manual)
fH 15-91 kHz, fV 50-85 Hz
Dot clock 150 MHz or lower
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i,
1080/60p 1080/50i, 1080/50p
NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM

BNC
Mini DIN 4-pin
BNC x 5
D-sub HD 15-pin
24pin DVI 1.0 compliant, HDCP compatible, for single link
D-sub 9-pin female
D-sub 9-pin male
M3 jack
M3 jack
D-sub 9-pin female (parallel)
RJ-45x1, compliant with PJLink™ (class 1), 10Base-T/100Base-TX

±30° (with standard lens)
Front/rear, ceiling/floor
9.9' (3.0m)
120 V AC, 60 Hz
770 W (770 VA) (10 W during standby mode with fan stopped)
20-7/8' x 6-9/16' x 16-7/8' (530 x 167 x 429 mm) (without lens)
30.6 lbs (13.9 kg) with supplied lens
28.9 lbs (13.1 kg) without lens
32 -113 °F (0 -45 °C)
20-80% (no condensation)
Power cord, Wireless/wired remote control unit,
AA Batteries (x 2) for remote control


Product Warranty


1 Year Return to Base
