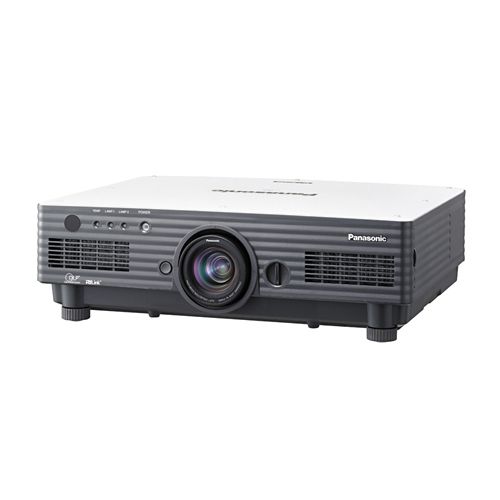

Panasonic PT-D4000E DLP Installation Projector - XGA, 4000 Lumens, 1600:1

Product May Vary From Image
Part No:
76344
Brand:
Panasonic  Web Site
Manuf No:
PT-D4000E

PTD4000E
Ship Weight:
18 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
PT-D4000
4000 ANSI Lumens XGA DLP Projector with BriteOptic Dual-Lamp Technology

Ultra bright 4,000-lm
More effective noise reduction
Dynamic sharpness control
Progressive cinema scan (3/2 Pulldown)
New IP conversion circuit
Full 10-bit picture processing
3D color management system
System daylight view



Display Type .7-inch diagonal DMD x 1, 4:3
Native Resolution 1024 x 768
Brightness (ANSI lumens) 4,000
Contrast Ratio Up to 1,600:1 (full on/full off, contrast mode: high)
Lamp Type 210W UHM x 2
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
YPBPR Compatibility 480i, 576i, 480p, 576p, 720/50p, 720/60p, 1080/50i, 1080/50p, 1080/60i, 1080/60p
TM Dual-Lamp System','0');">BriteOpticTM Dual-Lamp System Yes
Dimensions (H x W x D) 69/16'' x 207/8'' x 173/8''
Weight 30.2 lbs

Specifications

System
Device
Pixels
Lamp
Brightness (normal lamp)
Contrast ratio
Resolution
Lens


Screen size
Lens shift
RGB input scanning
frequency
Component signal
Video signal


Terminals
VIDEO IN
S-VIDEO IN
RGB1/YPBPR IN
RGB2 IN
DVI-D IN
RS-232C IN
RS-232C OUT
REMOTE 1 IN
REMOTE 1 OUT
REMOTE 2 IN
LAN

Keystone correction range
Installation
Power cord length
Power supply
Power consumption
Dimensions (W x H x D)
Weight
Operating temperature
Operating humidity
Supplied accessories
DLP® Projection system
0.7" (diagonal) DLP® chip 4:3
786,432 (1,024 x 768) x 1 total of 786,432 pixels
210 W UHM™ lamp x 2 (Dual Lamp System)
4,000 lumens (dual lamp, high power mode)
1,600:1 (full on/full off, contrast mode: high)
1,024 x 768 pixels
Powered zoom/focus lens,
Supplied lens: (1.8-2.4:1)
F = 1.7-2.0, f = 25.6-33.8 mm
50 - 600 inches
Vertical (powered), horizontal (manual)
fH 15-91 kHz, fV 50-85 Hz
Dot clock 150 MHz or lower
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i,
1080/60p 1080/50i, 1080/50p
NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM


BNC
Mini DIN 4-pin
BNC x 5
D-sub HD 15-pin
24pin DVI 1.0 compliant, HDCP compatible, for single link
D-sub 9-pin female
D-sub 9-pin male
M3 jack
M3 jack
D-sub 9-pin female (parallel)
RJ-45x1, compliant with PJLink™ (class 1), 10Base-T/100Base-TX

±30° (with standard lens)
Front/rear, ceiling/floor
9.10' (3.0m)
120 V AC, 50 / 60 Hz
540 W (540 VA) (15 W during standby mode with fan stopped)
20-7/8' x 6-9/16' x 17-3/8' (530 x 167 x 441 mm)
30.2 lbs (13.7 kg) with supplied lens
32 -113 °F (0 -45 °C)
20-80% (no condensation)
Power cord, Wireless/wired remote control unit,
AA Batteries (x 2) for remote control, Wire rope



Product Warranty


1 Year Return to Base
