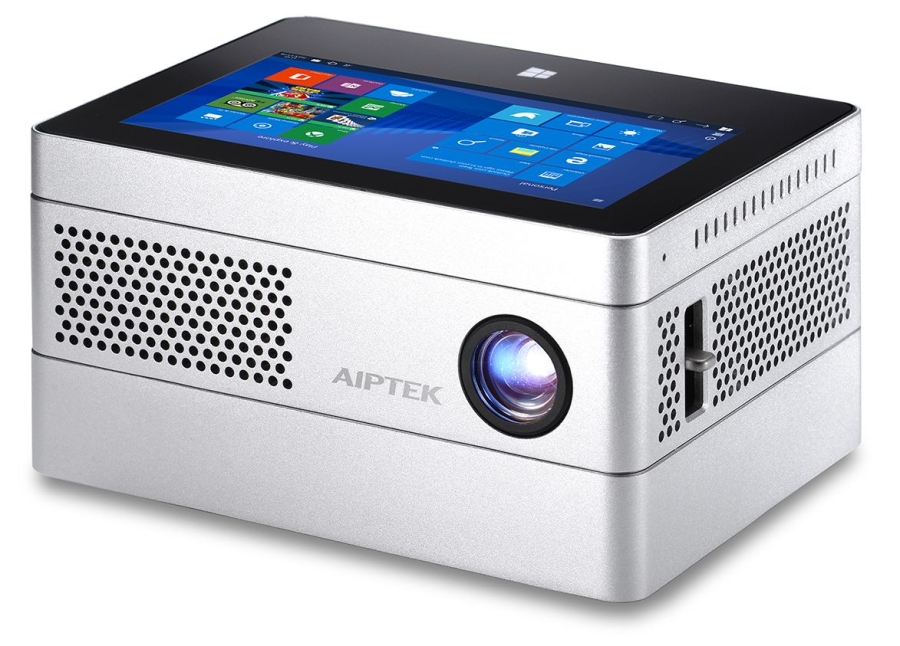

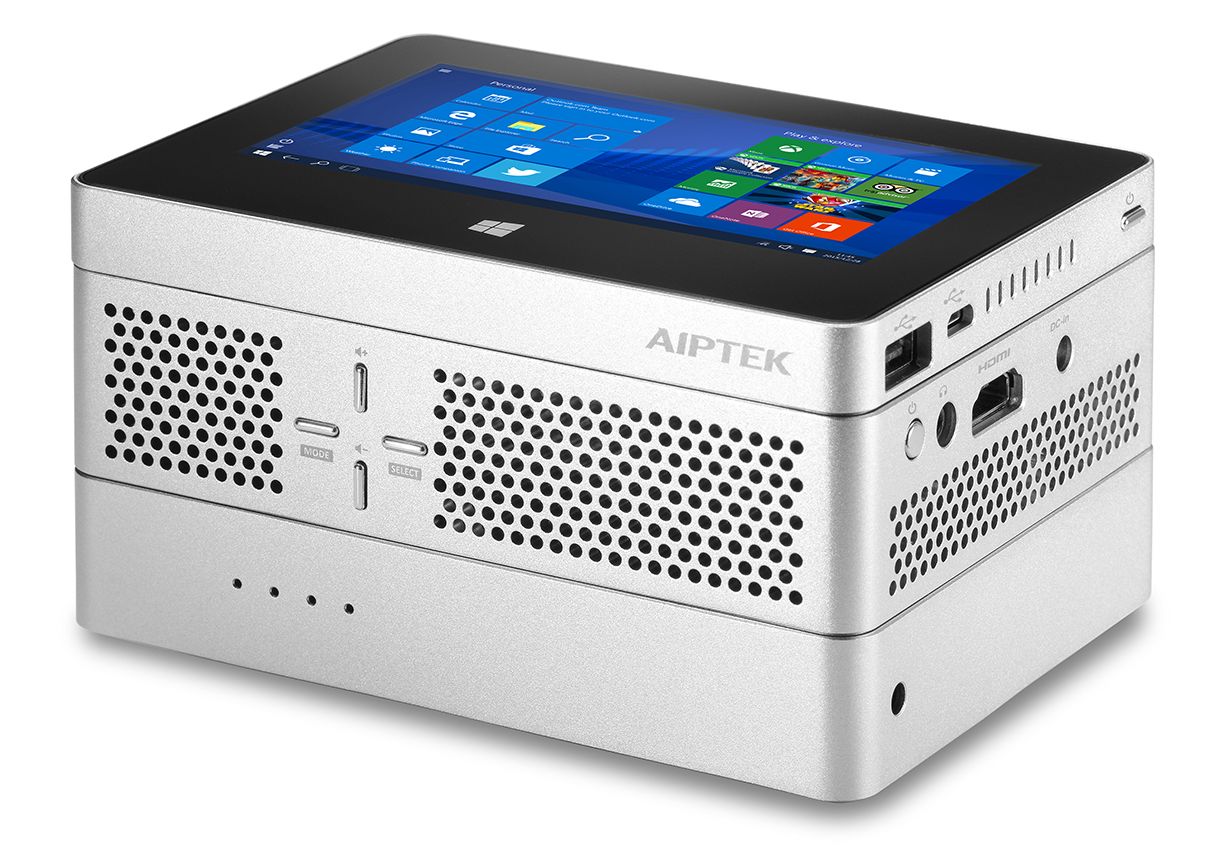

Aiptek iBeamBLOCK L400 Deluxe Computing Projection System -
Silver
The „iBeamBlock“ is the first stackable HD projector with Windows 10 tablet
and power bank for mobile usage. Its three components are stacked together
cordlessly and hold together due to magnetic pogo-pins. If required, the
projector can also be used as standalone device. It convinces with 400 lumens of
brightness, an automatically keystone correction, integrated speakers and RGB
LEDs with DLP technology. Particular useful for business applications: the
“iBeamBlock” provides crystal clear presentations of Excel, Word, Power Point
and PDF documents with an image diagonal of up to 120“ (305 cm) and a resolution
of 1280x720 pixels. The projector is equipped with an audio port, DC-in and four
menu keys for an easy control as well as a HDMI interface to connect external
end devices. Full Configuration System
Thanks to the Windows 10 tablet, which has a Wi-Fi, Bluetooth, USB, micro USB
as well as a micro SD card interface, data can be transferred quickly and
easily. Furthermore, the powerful 4.5 tablet with multi-touch IPS LCD acts as
control unit. Thereby the Intel Z3735F Quad Core processor with 1.33 GHz and 2
GB RAM ensures a smooth operation.
With a total weight of less than 1 kg and dimensions of only 125x95x67 mm
(LxWxH), the compact system fits in every briefcase and is therefore perfect for
presentations during business trips. But the iBeamBLOCK also performs perfectly
at home during movie nights or photo shows.
Feature
-
Stackable 3 Component Design
-
Win10 PC Tablet for Business Usage
-
Projection of a 100 Display at 2.7 meter distance
-
400 Lumens of Brightness, HD (1280x720) resolution
-
Crystal Clear in Excel, Word, PowerPoint and PDF
Presentations
Specifications
| Optical Technology |
DLP |
| Light Source |
RGB LED |
| Native Resolution |
1280x720 Pixel (720P) |
| LED Lifetime |
Up to20.000 h |
| Contrast |
500:1 |
| Throw Ratio |
1.2 |
| Aspect Ratio |
16:9 |
| Offset |
100 % |
| Projection Image Size (Diagonal) |
51 cm ~ 305 cm (20 ~ 120 ) |
| Projection Distance |
50 cm ~ 319 cm (19.6 ~ 125 ) |
| Brightness |
Up to 400 sensual lumens |
| Focus |
Manual |
| Keystone |
Auto / Manual |
| Speaker |
Built-in stereo speaker (1W*2) |
| Interfaces |
HDMI,Audio jack, Pogo Pins |
| Projection Source |
HDMI, PAD unit |
| Power Adapter |
100~240V AC input ,50~60Hz,
DC IN:12V/3.5A |
| Power Consumption |
36W |
| Colour |
Silver |
| Dimensions (L*W*H) |
125*95*32 mm |
| Weight |
330g |
|
|
| Product Features PAD Unit (Tablet) |
| CPU |
Intel Z3735F Quad Core 1.33Ghz
CPU |
| Display |
4.5 Multi-touch LCD |
| OS |
Win10 |
| Internal Memory |
2GB DDR/32GB Flash |
| External Memory |
micro SD slot support |
| Wireless |
802.11b/g/n, BT4.0 |
| Interfaces |
Pogopins, USB 2.0, microUSB 2.0 (OTG), microSD slot |
| Colour |
Silver |
| Dimensions (L*W*H) |
125*95*12 mm |
| Weight |
165g |
|
|
| Product Features PB-120 (Batterie) |
| DC-in |
DC 12V/3.5A |
| DC-out |
USB: 5V/2A
Pogopin: 11V/3A |
| Battery type |
Integrated, 3.7V 13200mAH, Li-Polymer, rechargeable |
| Battery Power |
Up to120 Min Projection |
| Colour |
Silver |
| Dimensions (L*W*H) |
125*95*23 mm |
| Weight |
395g |
Package Content
- iBB L400 (Projector)
- iBB PAD-45D (Tablet)
- iBB PB-120 (Power Bank)
- HDMI cable
- Power Adapter
- AC cable(EU+US)
- Manual
