Panasonic PT-VW431D LCD Projector - 1280x800, 4300 Lumens, 3500;1, 4000Hrs, VGA, HDMI, Speaker

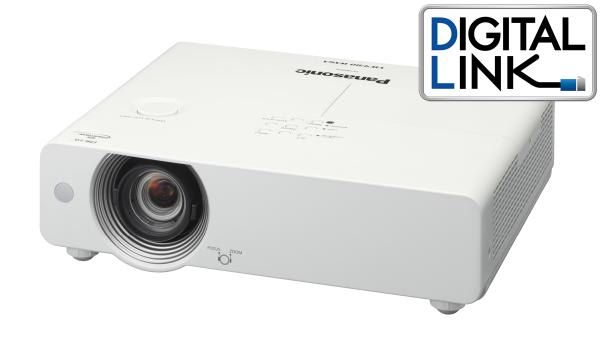

Product May Vary From Image
Part No:
210779
Brand:
Panasonic  Web Site
Manuf No:
PT-VW431DEA

PTVW431DEA
Ship Weight:
8.8 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
PT-VW431D

LCD Projector PT-VW431D Advanced portable projector for ceiling-mounted and other permanent installations.

Advanced portable projector for ceiling-mounted and other permanent installations.

DIGITAL LINK: All-in-One Connectivity

High-quality Digital Transmission over a Single Cable

DIGITAL LINK Compatible with Crestron, Extron, and AMX system configurations

Cost-effective simple cabling for up to 100 m (328 ft)


Easy Recycling







  • No halogenated flame retardants are used in the cabinet.
  • Non-coated cabinet for easy recycling.
  • Lead-free glass is used for the lens.

Low Power Consumption

  • Lamp power switching further reduces power consumption.
  • Standby power consumption of only 0.3 W* has been achieved.


RoHS Compliant


All Panasonic projectors comply with the standards of the RoHS Directive.

What is RoHS?

RoHS is the acronym for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, originated in the European Union and restricts the use of specific hazardous materials found in electrical and electronic products. All applicable products in the EU market after July 1, 2006 must pass RoHS compliance.

What are the restricted materials mandated under RoHS?

The substances banned under RoHS are lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (CrVI), polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE).

Why is RoHS compliance important

The restricted materials are hazardous to the environment and pollute landfills, and are dangerous in terms of occupational exposure during manufacturing and recycling.



Specifications:

Model PT-VW431D
Power supply 100-240 V AC, 50/60 Hz
Power consumption 365 W [0.3 W when standby mode set to Eco*1, 12.5 W when standby mode set to Network.
(19.7 W with DIGITAL LINK, 27.5 W when standby mode of sound set to ON.)]
LCD panel Panel size 15 mm (0.59 inches)diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lens 1.6x manual zoom (throw ratio: 1.18-1.90:1),
manual focus, F 1.60-2.12, f 15.28-24.62 mm
Lamp 280 W x 1,
lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours*2
Screen size (diagonal) 0.76-7.62 m (30-300 inch), 16:10 aspect ratio
Brightness*3 4,300 lm (lamp power: Normal)
Center-to-corner uniformity*3 85 %
Contrast*3 3,500:1 (full on/full off, lamp power: Normal, Iris: On)
Resolution 1,280 x 800 pixels*4
Scanning frequency HDMI/
DIGITAL LINK		 fH: 2580 kHz, fV: 2485 Hz, dot clock: 162 MHz or lower
RGB (analog) fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
YPBPR (YCBCR)
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical: +48 %
Keystone correction range Vertical: 30 (20 when Real-Time Keystone)
Installation Ceiling/floor, front/rear
Terminals HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/24p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),*5
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
COMPUTER IN 2 /
MONITOR OUT		 D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
VIDEO IN RCA pin x 1 (Composite VIDEO)
S-VIDEO IN Mini DIN 4-pin x 1 (S-VIDEO)
AUDIO IN RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
COMPUTER
AUDIO IN 1		 M3 x 1 (L-R x 1)
COMPUTER
AUDIO IN 2
(MIC IN)		 M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN/
DIGITAL LINK		 RJ-45 x 1 for network/DIGITAL LINK connection (Video, audio and control signals),
10Base-T/100Base-TX, compliant with PJLink (class 1),
Deep Color, compatible with HDCP
Built-in speaker 4 cm round shape x 1, output power: 10.0 W (monaural)
Noise level 37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
Cabinet materials Molded plastic
Dimensions (W x H x D) 379 x 107 x 305 mm (14.9 x 4.2 x 12.0)
(with legs at shortest position, not including protruding parts)
Weight Approximately 4.8 kg (10.6 lbs)
Operating temperature 0C-40C [32F-104F]*6
(less than 1,200 m [3,937 ft] above sea level, Fan control: OFF),
0C-30C [32F-86F]
(between 1,200 m and 2,000 m [3,937 ft and 6,562 ft] above sea level, Fan control: ON1),
0C-30C [32F-86F]
(between 2,000 m and 2,700 m [6,562 ft and 8,858 ft] above sea level, Fan control: ON2)
Operating humidity 20 %-80 % (no condensation)
Supplied accessories Power cord x 1*7, power cord holder x 1, wireless remote control unit,
batteries (AAA/R03/LR03 type x 2), carrying bag x 1, computer cable (1.8 m, for VGA) x 1,
software CD-ROM(Logo Transfer Software,Multi Projector Monitoring & Control Software)

Product Warranty


1 Year Return to Base
