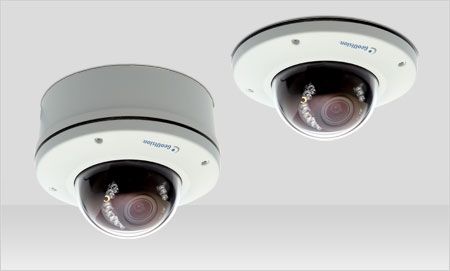

GeoVision GV-VD222D 2 Megapixel H.264 IR Vandal Proof IP Dome Camera - 1/2.5" Progressive Scan CMOS, Dual Video Streams From Two of H.264, MPEG4 And MJPEG, Built-in IR LED, Motion Detection - White

Product May Vary From Image
Part No:
177611
Brand:
Manuf No:
GV-VD222D-

GVVD222D
Ship Weight:
2 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
GV-VD220D, 221D, 222D, 223D, 2M H.264 IR Vandal Proof IP Dome

Features

  • 1/2.5" progressive scan CMOS
  • Dual video streams from two of H.264, MPEG4 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • IP66 compliant
  • 3-axis mechanism (pan / tilt / roll)
  • Removable IR-cut filter for Day/Night function
  • External microphone
  • Built-in IR LED
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Micro SD/SDHC Card Slot
  • DC12V / AC24V / PoE
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • 16 languages on Web interface

Models

Model Housing Cover
Cover Color Vandal Resistance
GV-VD220D Transparent cover IK10+
GV-VD221D Smoked cover IK10+
GV-VD222D Transparent cover IK7
GV-VD223D Smoked cover IK7

Active Tampering Alarm

Tampered


Focus Change


Camera Shift


Specifications


Camera

1/2.5" progressive scan CMOS

Image Sensor



Picture Elements

1920 (H) x 1080 (V)

Minimum Illumination

Color

1 Lux (1/30 sec), 0.5 Lux (1/5 sec)

B/W
IR ON

0 Lux

Shutter Speed

Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance

Automatic, Manual (2800K ~ 8500K)

Lens

Megapixel

Yes

Removable IR-cut filter for Day / Night function

Yes

Lens Type

Varifocal

Focal Length

2.7 ~ 9 mm

Maximum Aperture

F/1.3

Mount

14 mm

Angle of View

Diagonal

101  (W) ~ 32  (T)

Horizontal

88  (W) ~ 27.9  (T)

Vertical

49.7  (W) ~ 15.7  (T)

Operation

Focus

Manual (w / lock)

Zoom

Manual (w / lock)

Iris

DC drive

IR LED Quantity

15 IR LEDs

IR Distance

15 m / 50 ft (Max.)

Operation

Video Compression

H.264, MPEG4, MJPEG

Video Stream

Stream 1 from H.264 and MJPEG
Stream 2 from H.264, MPEG4 and MJPEG

Frame Rate

30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).

Image Setting

Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation

Audio Compression

G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later

Sensor Input

1 Input (Dry Contact)

Alarm Output

1 Digital Output (200mA 5V DC)

Video Resolution

Main Stream

4:3

1600 x 1200, 1280 x 960, 640 x 480, 320 x 240

16:9

1920 x 1080, 1280 x 720, 640 x 360, 448 x 252

5:4

1280 x 1024, 640 x 512, 320 x 256

Sub Stream

4:3

640 x 480, 320 x 240

16:9

640 x 360, 448 x 252

5:4

640 x 512, 320 x 256

Network

Interface

10/100 Ethernet

Ethernet Protocol

HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)

Mechanical

Lens Mounting

14 mm

Temperature Detector

Yes

Camera Angle Adjustment

Pan

0 ~ 60

Tilt

-10 ~ 90

Rotate

0 ~ 360

Connectors

Power

3-pin terminal block, PoE

Ethernet

RJ-45

Audio

1 In (RCA female for microphone)
1 Out (RCA female for speaker)

Digital I/O

I/O Wires

Auto Iris

DC drive

Local Storage

Micro SD/SDHC memory card slot

TV-Out

BNC connector (640 x 480).

General

Environment Temperature

-20 C ~ 50 C / 4 F ~ 122 F

Humidity

10% to 90% (no condensation)

Power Source

12V DC / 24V AC / PoE

Power Consumption

12 W (max. 1A at 12V DC)

Dimensions

Camera Body

165 x 125 mm / 6.49 x 4.92 in

Cable Length

1 m / 3.28 ft

Cable Diameter

16.7 mm / 0.66 in

Maximum Connector Diameter

16.7 mm / 0.66 in

Weight

1.7 kg / 3.75 lb

Protection Classification

IP66

Vandal Resistance

GV-220D / GV-221D

IK10+

GV-222D / GV-223D

IK7

Regulatory

CE, FCC, C-Tick, RoHS compliant

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management

Web-based configuration

Maintenance

Firmware upgrade through Web Browser or Utility

Access from Web Browser

Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm

Language

Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese

Applications

Network Storage

GV-NVR, GV-System

3G Mobile Phone

Built-in player for 3GPP / ISMA

Live Viewing

IE , Mobile Phone

CMS Server support

GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server


Product Warranty


2-year Manufact.
