Image Sensor |
Type |
1/2.33" (appox 7.76mm) CCD |
Effective Pixel |
Approx. 14.2 Mega-pixel |
Total Pixel |
Approx. 14.4 Mega-pixel |
Lens |
Focal Length |
Schneinder f = 4.9 ~ 24.5mm (35mm film equivalent: 27 ~ 135mm) |
F No. |
F3.5(W) ~ F5.9(T) |
Digital Zoom |
Still Image mode: 1.0X ~ 5.0X Play mode: 1.0X ~ 13.5X (depends on image size) |
Focusing |
Type |
TTL auto focus (Multi AF, Center AF, Face Detection AF, Smart Touch AF, Smart Face Recognition AF, One Touch Shooting) |
Range |
Normal: 80cm ~ infinity Macro: 5cm ~ 80cm (Wide), 50cm ~ 80cm (Tele) Auto Macro: 5cm ~ Infinity (Wide), 50cm ~ Infinity (Tele) |
Exposure |
Control |
Program AE |
Metering |
Multi, Spot, Centre Weighted, Face Detection AE |
Compensation |
2EV (1/3EV steps) |
ISO Equivalent |
Auto, 80, 100, 200, 400, 800, 1600, 3200 |
Flash |
Modes |
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red eye fix |
Range |
Wide: 0.3m ~ 3.4m (ISO AUTO), Tele: 0.5m ~ 2.0m (ISO AUTO) |
Recharging Time |
Approx. 4 sec. |
Storage |
Media |
Internal Memory: 30MB External Memory (Optional): Micro SD (up to 4GB guaranteed), Micro SDHC (up to 8GB guaranteed) |
Image Size |
14M: 4,320 x 3,240 pixels 12M: 4,000 x 3,000 pixels 8M: 3,264 x 2,448 pixels 5M: 2,560 x 1,920 pixels, 3M: 2,048 x 1,536 pixels 1M: 1,024 x 768 pixels 10MW: 4,320 x 2,432, 2MW: 1,920 x 1,080 pixels , 12MP: 4,320 x 2,880 |
File format |
Support DCF, EXIF 2.21, DPOF 1.1, PictBridge 1.0Still Image: JPEGMovie Clip: MP4 (Video: MPEG4.AVC / H.264, Audio: AAC) Audio file: WAV |
Interface |
Digital Output Connector |
USB 2.0, 20 pin connector |
Audio |
Microphone: MonoInternal Speaker: Mono |
Video Out |
AV: NTSC, PAL (user selectable), 20 pin connector HDMI 1.4: NTSC, PAL (user selectable), HDMI Type D |
DC power input |
4.2V 20 pin Connector |
Movie Clip |
Recording |
With Audio or without Audio or Zoom Mute (Zoom Mute on, off Option) (Max Recording time: 20 minutes), Size: 1,280 x 720 (30/15 fps) High Quality, 1,280 x 720 (30/15 fps) Standard Quality, 640 x 480 (30/15 fps), 320 x 240 (30/15 fps) (1) |
Effect |
Colour Style: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom |
Edit |
Pause during recording, Still Image Capture, Time Trimming |
Image Stabilization |
|
Dual IS (OIS + DIS) |
Sharpness |
|
Soft+, Soft, Normal, Vivid, Vivid+ |
Still Image |
Shooting |
Smart Auto, Auto, Smart Movie, Movie, Program, Dual IS, Scene (3) |
Effect |
Image Adjust: Sharpness, Contrast, Brightness, Saturation, ACB Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB Smart Filter: Miniature, Vignetting, Fish Eye1, Fish Eye2, DeFog, Sketch Effect |
Edit |
Image Edit: Resize, Rotate, Trimming Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB Smart Filter: Miniature, Vignetting, Fish Eye1, Fish Eye2 ,DeFog, Sketch EffectImage Adjust: Face Retouch (Level 1, 2, 3), Red eye fix, Snow, Mosaic, Highlight, Brightness, Contrast, Saturation, Red Eye Fix, ACB, Add Noise |
Date Imprinting |
|
Date & Time, Date, Off (user selectable) |
Power Source |
|
Rechargeable battery: SLB07 Adaptor: 20 pin AdaptorConnector Type: 20 pin |
Physical Specification |

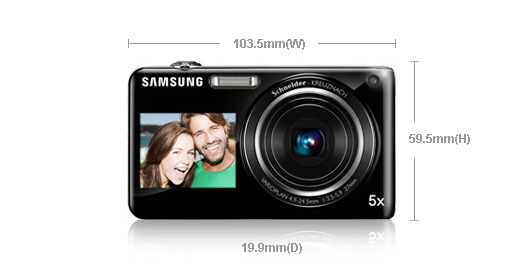

Dimensions (WxHxD) |
103.5 x 59.5 x 19.9mm |
Weight |
147.2g (without battery and card) |
Operating Temperature |
0 ~ 40C |
Operationg Humidity |
5 ~ 85% |
System Requirement for 720P H.264 Movie |
For Windows |
Intel Pentium 4, 3.2GHz or later / AMD Athelon 64FX, 2.6GHz or later Minimum 512MB RAM (1GB) Windows XP / VISTA / 7 250MB (Over 1GB recommanded) CD-ROM DriveUSB 2.0 Microsoft 9.0c or later Over 1,024 x 768 pixels, 16 bit colour monitor or later |
