Features and specifications are subject to change without prior notification.
|
Usage note (1) OIS (Optical Image Stabilization), DIS (Digital Image Stabilization) (2) Smart: Portrait, Night Portrait, Night, Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Colour, Macro Portrait, Natural Green, Blue Sky, Sunset Scene: Beauty Shot, Frame Guide, Night, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow Continuous: Single, Continuous, AEB, Motion Capture Self-timer: Off, 2 seconds, 10 seconds, Double, Motion timer (3) Included items may vary depending on sales region.
|
Image Sensor |
Type |
1 / 2.3 (Approx. 7.76mm) CCD |
Effective Pixel |
Approx. 14.2 Mega pixel |
Total Pixel |
Approx. 14.4 Mega pixel |
Lens |
Focal Length |
Samsung 7X Zoom Lens f = 5.6 ~ 39.2mm (35mm film equivalent: 31 ~ 217mm) |
F No. |
F3.3 (W) ~ F5.5 (T) |
Digital Zoom |
Still Image mode: 1.0X ~ 5.0X Play mode: 1.0X ~ 13.5X (depends on image size) |
Focusing |
Type |
TTL auto focus (Multi AF, Centre AF, Face Detection AF, Tracking AF) |
Range |
Normal: 80cm ~ infinity, 150cm ~ Infinity (Tele) Macro: 5cm ~ 80cm (Wide), 70cm ~ 150cm (Tele) Auto Macro: 5cm ~ Infinity (Wide), 70cm ~ Infinity (Tele) |
Exposure |
Control |
Program AE |
Metering |
Multi, Spot, Centre Weighted, Face Detection AE |
Compensation |
2EV (1 / 3EV steps) |
ISO Equivalent |
Auto, 80, 100, 200, 400, 800, 1600, 3,200 |
Flash |
Modes |
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix |
Range |
Wide: 0.4m ~ 3.0m, Tele: 0.7m ~ 2.0m (ISO AUTO) |
Recharging Time |
Approx. 4 seconds |
Storage |
Media |
Internal memory: 90MB External memory: SD Card (up to 2GB guaranteed) SDHC (up to 8GB guaranteed) |
Image Size |
14M: 4,320 x 3,240, 12M: 4,000 x 3,000, 12MP: 4,272 x 2,848,10MW: 4,224 x 2,376, 8M: 3,264 x 2,448, 5M: 2,592 x 1,944, 3M: 2,048 x 1,536, 1M: 1,024 x 768 |
File format |
DCF, EXIF 2.21, DPOF 1.1, PictBridge 1.0 Still Image: JPEG Movie Clip: MP4 (Video: MPEG4. AVC / H. 264, Audio: AAC) Audio file: WAV |
Interface |
Digital Output Connector |
USB 2.0 |
Audio |
Microphone: MonoInternal Speaker: Mono |
Video Out |
AV: NTSC, PAL (user selectable) |
DC power input |
4.2V |
Movie Clip |
Recording |
*7X Optical Zoom enable Mode: Smart Movie, Movie *Smart Movie: Landscape, Blue Sky, Natual Green, Sunset Size: High Quality - 1,280 x 720 (30fps & 15fps) Standard Quality - 640 x 480 (30fps & 15fps), 320 x 240 (60fps & 30fps & 15fps) *Due to the noise while optical zooming, user can select to record sound or not. ( Voice On / Zoom Mute / Off ) *With Audio or without Audio (Max Recording time: 20 minutes) |
Effect |
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom Setting: OIS On / Off |
Edit |
Pause during Recording and Playing, Still Image Capture, Time Trimming |
Image Stabilization |
|
Dual IS (OIS + DIS) |
Sharpness |
|
Soft+, Soft, Normal, Vivid, Vivid+ |
Still Image |
Shooting |
Mode : Smart Auto, Program, Dual IS, Scene (2) |
Effect |
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom Image Adjust: Sharpness, Contrast, Saturation (5 steps), Beauty shot, ACB |
Edit |
Image Edit: Resize, Rotate, Trimming Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom Image Adjust: Off, Face Retouch, Brightness, Contrast, Saturation, Red Eye Fix, ACB, Add Noise |
Date Imprinting |
|
Date&Time, Date, Off (user selectable) |
Power Source |
|
Rechargeable battery: BP70ACharger: SAC-48, CB20U05BConnector Type: 20pin |
Physical Specification |

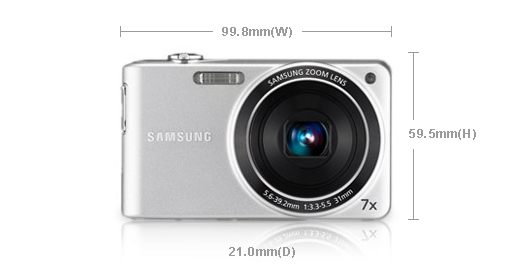

Dimensions (WxHxD) |
99.8 x 59.5 x 21.0mm |
Weight |
143g (without Battery and SD card) |
Operating Temperature |
0 ~ 40C |
Operationg Humidity |
5 ~ 85% |
System Requirement in general |
For Windows |
PC with processor better than Pentium 3.2GHz / AMD Athlon FX 2.6GHz Minimum 512MB RAM (Over 1GB recommended) Windows XP / Vista / 7,250MB of available hard-disk space (Over 1GB recommend) USB port CD-ROM drive nVIDIA Geforce 7,600GT or later / Ati X 1,600 series or later 1,024 x 768 pixels, 16-bit colour display compatible monitor (1,280 x 1,024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later |
For Macintosh |
Power Mac G3 or later Mac OS 10.4 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive |
