Nikon FSB-U1 Digital Camera Bracket - To Suit COOLPIX Series

Product May Vary From Image
Part No:
141514
Brand:
Nikon  Web Site
Manuf No:
BDB90157
Ship Weight:
1 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
Universal digital camera bracket FSB-U1 connects a wide variety of Nikon COOLPIX* compact digital cameras to Nikon Fieldscopes, Spotting Scope RAIII and Fieldmicroscope EZ-Micro.
*See below for compatible models.


Digital Camera Bracket FSB-U1 (Universal type for COOLPIX Series)




Specifications

Dimensions (without screw):
155 (W) x 105 (H) x 95 (D) mm
Weight (without cable release): 340g





combination example




Combination example:
Fieldscope EDIII + 24x Wide DS Eyepiece + FSB-U1 + COOLPIX P6000





By moving the bracket, viewing is possible without removing the camera.




Viewing with the right eye is possible by moving the bracket without removing the camera.

Features

 Universal digital camera bracket for digiscoping connects a wide variety of Nikon COOLPIX compact digital cameras to Nikon Fieldscopes, Spotting Scope RAIII and Fieldmicroscope EZ-Micro

 Enables easy switching between observation and digiscoping without removing the digital camera
*
 If the bracket is used to combine the Spotting Scope RAIII and DS Spotting Scope Eyepiece 20x/25x, only the shooting (closed) position should be used

 Comes with cable release (approx. 50cm), which helps prevent camera shake during shooting




Digiscoping System Diagram



Compatible Digital Cameras (COOLPIX) (as of April, 2010)
P series (P6000*1/P5100/P5000/P50/P4/P3/P2/P1)
S series (S4000*2/S3000*2/S710/S700/S640*3/S620/S610/S610c/S600/S570
/S520/S510/S500/S230/S220/S210/S200)
L series (L22/L21/L20/L19/L18/L16/L15/L14/L12/L11/L10/L6/L4/L3/L2)

*1
 The combination of the COOLPIX P6000, FSB-U1 and EZ-Micro is not recommended in terms of the weight balance.
*2
 Attaching a DS Spotting Scope zoom eyepiece to the COOLPIX S4000/S3000 is not recommended because of possible contact of the camera lens with the eyepiece lens.
*3
 Only with EDG Fieldscope eyepieces. Attaching DS eyepieces to the S640 is not recommended because of vignetting

Notes

 Vignetting may occur even with compatible models; occurrence of vignetting also depends on the subject and other shooting conditions

 Camera position may become misaligned during camera operation or replacement of batteries or recording media; adjust the camera if necessary before releasing the shutter (Removing the camera is necessary when replacing batteries or recording media.)

 If you notice external light on the monitor or picture image, we recommend that you use a shield such as a black cloth to prevent light entering between the mount and lens of the camera

 Conventional MC eyepieces cannot be used; please use DS eyepieces for connection with the FSB-U1

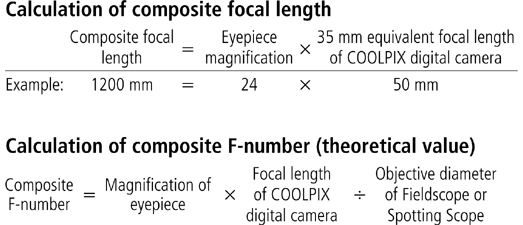

Calculation of composite focal length / Calculation of composite F-number





 Although the theoretical F-number obtained using the calculation above exceeds the camera's F-number, the actual F-number will not.

Occurrence of vignetting, based on the combination of eyepiece and COOLPIX digital camera (guidelines)

Example) when using P6000, S570
  P6000 S570
W M T W M T
16x/24x/30x Wide DS
27x/40x/50x Wide DS
40x/60x/75x Wide DS

Click here for other combinations of eyepiece and COOLPIX digital cameraopen new window
Click here for combinations of EDG Fieldscope eyepiece and COOLPIX digital cameraopen new window

W: With wide setting M: With middle setting T: With telephoto setting
: Slight vignetting : Vignetting X: Heavy vignetting at the periphery

Note:

 Depending on the type of camera, its position, or zoom setting, vignetting may occur. If vignetting does occur, carefully adjust the bracket position.


 When a digital camera lens is used at wide setting, take care that the camera lens does not hit the eyepiece lens when zooming to telephoto setting.


 Because it may be difficult to focus when using the camera's AF function with super-telephoto shooting, we recommend that you take a series of pictures of the same subject.
