The "

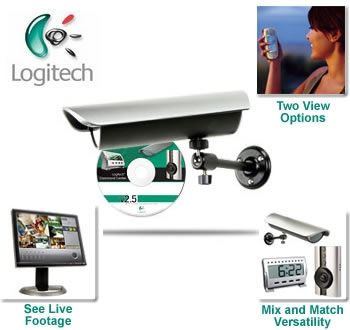

Outdoor Video Security Master System" monitors entrances and driveways with the Logitech Outdoor Video Security Master System; a revolutionary video surveillance system you can install in 15 minutes. The Outdoor Camera is weatherproof and waterproof; ensuring year-round use even in harsh conditions.
Its all plug and play. Using innovative HomePlug technology; the Logitech Outdoor Video Security Master System transmits encrypted video over existing electrical wires straight to your PC.
Overview Easy setup gets you up and running fast.Three simple steps: Install Logitech Command Center PC software; connect the USB receiver; and plug in the camera anywhere around the home or office. Installation takes 15 minutes.
No-hassle setup: No new wires to run. No network configuration.
See live footage or store it for later replay.Automatic video storage: Intelligent camera detects motion; recording video directly to your PCs hard drive for easy playback and archiving.
Powerful search and playback tools: Review stored video footage from prior hours; days; or weeks.
Intuitive Windows interface: Easily navigate and set your preferences.
Motion-activated cell-phone and e-mail alerts: Quickly update you when youre on the go.
Expandable system: Monitor video for up to six cameras simultaneously.
Two viewing options when youre on the go.Free remote viewing via the Internet: View live video from your WiLife accountanywhere; anytime.
Windows Mobile cell phone accessible: Check on your home or business even when youre on the go.
Mix-and-match versatility.Expandable for maximum coverage: Add up to five additional Logitech Indoor; Outdoor; or Spy Cameras in any combination to any Logitech Master System.
Multiple mounting options: Mounts for walls; ceilings; and posts are available for optimum positioning.
Specifications System RequirementsRecommended CPU speed (GHz): 1.4 (1 camera)
Recommended PC memory (MB): 384 (1 camera)
PC Video card memory (MB):32 (1-2 cameras)
Recommended DirectX 9 compatible
Display resolution: 1024 x 768 pixels or higher; 32-bit color
Hard drive (MB): 100 MB for program and a minimum of 500+ MB for video storage
Operating system: Microsoft Windows Vista (32/bit) Microsoft Windows XP Home Edition; XP Professional or XP Media Center Edition
Internet access requiredTechnical Specifications BasicProcessing Power: 400 MHz DSP
Image Encoding: Windows Media Video 9
Image Processing: Motion detection up to 16 zones; Auto brightness
Resolution: Selectable: 640 x 480 pixels or 320 x 240 pixels
Frame Rate: Selectable: 15; 10; or 5 frames/second
Bit Rate: Selectable
Color Depth: 10 bits
LensFocus: Preset
Viewing Angle: 80 (diagonal)
Firmware Updates: Selectable: Manual or Automatic
Operating EnvironmentOperating Temp. Range: +0 F to +110 F (-18 C to +44 C)
Storage Temp Range: -4 F to +140 F (-20 C to +60 C)
Humidity (storage and operating): 5% to 95% (relative; non-condensing)
Voltage: 110/120 Volts AC; 50/60 Hz
Power supply to Camera cable: Built-in
Illumination: 2 lux minimum per IEC 61146-1
Property Size: Up to 10000 square feet
Physical MetricsPower Consumption: 15 Watts
Camera Body Dimensions:Height: 2.0 inches (5 cm)
Width 4.72 inches (12 cm)
Depth: 8 inches (20 cm)
Camera Weight: 15.2 oz (450 g)
Package ContentsLogitech Outdoor Camera
Logitech USB receiver
Logitech PC software
Multi-purpose mount
Window decals
USB cable
