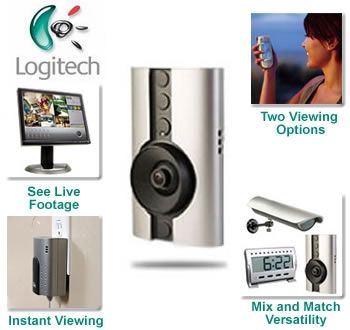

The Logitech Indoor Add-On Security Camera enhances the power and reach of your Video Security Master System so you can easily monitor your home or business. Sleek, yet unobtrusive, the Indoor Camera fits seamlessly with your home dcor.
Add up to five additional cameras to monitor and protect your entire property. Using innovative HomePlug technology, the Logitech Indoor Add-On Security Camera transmits encrypted video over existing electrical wires straight to your PC.
Overview
Easy setup gets you up and running fast
Instant viewing: After setting up your Master System (sold separately) and installing the Logitech Command Center PC software, simply plug in your Add-On Camera. Its ready to go.
No-hassle setup: No new wires to run. No network configuration.
See live footage or store it for later replay
Automatic video storage: Intelligent camera detects motion, recording video directly to your PCs hard drive for easy playback and archiving.
Powerful search and playback tools: Review stored video footage from prior hours, days, or weeks.
Intuitive Windows interface: Easily navigate and set your preferences.
Motion-activated cell-phone and e-mail alerts: Quickly update you when youre on the go.
Expandable system: Monitor video for up to six cameras simultaneously.
Two viewing options when youre on the go
Free remote viewing via the Internet: View live video from your WiLife accountanywhere, anytime.
Windows Mobile cell phone accessible: Check on your home or business even when youre on the go.
Mix-and-match versatility
Expandable for maximum coverage: Add up to five additional Logitech Indoor, Outdoor, or Spy Add-On Cameras in any combination to any Logitech Master System.
Multiple indoor-mounting options: Attach to a window (facing in or out), place on a desktop, or mount to a wall for optimum positioning.
Attractive design: Camera seamlessly fits in with home and office furniture.
Specifications
System Requirements
Recommended CPU speed (GHz): 1.4 (1 camera)
Recommended PC memory (MB): 384 (1 camera)
PC Video card memory (MB):
32 (1-2 cameras)
Recommended DirectX 9 compatible
Display resolution: 1024 x 768 pixels or higher, 32-bit color
Hard drive (MB): 100 MB for program and a minimum of 500+ MB for video storage
Operating system: Microsoft Windows Vista (32/bit) Microsoft Windows XP Home Edition, XP Professional or XP Media Center Edition
Internet access required
Logitech Master System required
Technical Specifications
Basic
Processing Power: 400 MHz DSP
Image Encoding: Windows Media Video 9
Image Processing: Motion detection up to 16 zones, Auto brightness
Resolution: Selectable: 640 x 480 pixels or 320 x 240 pixels
Frame Rate: Selectable: 15, 10, or 5 frames/second
Bit Rate: Selectable
Color Depth: 10 bits
Illumination: 2 lx minimum per IEC 61146-1
Lens
Focus: User-adjustable
Viewing Angle: 80 (diagonal) 50 (manual)
Firmware Updates: Selectable: Manual or Automatic
Operating Environment
Operating Temp. Range: +32F to +93 F (0 C to +34 C)
Storage Temp Range: -4 F to +140 F (-20 C to +60 C)
Humidity (storage and operating): 5% to 95% (relative; non-condensing)
Voltage: 110 Volts AC, 60 Hz
Power supply to Camera cabling: CAT-5e, RJ-45 connectors, 10 feet (3 m)
User Provided requirements: CAT-5e, RJ-45 connectors, up to 120 feet (36 m)
Connector pin out: Per IEEE 802.3
Property Size: Up to 10,000 square feet
Physical Dimensions
Power Consumption: 15 Watts
Camera Body Dimensions:
Height: 5.0 inches (12.7 cm)
Width 3.2 inches (8.1 cm)
Depth: 1.8 inches (4.6 cm)
Power Supply Dimensions:
Height: 3.8 inches (9.7 cm)
Width 2. 9 inches (7.4 cm)
Depth: 2.6 inches (6.6 cm)
Camera Weight: 6.1 oz (173 g)
Package Contents
Logitech Indoor Security Camera
Logitech power supply
Window mount
Desktop stand
Wall mount
Window decals
Camera ethernet cable (10-foot)
