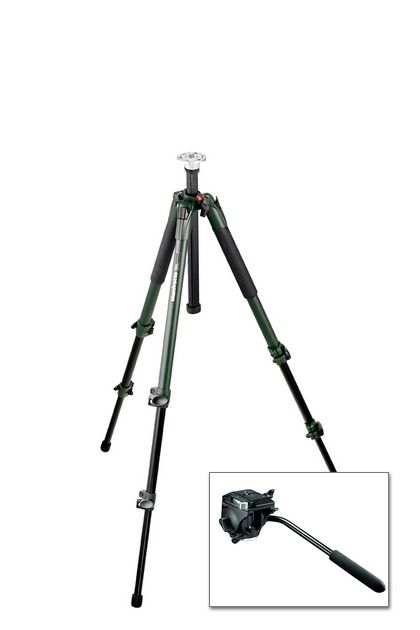

190XV VIEW ALU TRIPOD
Newly redesigned, the 190XV is lighter in weight and slightly more compact for a outstanding performance. The ergonomics of the leg angle release mechanism and the quick action leg locks themselves have also been greatly improved.
FULL TECHNICAL SPECIFICATIONS
closed length 53.5 cm
minimum height 35.0 cm
maximum height 146.0 cm
maximum height (with center column down) 118.5 cm
weight 1.80 kg
load capacity 5.00 kg
color green
material aluminum
leg cross section round
column cross section three-faceted
leg sections 3
leg angles 25°,46°,66°,88°
centre column rapid
column tube diameter 25mm
attachment 3/8
legs tube diameter 25, 20, 16 mm
suggested dolly 127, 127VS
701RC2 COMPOSITE VIDEO HEAD PRO
Small and lightweight, this fluid video and spotting scope head is capable of accommodating a payload of up to 4 kg, and is ideal for set-ups such as a fully equipped 3 CCD mini DV camcorder or a spotting scope combined with a digital still or video camera for digiscoping purposes. It is equipped with a fixed 1.5 kg counterbalance spring which combined with a camera plate attachment made of a 200PL touch and go/sliding plate which can shift from +15mm to -15mm from the 0 point to optimize the position of the counterbalance spring and deliver a wide range of balancing positions.
FULL TECHNICAL SPECIFICATIONS
weight 0.80 kg
load capacity 4.00 kg
panoramic rotation 360 °
minimum working temperature 60 °C
maximum working temperature -10 °C
working height 10.1 cm
color black
material aluminum
independent pan lock yes
tilt drag continuously adjustable from 0 to max level
front tilt -60° / +90°
quick release yes
bubble spirit level (no) 1
pan bars included (no.) 1
pan bar positions 1
plate type 200PL-14
attachment (bottom) 3/8" female thread
pan drag continuously adjustable from 0 to max level
independent tilt lock yes null
counterbalance yes
