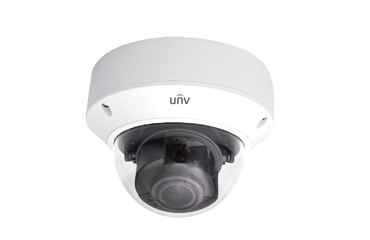

Uniview IPC3234SR3-DVZ28 security camera Dome IP security camera 2592 x 1520 pixels Ceiling/wall, 4MP WDR (Motorized) VF Vandal-resistant Network IR Fixed Dome Camera
Uniview IPC3234SR3-DVZ28 security camera Dome IP security camera 2592 x 1520 pixels Ceiling/wall
| Manufacturer: |
Uniview |
| Category: |
Home |
| Sub-Category: |
Security Cameras |
| SKU: |
IPC3234SR3-DVZ28 |
| EAN: |
5420016857996 |
Description
Optics
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Lowlight surveillance
- 3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
Compression
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter | Yes | | Fog proof | Yes | | Type | IP security camera | | Connectivity technology | Wired | | Wide Dynamic Range (WDR) | Yes | | Day/night mode | Yes | | Alarm input/output | Yes | | Design |
|---|
| IK code | IK10 | | Fog proof | Yes | | Form factor | Dome | | Product colour | White | | Mounting type | Ceiling/wall | | Protection features | Vandal proof | | International Protection (IP) code | IP67 | | Camera |
|---|
| Camera shutter speed | 1/100000 - 1/6 s | | Progressive scan | Yes | | Image sensor |
|---|
| Sensor type | CMOS | | Progressive scan | Yes | | Optical sensor size | 25.4 / 3 mm (1 / 3") | | Lens system |
|---|
| Auto focus | Yes | | Focus | Motorized | | Zoom capability | Yes | | Focal length range | 2.8 - 12 mm | | Night vision |
|---|
| Night vision | Yes | | Night vision distance | 30 m | | LED type | IR | | Video |
|---|
| Noise reduction | Yes | | Automatic gain control | Yes | | Privacy masking | Yes | | Smart IR | Yes | | Region of Interest (ROI) encoding | Yes | | Highlight Compensation (HLC) | Yes | | Back Light Compensation (BLC) | Yes | | 3D NR (Noise Reduction) | Yes | | Maximum resolution | 2592 x 1520 pixels | | Supported graphics resolutions | 1920 x 1080 (HD 1080),2048 x 1520,2560 x 1440,2592 x 1520 | | Video compression formats | H.264,H.265,M-JPEG | | Frame rate | 30 fps | | Video streaming | Yes | | Total megapixels | 4 MP | | Audio |
|---|
| Voice codecs | G.711 | | Signal-to-Noise Ratio (SNR) | 55 dB | | Sample rate | 8 kHz | | Audio system | 2-way | | Audio detection | Yes | | Network |
|---|
| Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.1x,IEEE 802.3,IEEE 802.3af,IEEE 802.3u | | Ethernet LAN | Yes | | Cabling technology | 10/100Base-T(X) | | Wi-Fi | No | | Supported network protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x | | Storage |
|---|
| Card reader integrated | Yes | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC | | Built-in HDD | No | | Maximum memory card size | 128 GB | | Ports & interfaces |
|---|
| BNC output ports | 1 | | Interface | RJ-45/BNC | | Ethernet LAN (RJ-45) ports | 1 | | Connectivity technology | Wired | | Security |
|---|
| Intelligent Video Surveillance (IVS) system features | Crossing line, Defocus, Face detection, People counting, Scene change | | Video motion detection | Yes | | Security algorithms | 802.1x RADIUS,HTTPS | | IP address filtering | Yes | | Active tampering alarm | Yes | | Digital watermark | Yes | | Management features |
|---|
| Reset button | Yes | | Behavior analysis | Intrusion detection, Line crossing detection | | Power |
|---|
| Power source type | PoE | | Power over Ethernet (PoE) | Yes | | Power consumption (max) | 7.2 W | | DC output voltage | 12 | | Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C | | Weight & dimensions |
|---|
| Height | 111.3 mm | | Diameter | 14.8 cm | | Weight | 750 g | | Packaging content |
|---|
| Number of cameras | 1 | | Technical details |
|---|
| Removable IR-cut filter | Yes | | Other features |
|---|
| Focus | Motorized | | Video compression formats | H.264,H.265,M-JPEG |
|
|
|
