Sony VPL-FHZ75 Projector
Overview
These compact, elegantly styled laser projectors showcase cutting-edge Sony
picture innovation, reliable operation and installation-friendly features making
them ideal for high brightness projection applications in mid-size corporate,
education and public environments.
Bright, very high contrast images
The projectors advanced laser light source is complemented by a
newly-developed 0.76-inch LCD panel with incorporated optical compensator.
Combined with powerful signal processing technology, this ensures crisp, bright
images 6,500 lm (7,000lm center) VPL-FHZ75, 5,500 lm (6,000 lm center) VPL-FHZ70
with :1 contrast and beautifully stable, accurate colour.
Advanced picture refinement technologies
Impressive picture quality is boosted by Sonys unique super resolution
Reality Creation technology. This uses a powerful pattern-matching database to
optimise lower-resolution images, enhancing clarity without increasing digital
picture noise.
Faster, simpler set-up
Sonys Intelligent Setting function simplifies installation, with pre-sets
that adjust brightness, cooling system, colour and other projector settings for
optimal performance in meeting/classrooms, museums, entertainment venues and
multi-screen setups.

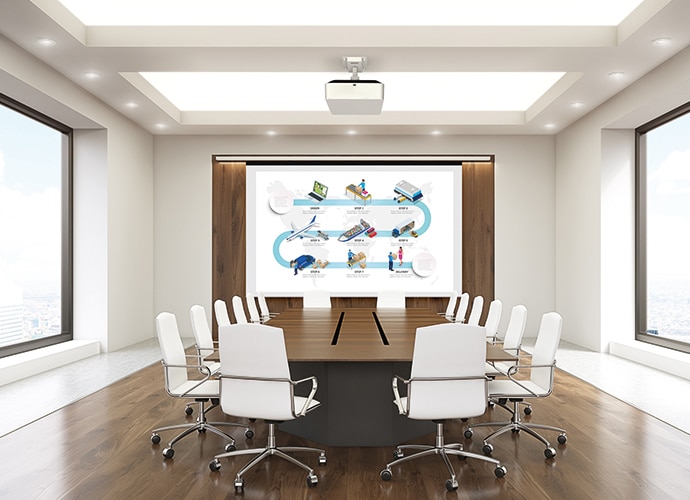

Stylish blend-in design
The slim, stylish body design features a flat top surface that blends
discreetly into any space when the projector is ceiling mounted. The clean
appearance is accentuated by a new terminal cover that reduces cable
clutter.
Networked control and monitoring
Ideal for integration in AV environments with leading control, monitoring and
management systems such as Crestron Connected and Extron XTP
Systems.*
*Extron and XTP Systems are trademarks of RGB Systems Inc.
Reduced maintenance
The laser light source offers up to 20,000 hours* operation without lamp
exchange, reducing maintenance needs compared with traditional
projectors.
* Depending on usage environment.
Consistent brightness
Experience consistent image brightness throughout the laser light sources
20,000 hours recommended lifespan.
Versatile lens options
Theres a wide range of lens options to suit virtually any size of room and
throw requirements. Quick-release bayonet mount simplifies lens
exchange.
Generous lens shift range
Enjoy greater flexibility to position the projector in restricted spaces,
ensuring that audience and presenters arent distracted by the light
source.
Easy edge blending
Seamlessly join colour-matched images from multiple projectors for stunning
super-size displays in corporate and education environments.
Hassle-free filter cleaning
Focus on great-looking images instead of arduous maintenance tasks: automated
filter cleaning system removes dust every 100 hours.
Auto calibration
Colour can be automatically re-calibrated to the original factory condition
after extended periods with no extra calibration equipment.
Protocol Emulation
Sonys Protocol Emulation feature allows one to control Sony projectors using
other manufacturers RS232C control protocols. This feature allows integrators to
replace other manufacturers projector with Sonys, without re-programming the AV
system. Consult your Sony representative for the details.
Specifications
|
Display
system |
|
|
Display
system |
3
LCD system |
|
Display
device |
|
|
Size
of effective display area |
New
LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio:
16:10 |
|
Number
of pixels |
6,912,000
(1920 x 1200 x 3) pixels |
|
Projection
lens *1 |
|
|
Focus |
Powered |
|
Zoom
- Powered/Manual |
Powered |
|
Zoom
- Ratio |
Approx.
x 1.6 |
|
Throw
ratio |
1.39:1
to 2.23:1 |
|
Lens
shift - Powered/Manual |
Powered |
|
Lens
shift - Range Vertical |
-5%,
+70% |
|
Lens
shift - Range Horizontal |
+/-
32% |
|
Light
source |
|
|
Type |
Laser
diode |
|
Filter
cleaning / replacement cycle (Max.)*2 |
|
|
Filter
cleaning / replacement cycle (Max.) |
20000
H (service maintenance) |
|
Screen
size |
|
|
Screen
size |
40''
to 600'' (1.02 m to 15.24 m) (measured
diagonally) |
|
Light
output *3 |
|
|
Mode:
Standard |
6500lm
*4 / 7000lm (Center)*5 |
|
Mode:
Middle |
5200lm |
|
Mode:
Low |
- |
|
Colour
light output *3 |
|
|
Mode:
Standard |
6500lm |
|
Mode:
Middle |
5200lm |
|
Mode:
Low |
- |
|
Contrast
ratio (full white / full black) *3 |
|
|
Contrast
ratio (full white / full black) |
:1 |
|
Displayable
scanning frequency |
|
|
Horizontal |
15
kHz to 92 kHz |
|
Vertical |
48
Hz to 92 Hz |
|
Accepted
signal resolution |
|
|
Computer
signal input |
Maximum
signal resolution: 1920 x 1200 *6 |
|
Video
signal input |
NTSC,
PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p,
1080/60i, 1080/50i |
|
The
following items are available for digital signal (HDMI input) only;
1080/60P, 1080/50p, 1080/24p |
|
Colour
system |
|
|
Colour
system |
NTSC3.58,
PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
|
Keystone
correction (Max.) |
|
|
Horizontal |
+/-
30 degrees |
|
Vertical |
+/-
30 degrees |
|
INPUT
OUTPUT (Computer/Video/Control) |
|
|
INPUT
A |
RGB
/ Y PB PR input connector:Mini D-sub 15 pin
(female) |
|
Audio
input connector: Stereo mini jack |
|
INPUT
B |
DVI
input connector: DVI-D 24-pin (single link), HDCP
support |
|
Audio
input connector: Shared with INPUT A |
|
INPUT
C |
HDMI
input connector: HDMI 19-pin, HDCP support |
|
Audio
input connector: HDMI audio support |
|
INPUT
D |
HDBaseT
interface connector: RJ45, 4 play (Video, Audio, LAN,
Control) |
|
VIDEO
IN |
Video
input connector: BNC |
|
Audio
input connector: Shared with input A |
|
OUTPUT
A |
Monitor
output for Input A Connector: Mini D-sub 15-pin
(female) |
|
Audio
output connector: Stereo mini jack |
|
OUTPUT
B |
Monitor
output for Input B Connector: DVI-D 24-pin (single link), HDCP not
supported |
|
Audio
output, Monitor out connector: Stereo mini
jack |
|
REMOTE |
D-sub
9-pin (male) / RS232C |
|
LAN |
RJ45,
10BASE-T/100BASE-TX |
|
IR
(Control S) |
Stereo
mini jack, Plug in power DC5V |
|
Acoustic
Noise *3 |
|
|
Lamp
mode : Middle |
36
dB |
|
Operating
temperature / Operating humidity |
|
|
Operating
temperature / Operating humidity |
0C
to 40C (32F to 104F) / 20% to 80% (no
condensation) |
|
Storage
temperature / Storage humidity |
|
|
Storage
temperature / Storage humidity |
-10C
to +60C (14F to +140F) / 20% to 80% (no
condensation) |
|
Power
requirements |
|
|
Power
requirements |
AC
100 V to 240 V, 5.4 A to 2.2 A, 50 Hz / 60 Hz |
|
Power
consumption |
|
|
AC
100 V to 120 V |
Mode:
Standard: 537 W |
|
AC
220 V to 240 V |
Mode:
Standard: 518 W |
|
Power
consumption (Standby Mode) |
|
|
AC
100 V to 120 V |
0.5W
(when Standby mode is set to Low) |
|
AC
220 V to 240 V |
0.5W
(when Standby mode is set to Low) |
|
Power
consumption (Networked Standby Mode) |
|
|
AC
100 V to 120 V |
16.0
W (LAN) |
|
20.7
W (HDBaseT) |
|
20.7
W (All Terminals and Networks Connected) (when "Standby Mode" is set to
"Standard") |
|
AC
220 V to 240 V |
13.3
W (LAN) |
|
18.7
W (HDBaseT) |
|
18.7
W (All Terminals and Networks Connected) (when "Standby Mode" is set to
"Standard") |
|
Standby
Mode / Networked Standby Mode Activated |
|
|
Standby
Mode / Networked Standby Mode Activated |
Approx.
10 Minutes |
|
Heat
dissipation |
|
|
AC
100 V to 120 V |
1833
BTU/h |
|
AC
220 V to 240 V |
1768
BTU/h |
|
Dimensions
(W x H x D) |
|
|
Dimensions
(W x H x D) (without protrusions) |
460
x 169 x 515 mm |
|
18
1/8 x 6 21/32 x 20 9/32 inches |
|
Mass
|
|
|
Mass |
Approx.
16 kg (34 lb) |
|
Optional
accessories |
|
|
Projection
Lens |
VPLL-3003
/ 3007 / Z3009 / Z3010 / Z3024 / Z3032 |
|
Notes
|
|
|
*1 |
With
supplied standard lens |
|
*2 |
This
figure is expected maintenance time, not guaranteed time. The actual value
depends on the environment and how the projector is
used. |
|
*3 |
The
figures are approximate. They vary depending on the environment or how the
projector is used. |
|
*4 |
The
value is in accordance with ISO 21118, and may differ depending on the
actual unit. Brightness and contrast vary depending on use conditions and
environments. |
|
*5 |
The
value is light output measured at centre area of screen in Standard mode,
and average of all products shipped. |
|
*6 |
Available
for VESA Reduced Blanking
signal. |
