Product Type

Memory

SD, SDHC^[1], SDXC^[1]

1 UHS-I compatible.

Image Sensor

Product type

1/2.33 inch

Number of pixels

Number of effective pixels: 12 million pixels

Total number of pixels: Approx. 12.7 million pixels

Aspect ratio

Aspect ratio: 1.33 (4:3)

Lens

Structure

9 lens elements in 7 groups

Focal length (equiv. 35mm)

4.5mm -18.0mm (25mm - 100mm)

Maximum aperture

f/2.0 (wide-end) to f/4.9 (tele-end)

Optical zoom

4x

Shooting range (from lens tip)

Throughout entire zoom range: 0.1m - infinite (Super macro : less than f=5.4mm, from 0.1m to 0.3m / above 5.4mm, from 0.01m to 0.3m / Microscope: 0.01m - 0.30m)

Still Photo Recording

Recording format

DCF2.0, Exif2.3

File format

RAW (12-bit lossless compression), JPEG, RAW + JPEG

Recording image size

[RAW] 4000 x 3000

[JPEG] 4000 x 3000 - 1280 x 960

Image Stabilisation System

Type

Still image: CMOS shift

Mode

On / Off

Stabilisation performance

2.5 EV^[*](Focal length set to 18 mm. 35 mm Equivalent Focal Length: 100 mm)

Based on CIPA measurement conditions.

Live View

Live View

Approx. 100% field of view, Exposure compensation preview, WB adjustment preview, Gradation preview, Face detection preview (up to 8 faces), Grid line, Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off

Monitor

Monitor type

3.0-inch colour LCD^[*]

Approx. 1040K dots (Aspect ratio: 3 : 2)

Brightness control

7 levels

Focusing

AF system

CMOS Contrast Detection (with AF Illuminator)

Focusing point / Focusing point selection mode

25 point / All target, single target

Focus mode

Single AF (S-AF) / AF tracking / Manual Focus (MF) / Super macro (AF) / Super macro (MF)

Face detection AF

With

Manual focus assist

Live View image magnification and focus peaking are available during manual focus operations.

Peaking function

With

Colour selection: white, black, red, yellow

AF illuminator

With

Exposure Control (Still)

Metering system (TTL Image sensor metering)

Digital ESP metering / spot metering

Metering range

EV 2-20 (f/2.0 / ISO 100)

Exposure mode / Shooting mode

Intelligent Auto (iAUTO), Program Auto (P), Aperture Priority (A), Custom1, Custom2, Underwater (Snap, Wide, Macro, Microscope, HDR), Microscope (Microscope, Focus stacking, Focus bracket, Microscope control), Scene Mode (SCN), Movie

Scene select AE

Portrait, e-Portrait, Landscape, Portrait +Landscape, Hand-held Starlight^[*], Nightscape, Portrait + Nightscape, Children , Sport , Candlelight, Sunset, Fireworks, Beach & Snow, Panorama, Live Composite, Backlight HDR

6 images automatically shot and combined into a single composite image

ISO sensitivity

AUTO ISO: 100 - 1600 with customisable upper limit from 100 to 12800

Manual ISO: 100 - 12800 (1/3 EV step)

Exposure compensation

2 EV (1/3 EV step)

AE lock

Locks with a half-press of the shutter button

Shutter

Shutter Speed

1/2 to 1/2000 sec. (Night Scene, A mode: up to 4 sec.)

Drive

Sequential shooting maximum speed

[Sequential shooting H]^[*]: approx. 20 fps with selectable 10 / 20fps

[Sequential shooting L]: approx. 5 fps

[Pro Capture]^[*]: approx. 10 fps

Electronic Shutter

Maximum recordable frames prior to second release (for Pro Capture)

Max. 5 frames

Sequential shooting maximum recordable frames

[Sequential shooting H] RAW: Max. 14 frames, JPEG (LN): Until card is full

[Sequential shooting L] RAW: Max. 40 frames, JPEG (LN): Until card is full

Self-timer

Operation time: 12 sec., 2 sec., custom (Wait time: 1-30 sec., Number of shots: 1-10, Shot interval: 0.5 / 1 / 2 / 3 sec.)

Flash

Flash intensity control method

TTL Auto, Manual

Built-in flash

With

Flash mode

Auto, Red Eye Reduction, Slow sync. (1st curtain), Red-eye Slow sync. (1st curtain), Fill-in, Manual (1/1 (FULL)-1/64), Flash Off

Synchronization speed

Compatible with all shutter speeds

Flash intensity control

Up to 2 EV in 1/3 EV steps

Wireless Flash Control

Compatible external flash

FL-50R, FL-36R, FL-300R, FL-600R, FL-900R, FL-700WR

Control method

Triggered and controlled by Olympus Wireless RC Flash system

Commander Flash: Built-in flash

Channel

1 channel

Group No.

1 group

White Balance

White balance mode

Auto WB, 6 Preset WBs, 3 Underwater WBs, 4 Capture WBs, Custom WB (Kelvin setting)

White balance compensation

7 steps along A-B / G-M axis

Except for Custom WB

Colour Mode

Colour matrix

sRGB, Adobe RGB

Picture Mode

Mode

i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e Portrait, Art Filters

Gradation

Auto, Normal, High Key, Low Key [except when using i-Enhance, Underwater, Art Filters, Colour Creator]

Art Filter

Art Filter (Variation / Art Effect)

Pop Art (I, II / a, b, c. d, e, f)

Soft Focus ( - / c, e)

Pale & Light Colour (I, II / a, b, c, d, f)

Light Tone ( - / d, f)

Grainy Film (I, II / b, c, d, g, h)

Pin Hole (I, II, III / d)

Diorama ( I,II / d)

Cross Process (I, II / b, c, d, f)

Gentle Sepia ( - / a, b, c, d, f)

Dramatic Tone (I / b, c, d, e, f) (II / b, c, d, e, f, g, h)

Key Line (I, II / a, b, c, d, e)

Watercolour (I, II / a, b, c, d)

Vintage (I, II, III / a, b, c, d, e, f, i)

Partial Colour (I, II, III / a, b, c, d, e, f)

Bleach Bypass (I, II / a, b, c, d, e, f, i)

Instant Film (- / a, b, c, d, e, f, i)

Detail of Art Effect

a. Soft Focus Effect

b. Pin-Hole Effect

c. White Edge Effect

d. Frame Effect

e. Star Light Effect

f. Blur Effect (Top & bottom, Left & Right)

g. B&W Effect (None, Yellow, Orange, Red, Green)

h. Pict. Tone (None, Sepia, Blue, Purple, Green)

i. Shade Effect (Top & bottom, Left & Right)

Colour Ring (for partial colour)

18 colour selectable

Bracketing

Focus bracketing

Number of images 10 / 20 / 30

Focus step: Wide / Standard / Narrow

Focus stacking

With^[*]

Angle of view becomes slightly smaller

HDR Function

HDR (Auto composite)

HDR^[*]

SCN position

Live Composite

Update interval time / composite method

0.5sec - 4.0 sec / Lighten Mode (Bright area prioritisation)

Interval Mode

Interval Mode

Interval Time 1sec. - 24 Hours, Max 299 frames.

Available to make Time Lapse movies automatically

Stamp

Date / Time stamp

Available

Multi Aspect

Aspect Ratio

4:3, 3:2, 16:9, 1:1, 3:4

One Push Tele-converter

Magnification

x2 (P, A, Movie mode), x2 / x4 (Microscope mode)

Level Gauge

Detection

2-axis

Video Recording

Recording format

MOV (MPEG-4AVC/H.264)

Mode / Frame rate

[MOV]

3840x2160 (4k) / 30p, 25p (Bit rate: Approx. 102Mbps)

1920x1080 (FHD) / 30p, 25p / IPB (SF, F, N)

1920x1080 (FHD) / 60p, 50p / IPB (SF, F, N)

1280x720 (HD) / 30p,25p / IPB (SF, F, N)

60p: 59.94fps, 50p: 50.00fps, 30p: 29.97fps, 25p: 25.00fps

FHD (Superfine / 52Mbps, Fine / 30Mbps, Normal / 18Mbps)

HD (Superfine / 52Mbps, Fine / 30Mbps, Normal / 18Mbps)

Frame rates may drop when particular Art Filters and Movie Effects are used.

UHS-I Speed Class 3 SD card must be used for 4K video and high speed movie.

Maximum recording time

[MOV]

Approx. 29min

Art Filter Movie

With

Except for 4K and high speed movie

Frame rates may drop when certain Art Filters are used

Time Lapse Movie

[MOV]

3840x2160 (4K) / 5fps

1920x1080 (FHD) / 5fps, 10fps, 15fps

1280x720 (HD) / 5fps, 10fps, 15fps, 30fps

High Speed Movie

1920x1080 (FHD) / 120fps, recording time 20 sec.

1280x720 (HD) / 240fps, recording time 20 sec.

640x360 (SD) / 480fps, recording time 20 sec.

Image Stabilisation for Video

Digital stabilisation (angle of view becomes slightly smaller)

Grid Line

2 types of grid lines

Live View Output via HDMI

Monitor Mode (outputs video and info display to a connected monitor)^[*]

Info display is not shown on the camera while recording.

Exposure Control

Programme AE

Recording (Sound)

Recording format

Wave format (Stereo linear PCM/16-bit, Sampling frequency 48kHz)

Microphone / Speaker

Built-in stereo microphone / built-in mono speaker

Microphone function

Wind noise reduction, recording volume, microphone volume limiter Audio dubbing possible for still pictures (up to 30 sec.)

May affect audio quality.

Wi-Fi Function

GPS info. Function

Via smartphone GPS data

Wireless Control^[*]

Live View, Rec View, Wireless Touch AF shutter, Self Timer (w/countdown guidance, consecutive shooting, short video recording), power off, wireless release, video recording (video quality is restricted)

Using the OI.Share app

iAuto / P / A / Live Composite and Microscope can be selected.

Aperture, exposure, ISO sensitivity, white balance. Drove can be adjusted.

Private connection only.

Image Share

File Type: JPEG, MOV

Connect to up to 4 devices simultaneously. Marking function for image share.

Easy Connection

QR code setting

Playback

Playback mode

Single-frame, information display, index display (4 / 9 / 25 / 100 frames), calendar, enlargement (2x - 14x), movie (with sound, FF / REW / Pause), slideshow (with sound including BGM, picture rotation (auto)

Information display

Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Photographic information, OFF

Image Editing

Movie Editing function

Trimming (beginning / end) / in-movie image extraction (4K only)

Editing function

RAW data edit, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280x960, 640x480, 320x240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording

RAW data edit

RAW data edit based on settings of the camera (including e-Portrait, Art Filter, ART-BKT). Preview capability.

Print

Print function

Print reservation (DPOF)

Menu

Languages

34 languages selectable:

English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai

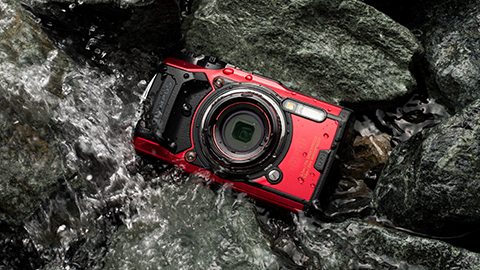

Tough Capabilities

Waterproof

JIS/IEC protection class 8 (IPX8)

Dustproof

JIS/IEC protection class 6 (IP6X)

Freezeproof

Down to -10

Crushproof

Up to 100 kgf

Shockproof

Up to 2.1 m

Field Sensor System

Sensor

GPS (GLONASS,QZSS), compass, manometer, temperature sensor, Acceleration sensor

Custom

Mode dial my set

Modes C1 and C2 can be accessed by mode dial

Copyright Settings

With

Input / Output

Remote controller connector

USB microB

HDMI connector

Micro HDMI (type D)

Wireless LAN

Built-in (IEEE 802.11 b / g / n)

PC interface

USB2.0 Hi-Speed

DC connector

USB micro B

Power Requirements

Battery

LI-92B Li-ion battery

AC Adapter

F-5AC

Number of recordable images

Approx. 340 shots (using Toshiba SDHC UHS-I Card Exceria with IS ON, based on CIPA test standards)

Battery life for movie recording

Approx. 50 minutes^[*](under standard JEITA testing)

Approx. 110 minutes (when zoom and other operational functions are not used)

When repeatedly recording at the maximum time of 29 minutes

Dimensions / Weight

Dimensions

W: 113 mm H: 66 mm D: 32.4mm

(based on CIPA standards: excludes protrusions)

Weight

Approx. 253 g (with a battery and memory card, based on CIPA standards)

Temperature

-10 - +40 (when in operation) / -20 - +60 (when stored)

Humidity

30 - 90% (when in operation) / 10 - 90% (when stored)

Operating Environment

Box contents

Body, USB cable, Hand Strap, instruction manual, warranty card, LI-92B Li-ion battery, F-5AC USB-AC adapter

Box contents

Box contents

Body, USB cable, Hand Strap, instruction manual, warranty card, LI-92B Li-ion battery, F-5AC USB-AC adapter


Projection Technology

3LCD Technology

Native Resolution

1920 x 1200 (WUXGA)

Aspect Ratio

16:10

Contrast Ratio

500000:1

Brightness

6000 ANSI Lumen (approx. 60% in Eco Mode)

Lamp

Laser Light Source

Lamp Life [hrs]

20000

Lens

F= 1.52.1, f= 17.227.6 mm

Lens shift

H:29, V:+60,-0

Keystone correction

+/- 30 manual horizontal / +/- 30 manual vertical

Projection Factor

1.23 2 : 1

Projection Distance [m]

0.8 13.5

Screen Size (diagonal) [cm] / [inch]

Maximum: 762 / 300"; Minimum: 76.2 / 30"

Zoom

Manual; x1.6

Focus Adjustment

Manual

Supported Resolutions

3840x2160 @ 30hz digital;

3840 x 2160 (Maximum resolution of digital input);

1920x1200 (Maximum resolution of analog input)

Connectivity

RGB (analog)

Input: 1 x Mini D-sub 15 pin

Digital

Input: 1 x HDBaseT; 2 x HDMI supporting HDCP

Audio

Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control

Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN

1 x RJ45; Optional WLAN

USB

1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply

Video Signals

NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

Remote Control

Remote Control

Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

Electrical

Power Supply

100-240 V AC; 50 - 60 Hz

Power Consumption [W]

357 (Normal) / 257 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by)

Mechanical

Dimensions (W x H x D) [mm]

480 x 122 x 407 (without lens and feet)

Weight [kg]

9.7

Fan Noise [dB (A)]

19 / 25 / 28 (ECO / Normal / High Bright)

Colour Versions

White


Projection Technology

3LCD Technology

Native Resolution

1920 x 1200 (WUXGA)

Aspect Ratio

16:10

Contrast Ratio 1

500000:1

Brightness 1

4500 ANSI Lumen

Lamp

Laser Light Source

Light Source Life [hrs]

20000 2

Lens

F= 1.52.1, f= 17.227.6 mm

Lens shift

H:29, V:+60,-0

Keystone correction

+/- 30 manual horizontal / +/- 30 manual vertical

Projection Factor

1.23 2 : 1

Projection Distance [m]

0.8 13.5

Screen Size (diagonal) [cm] / [inch]

Maximum: 762 / 300"; Minimum: 76.2 / 30"

Zoom

Manual; x1.6

Focus Adjustment

Manual

Supported Resolutions

3840 x 2160 (Maximum resolution of digital input);3840x2160 @ 30hz digital;1920x1200 (Maximum resolution of analog input)

CONNECTIVITY

RGB (analog)

Input: 1 x Mini D-sub 15 pin

Digital

Input: 2 x HDMI supporting HDCP

Audio

Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control

Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN

1 x RJ45; Optional WLAN

USB

1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply

Video Signals

NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

REMOTE CONTROL

Remote Control

Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

ELECTRICAL

Power Supply

100-240 V AC; 50 - 60 Hz

Power Consumption [W]

308 (Normal) / 222 (Eco) / 1.8 (Network Stand-by) / 0.3 (Stand-by)

MECHANICAL

Dimensions (W x H x D) [mm]

480 x 122 x 407 (without lens and feet)

Weight [kg]

9.7

Fan Noise [dB (A)]

22 / 24 / 27 (ECO / Normal / High Bright)

Colour Versions

White

ENVIRONMENTAL CONDITIONS

Operating Temperature [C]

5 to 40

Operating Humidity [%]

20 to 80

Storage Temperature [C]

-10 to 50

Storage Humidity [%]

20 to 80

ERGONOMICS

Safety and Ergonomics

CE; EAC; ErP; RoHS; TUEV Type Approved; TV GS

Speakers [W]

1 x 20 (mono)

ADDITIONAL FEATURES

Special Characteristics

Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Plug&Play W-LAN Option; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer; Virtual Remote for direct PC control

GREEN FEATURES

Ecological Materials

Downloadable manuals; ECO packaging

Ecological Standards

ErP compliant; RoHs compliant

WARRANTY

Projectors

3 years pan-European service

Light Source

3 years or 10000h (whatever comes first)
