BenQ MX611 Wireless Meeting Room XGA Business Projector
Overview
- Optional Accessories: QCast/QCast Mirror
- High Brightness of XGA 4000 ANSI Lumens
- Wireless Presentation via Simple Screen Mirroring
Optional

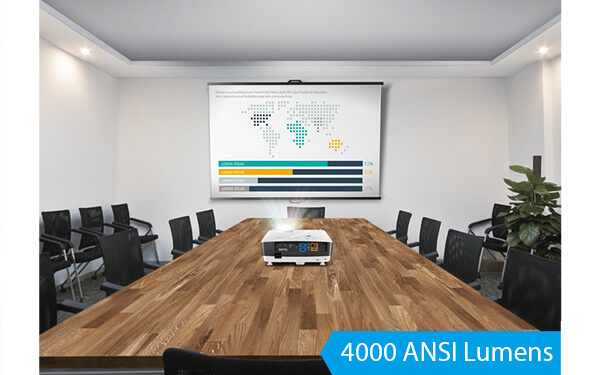

Vivid Clarity in Bright Medium-Sized Conference
Rooms
4,000 lumens of high brightness enable comfortable lights-on presentations to
promote discussion, collaboration, and note-taking in larger meeting rooms with
bright lights accommodating up to 20 participants. The high luminance lets even
participants seated furthermost clearly see the slides and boosts picture
quality with vibrant color for pictures and videos as well as crisp text and
fine details.
BenQ Business Projector MX611
Conventional Projector

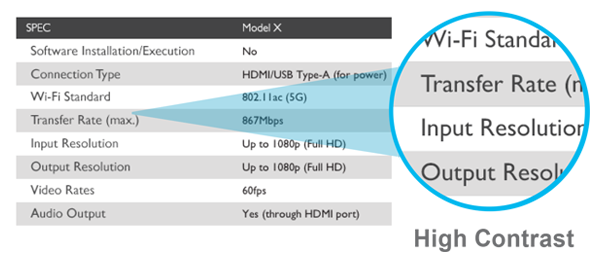

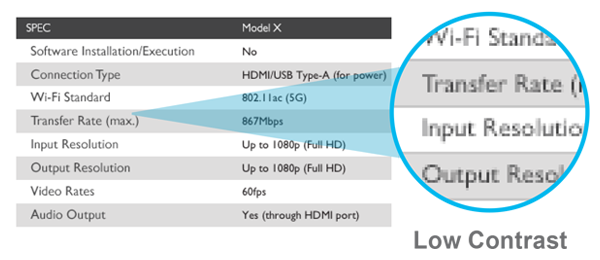

High Contrast for Clear Text
With industry-leading contrast and pixel fill factor, BenQ projectors produce
the truest blacks and unmatched readability with every character, graph, and
chart crisply defined. High fill factor increases clarity for black and white or
color images and reduces eye strain for presenters and audiences to stay focused
on the content.
Full HD Wireless Presentation Capability
BenQ projectors integrate with wireless solutions to eliminate cables for
maximum mobility and presentation flexibility, enabling easy content sharing
from any mobile or laptop device in BYOD work settings for enhanced teamwork in
truly interactive and collaborative meetings.
* Optional QCast and QCast Mirror dongles enable wireless presentation.

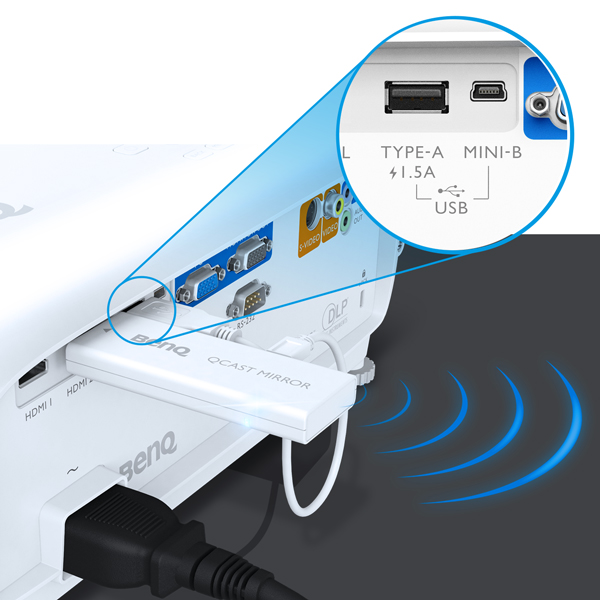

Integrated 1.5A USB Type-A Power Output
In addition to conveniently charging any mobile device, built-in 1.5A USB
Type A power output empowers accessories such as wireless HDMI dongles without
need for separate power adapters.
Universal Multi HDMI & VGA Connectivity
Dual HDMI inputs in addition to dual VGA inputs are purpose-engineered to
host multiple presenters and their laptop or mobile devices without taking time
to take turns. Multiple inputs enable meeting participants to collaborate
instantly without complicated adapters or time-consuming IT support.

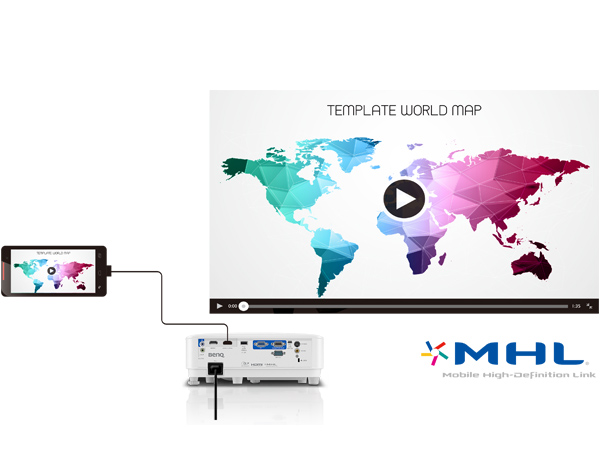

MHL Connectivity
MHL connectivity lets Android smart devices mirror documents, photos, videos,
or any other content via MHL cable to share ideas and presentations, while
charging the mobile device at the same time. In addition, MHL powers compatible
wireless dongles such as QCast for wireless presentations without additional USB
power cables.

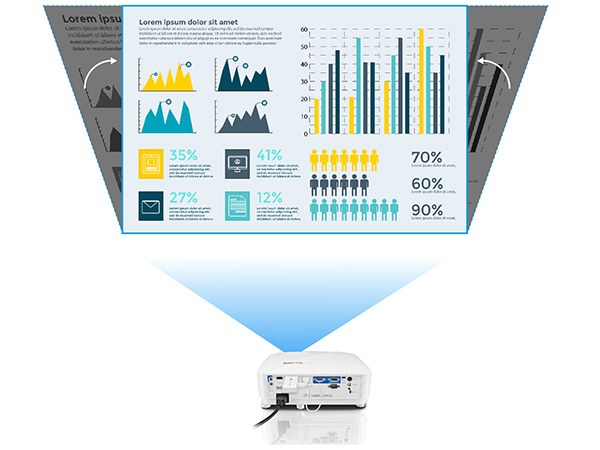

Vertical Keystone for Perfect Alignment
Countering the trapezoid effect when the projector must be placed off-center,
such as simple placement on top of a table, vertical keystone function adjusts
the image for a professionally squared image. Keystone correction makes it easy
to project ideally aligned images from a variety of locations.
Power Saving, Eco Friendly Optimization
The BenQ Eco Cycle System eliminates electricity waste, reduces power-up wait
time before and after meetings and minimizes maintenance for lower total cost of
ownership.

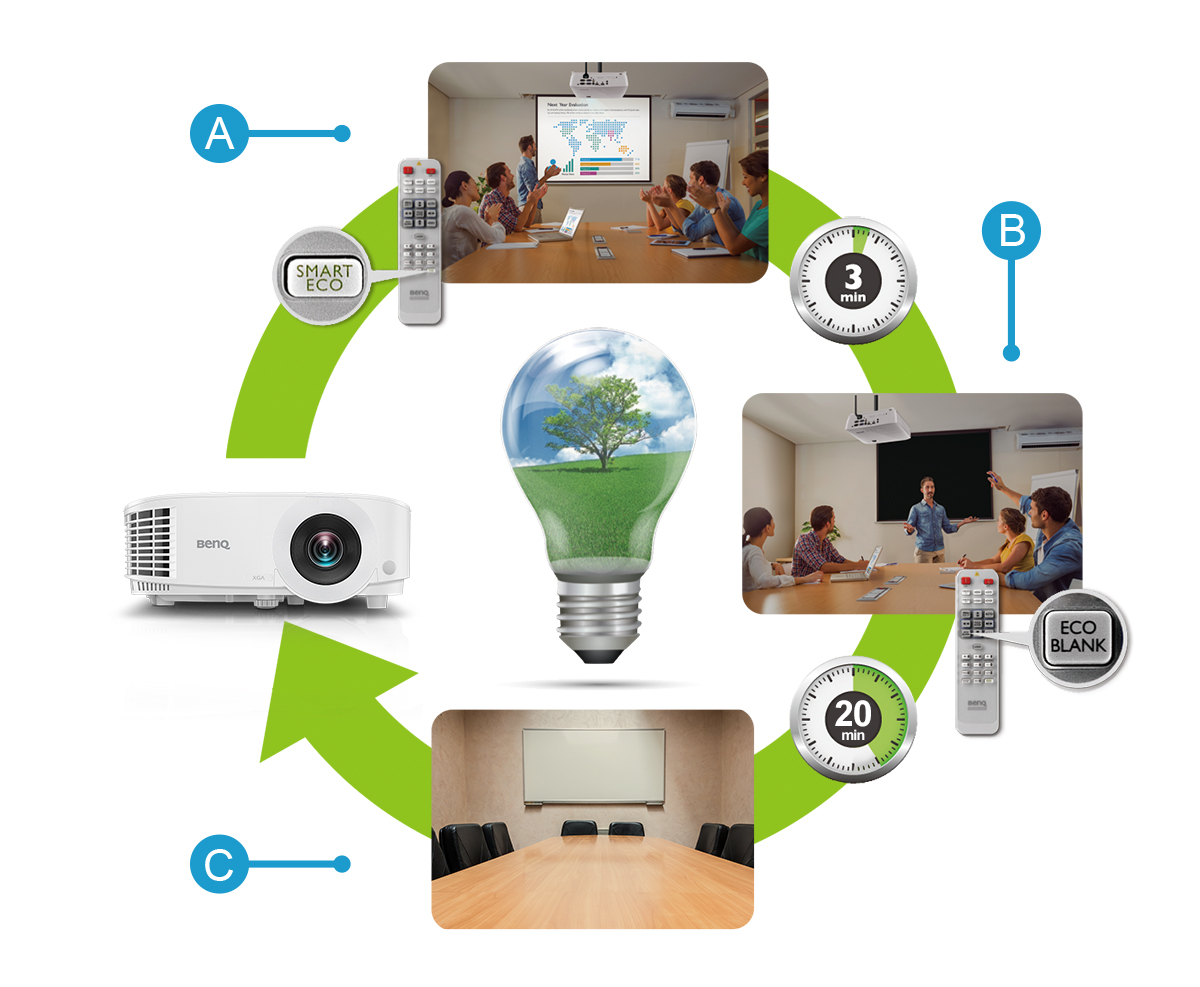

Eco Cycle System
- A. SmartEco Mode: SmartEco Mode analyzes input content to determine the
brightness required for optimal color and contrast performance, conserving up
to 70% lamp power while delivering the finest image quality without
compromise.
- B. Eco Blank Mode: When the projector detects no source content, Eco Blank
Mode automatically actives after 3 minutes of inactivity to eliminate
distractions and save energy.
- C. Auto Power Off: BenQ business projectors power down after 20 minutes of
inactivity to eliminate energy waste and concerns for teachers of leaving the
equipment on.
- Quick Tips: Eco Blank Mode and SmartEco Mode can be activated directly
using the remote control.
- 0.5W in Standby Mode
- When inactive, BenQ business projectors keep power consumption to a
minimum with 0.5W standby power, maximizing energy savings when the
projector is connected but not in use.
LampSave Mode
Fewer lamp replacements and maintenance translates into an overall lower cost
of ownership. LampSave Mode adjusts lamp power dynamically according to content
to extend projector lamp life up to 50% compared to normal mode.
Specifications
|
Display |
|
|
Projection
System |
DLP |
|
Resolution |
XGA(1024 x 768)
|
|
Resolution
Support |
VGA(640 x 480) to
WUXGA_RB(1920 x 1200) |
|
Brightness (ANSI
lumens) |
4,000
Lumens |
|
Contrast Ratio
(FOFO) |
20,000:1 |
|
Display
Color |
30 Bits (1,07 billion
colors) |
|
Native Aspect
Ratio |
Native
4:3 |
|
(5 aspect ratio
selectable) |
|
Light
Source |
Lamp |
|
Light Source
Wattage |
240W |
|
Light Source
life* |
Normal 4000
hr |
|
Economic 10000
hr |
|
SmartEco 8000
hr |
|
LampSave
15000hr |
|
Optical |
|
|
Throw
Ratio |
1.96-2.15 |
|
Zoom
Ratio |
1.1:1 |
|
Lens |
F = 2.56 ~
2.68 |
|
f = 22 ~ 24.1
mm |
|
Keystone
Adjustment |
1D, Vertical +/- 30
degrees |
|
Projection
Offset** |
110%2.5% |
|
Clear Image Size
(Diagonal) |
60"~180"
|
|
Size |
30"~300" |
|
Horizontal
Frequency |
15K~102KHz |
|
Vertical Scan
Rate |
23~120KHz |
|
Audio |
|
|
Speaker |
2W x
1 |
|
Interface |
|
|
PC
(D-sub) |
1 |
|
Monitor out (D-sub
15pin) |
1 |
|
S-Video in (Mini DIN
4pin) |
1 |
|
Composite Video in
(RCA) |
1 |
|
HDMI |
2 (1.4a one share with
MHL) |
|
USB Type
A |
1 (power supply, 5V,
1.5A) |
|
USB Type Mini
B |
1 (Download & Page
up/down ) |
|
Audio in (3.5mm Mini
Jack) |
1 |
|
Audio out (3.5mm Mini
Jack) |
1 |
|
RS232
(DB-9pin) |
1 |
|
IR
Receiver |
2(Front/Top) |
|
Security
Bar |
1 |
|
Compatibility |
|
|
HDTV
Compatibility |
480i, 480p, 576i, 576p,
720p, 1080i, 1080p |
|
Video
Compatibility |
NTSC, PAL,
SECAM |
|
Environment |
|
|
Power
Supply |
Typical Power
Consumption |
|
320W(Normal) |
|
Standby Power
Consumption |
<0.5W |
|
Acoustic Noise
(Typ./Eco.) |
34/29 dBA (Normal/Eco
mode) |
|
Operating
Temperature |
0~40 |
|
Dimension and
Weight |
|
|
Dimensions (W x H x
D)(mm) |
296 x120
x221 |
|
Net Weight (Kg/ lbs
) |
2.3
kg |
|
Accessories
(Standard) |
|
|
Carton |
Brown carton, Hand
carry type |
|
Carry
Bag |
Yes |
|
Remote Control w/
Battery |
1
(RCX014) |
|
Power Cord (by
region) |
x 1
(1.8m) |
|
User Manual
CD |
x 1
(24L) |
|
Quick Start
Guide |
x 1
(18L) |
|
Warranty Card (by
region) |
x
1 |
|
VGA(D-sub 15pin)
Cable |
x 1
(1.5m) |
|
Accessories
(Optional) |
|
|
Carry
Bag |
Yes |
|
Spare Lamp
Kit |
Yes |
|
Universal Ceiling
Mount |
Yes |
|
3D
Glasses |
Yes |
|
QCast HDMI
dongle |
Yes |
|
QCast Mirror
dongle |
Yes |
|
OSD |
|
|
OSD
Language |
30L |
