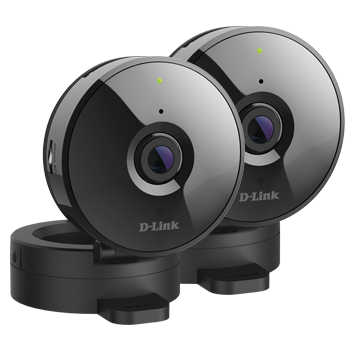

D-Link DCS-936L HD Wifi Camera

Features

• 720p HD Quality Video Rich detail and crisp image quality
• Sound and Motion Detection Push alert notifications when loud noises or movement is detected
• Local Recording MicroSD/SDXC card slot for local recording based on event triggers, schedules or continuously
• Wi-Fi Signal LED Locator LED guides you to the best camera placement within Wi-Fi range for reliable streaming and recording
• Night Vision See up to 16 feet in complete darkness with built-in IR LEDs

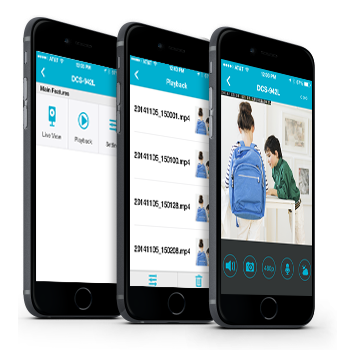

• Remote Viewing View on your iPhone, iPad, Android device or Windows phone with the mydlink Lite app

Remote Viewing

• Check in from anywhere on your mobile devices

16 ft. Night Vision

• Peace of mind shouldn't end when the sun goes down

Auto Recording

• Record now and review later on

Motion & Sound Detection

• You'll know as it happens with smart alerts sent to your phone

HD Video  - Crisp, clear live and recorded video so you never have to wonder

Wi-Fi Signal Locator - Find the best placement for optimal performance

Smart Alerts - Get push notifications sent to your phone so you know as it happens

120° Viewing - See more of your home with a wide angle lens

Simple Setup - Out of the box and into your home in minutes

No Monthly Fees - Affordable home security that doesn't nickel and dime

See more of your spaces.

With a 120 wide angle lens, you can see more of your rooms, pets and kids.

Home security in high definition.

Crisp 720p HD video gives you a clear view of what's going on at home. See more of your favorite faces and places - it's home security with an eye for detail.

Responsive recording.

Your camera begins recording automatically to a microSDXC card up to 128 GB when it senses changes in your home.

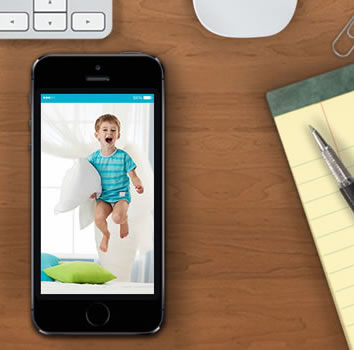

Be there. Even when you're not.

Check in on the people and places you love whenever you'd like with our free mydlink app.*

*The DCS-936L is not supported by or compatible with the mydlink Home app or mydlink Connected Home product series

Easy to set up. Even easier to expand.

Get your DCS-936L set up in minutes, and place it just about anywhere in your home. Easily add cameras to cover new spaces and new additions.

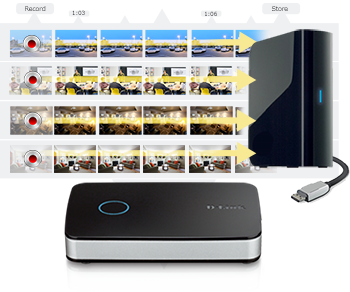

Build your own complete security system.

Connect the mydlink Camera Recorder and up to 2 hard drives to simultaneously stream and record up to 4 D-Link Wi-Fi cameras.

What's in the box

HD Wi-Fi Camera (DCS-936L)

microUSB Power Adapter

Mounting Screws

Quick Install Guide

Features

• Audio Detection Alerting
• HD 720p
• Motion Detection Alerting
• Night Vision (IR LEDs)
• On Camera Recording
• Wi-Fi Signal Locator LED

mydlink

• mydlink
• mydlink +
• mydlink Lite

Setting

• Indoor

Specifications

Camera Hardware Profile

• 1/4" 1-megapixel progressive CMOS sensor
• 16 ft night vision with infrared LEDs
• Minimum illumination: 0 lux with IR LEDs on
• Built-in Infrared-Cut Removable (ICR) filter module
• Built-in microphone
• 4x digital zoom
• Focal length: 2.45mm
• Aperture: F2.4
• Angle of view:
  • (H) 100
  • (V) 54
  • (D) 120

External Device Interfaces

• Power LED

• Reset button
• WPS button
• microUSB power connector
• microSD/SDXC card slot
• Wi-Fi signal locator LED

Image Features

• Adjustable image size, quality, frame rate and bit rate
• Adjustable brightness, saturation, contrast, sharpness and hue
• Configurable motion and sound detection
• Time stamp and text overlays
• Flip & mirror

Video Compression

• Simultaneous H.264/MJPEG format video compression
• JPEG for still images

Video Resolution

• 1280 x 720 at up to 30 fps
• 640 x 352up to 30 fps
• 320 x 176up to 30 fps

Audio Support

• PCM
• ADPCM

Mobile Support

• mydlink Liteapp available for iOS, Android devices and Windows Phones
• mydlink +app available for iOS and Android devices

Network

Network Protocols

• IPv4,ARP,TCP,UDP,ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP, UPnP port forwarding
• RTP, RTSP, RTCP
• HTTPs for configuration
• Bonjour

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

Physical

Dimensions (W x D x H)

• 1.89x 2.56 x 3.17 inches

Weight

• 0.31 lbs (camera only)

Power Input

• 5 V DC / 1.2 A, 50/60 Hz through power adapter

Temperature

• Operating: 0 to 40 C (32 to 104 F)
• Storage: -20 to 70 C (-4 to 158 F)

Humidity

• Operating: 20% to 85% non-condensing
• Storage: 20% to 85% non-condensing

Certifications

• CE
• CE LVD
• FCC Class B
• ICES
• C-Tick
