17/02

Brother LC-57PVP Photo Value Pack - 500 pages(Black), 400 pages(Colour) - For Brother DCP330C, MFC5860CN, MFC885CW, MFC685CW, DCP130C, DCP350C, DCP560CN, MFC665CW, DCP540CN, MFC440CN, MFC465CN and MFC2

Brother LC-57PVP Photo Value Pack



Overview

This full colour pack contains cyan, magenta, yellow and black standard yield ink cartridges, covering up to 500 pages for black and 400 pages for colour at 5% coverage. Cartridges are suitable for use with our DCP330C, MFC5860CN, MFC885CW, MFC685CW, DCP130C, DCP350C, DCP560CN, MFC665CW, DCP540CN, MFC440CN, MFC465CN and MFC240C printers. The pack also includes 40 sheets of 4 x 6 photo paper.

Choose the right ink/toner for your pattern of ink/toner use

  • You need the ink/toner that will be most cost effective for your level of printing. Below, we explain the terms standard yield, high-yield, and super-high-yield.
  • The more printing you do, the more cost-effective youll find it to buy cartridges that print more pages. Our estimates are based on 5% coverage.

What Does 5% Coverage mean?

5% coverage is a measure that most printer manufacturers use to calculate the number of pages that can be printed with one cartridge. It means that 5% of the whole page is covered in ink or toner. When doing the calculation, printer manufacturers assume basic type with no bold characters, no graphics, and no pictures.

What does standard yield mean?

  • The ink or toner cartridge prints a standard number of pages at 5% coverage.

What does high-yield mean?

  • A high-yield cartridge will print more pages than a standard yield cartridge. Although the initial outlay is higher, the cost per page is lower.

What does super-high-yield mean?

  • Super-high-yield cartridges give you an even lower cost per page, because they print even more pages.

A note on non-genuine consumables

Brother has the most responsive customer warranty offer in the market. Part of our commitment to you, is to provide exceptional service and unrivalled warranty support. We do this by offering a 4 year on-site warranty if you use genuine Brother consumables.

We at Brother are aware of some compatible and refill companies suggesting that your Brother warranty is preserved, even if you should use non-genuine Brother inks and toners.

This misrepresents the situation the use of non-genuine consumables will affect a warranty claim for any of the direct printing functions of your printer. We are not able to guarantee the performance of other peoples products, or the damage they might cause, if used in our machines.

In the event you chose to use compatible or refilled products in your Brother machine, your eligibility to participate in our 4 year onsite warranty promise becomes void. While your warranty would reduce to a standard 12 months Return To Base warranty, even this would not apply if the presenting fault is attributable to the non-genuine consumable you used.

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

BenQ LU9715 BlueCore Laser Projector - 1920x1200 WUXGA, 8000 Lumens, 100000:1, 20000Hrs, VGA, HDMI, DVI

Benq LU9715 BlueCore Laser Projector



Overview

BlueCore Laser Projector from the World's No.1 DLP Brand

The BenQ LU9715 BlueCore Laser Projector is the brightest choice for large venue applications.BenQ LU9715 delivers 8000 ANSI-lumen brightness and 100,000:1 contrast ratio for superior viewing experiences even under bright ambient lighting. The BlueCore laser engine provides significantly improved color performance through a dual color wheel system, support for 360 and portrait installation, and 24/7 operation for expanded application opportunities. LU9715 is also compatible with a selection of lenses for a wide range of installation possibilities, to captivate audiences and accommodate the diverse needs of museums, entertainment venues and large enterprise spaces.

Features

  • Ultra High Brightness up to 8,000 ANSI Lumens and 100,000:1 Contrast Ratio
  • Perfect Performance up to 20,000 Hours with BlueCore Laser Light Source
  • 360° and Portrait Projection Accommodate Different Spaces
  • Built-in Edge Blending and Geometric Correction
  • 8 Optional Lenses for Diverse Applications

Professional BlueCore Laser Projectors from the World’s #1 DLP Brand

f0301

BenQ, the worlds #1 DLP brand, introduces a full line of innovative projectors featuring proprietary BlueCore 1-chip DLP high brightness laser technology for large venue applications. Combining high brightness, excellent image quality courtesy of dual color wheel projection, installation flexibility, and a maintenance-free laser light source, BenQ BlueCore Laser Projectors enable immersive public displays and innovative visual communication in ways never before possible.

BlueCore Laser Technology

BenQ feature

Superior Image Quality

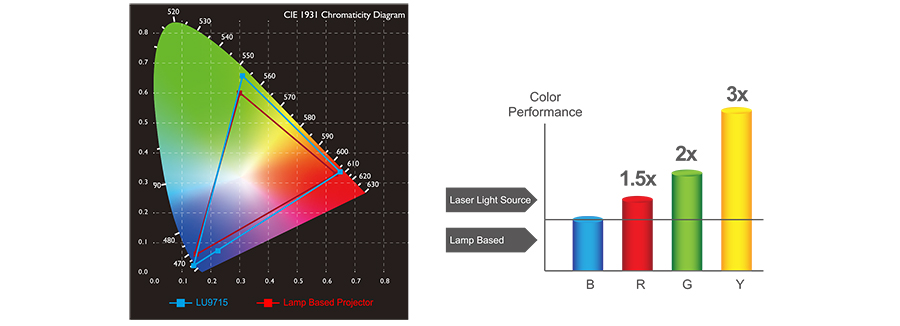

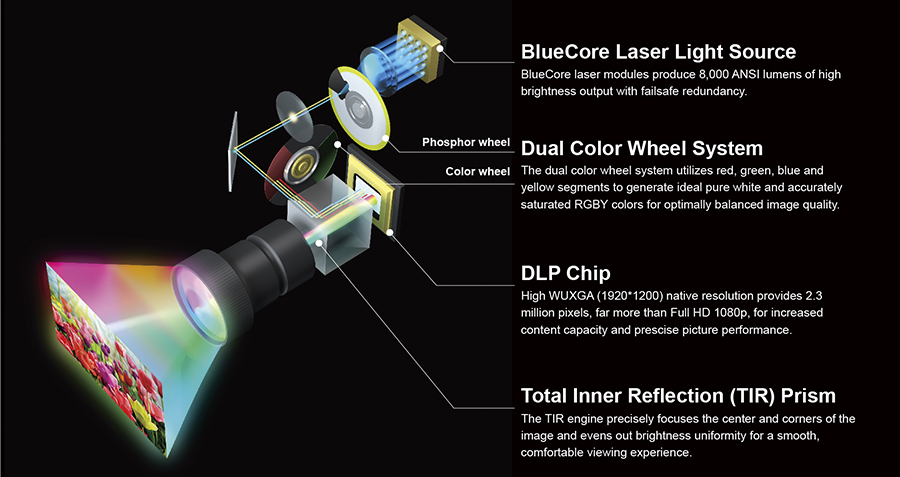

BlueCore Laser for Pure Color

LU9715_feature

To harness the high output of the powerful blue laser light, BenQ engineers utilized dual color wheels for BlueCore Laser Projectors to significantly improve pure white and brightness which is ideal for presentations. In addition to strikingly clear and bright white, pure RGBY colors are achieved by eliminating the white segment of a conventional color wheel to produce an ideal mixture of the red, green, blue and yellow color segments. Through this optimization of RGBY colors, BenQ Laser Projectors produce brilliant color and a wider range of color gamut.

The Ultimate Impact of Ultra-High Contrast

BenQ feature

BenQ BlueCore Laser Projectors directly control light output for faster response and strikingly clear images at a super-high contrast ratio of 100,000:1 with automatic brightness adjustments to retain clarity and subtle details in dark scenes and balance in bright scenes.

BlueCore Laser Projectors also feature spontaneous response, requiring no wait to turn on or resume from blank function which further accomplish True Black for any flexible performance use.

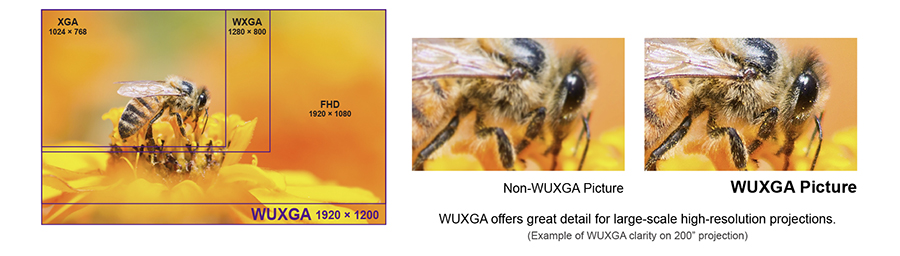

WUXGA Resolution for Enhanced Detail and Expanded Content

BenQ feature

With an impressive WUXGA native resolution (1920 x 1200) that far exceeds Full HD 1080p, BenQ LU9715 BlueCore Laser Projector offers greater detail and stunning clarity image when high-resolution images are projected.

Enduring Reliability

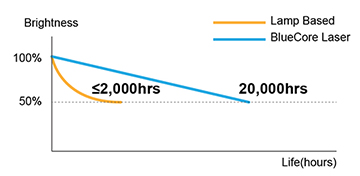

Guaranteed Performance for 20,000 Hours

BenQ feature

newfeatures

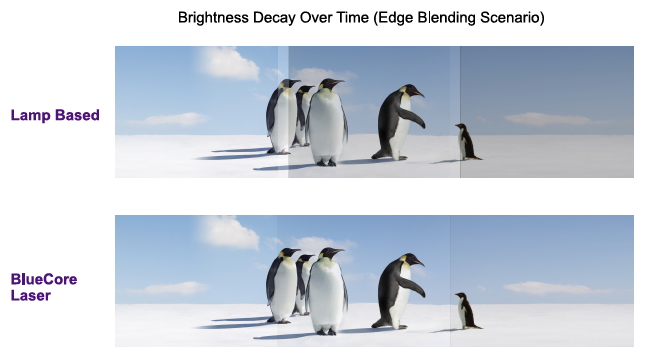

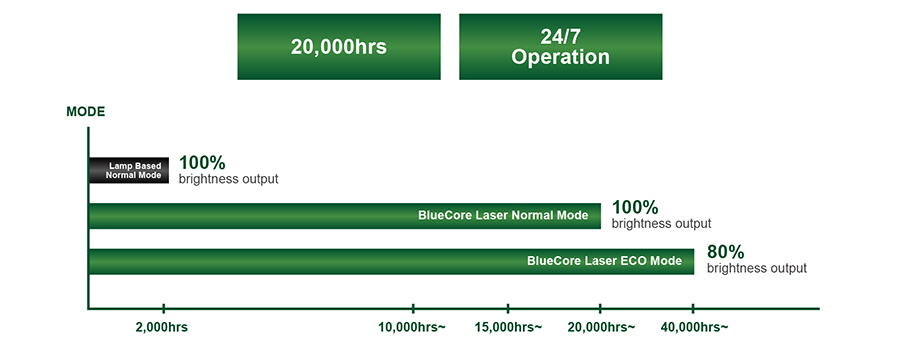

BenQ BlueCore Laser Projectors are guaranteed for 20,000 hours of superior image quality and brightness performance. The laser light source resists color decay over time, making BenQ Laser Projectors ideal for multiple blending projections without concern that adjacent projectors may generate different levels of brightness after a period of operation.

BenQ Laser Projectors support continuous 24/7 operation and are suitable for applications in museums or public exhibitions.

BenQ feature

DLP Virtually Eliminates Color Decay

BenQ feature

BenQ Laser Projectors are based on the absolute reliability of one-chip DLP design. The highly durable DLP chip is rated to last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text for the duration.

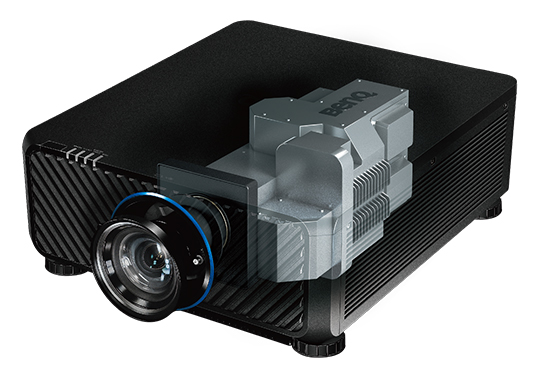

Superior Dustproofing for Severe Conditions

LU9715_feature

BenQ BlueCore Laser Projectors are designed with air-tight sealed laser modules and enclosed light engines to protect the DMD chip and all internal components. BenQ Laser Projectors are then tested to be dustproof under the most extreme conditions.

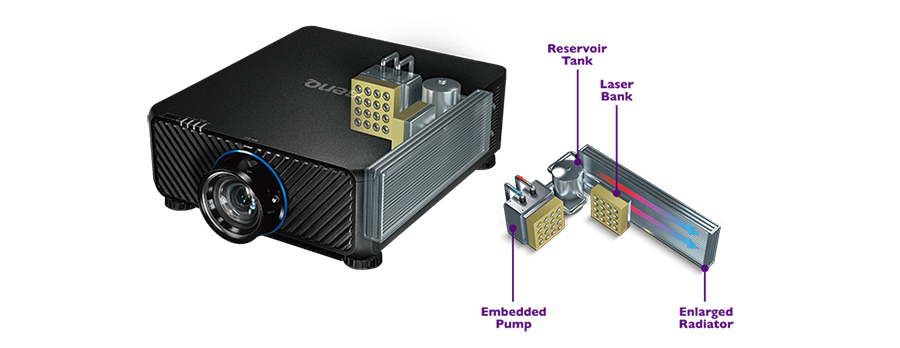

Advanced Liquid Cooling System

LU9715_feature

BenQ LU9715 BlueCore Laser Projector is designed to protect the laser engine even after constant operation in ambient temperatures up to 40C (104F). The innovative liquid cooling system operates by heat extraction, producing a smooth, comfortable sound without the harsh noises of fan-based projectors.

Excellent Installation Flexibility

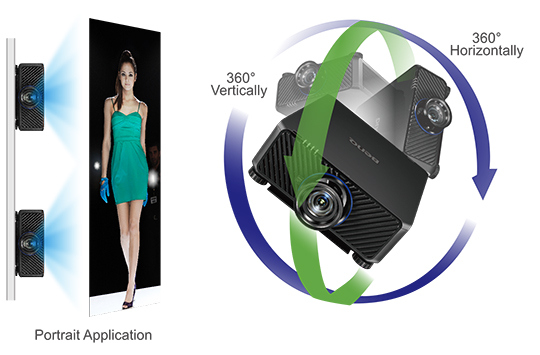

360° and Portrait Projection Accommodate Different Spaces

LU9715_feature

BlueCore laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360 rotation and portrait applications, allowing projection onto ceiling, walls, floors or angled signage.

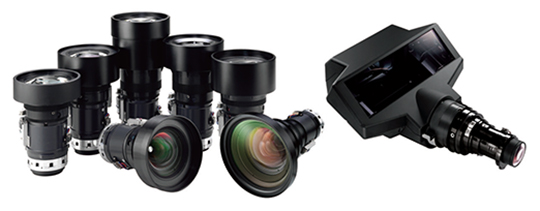

Multiple Lenses for Diverse Applications

LU9715_feature

BenQ LU9715 BlueCore Laser projector can accept up to eight selectable optional lenses. All-glass optics made in Japan eliminate chromatic aberration and color flare for utmost image quality. Maximize installation options and projection layout, a quick one-button release makes changing lenses simple and secure.

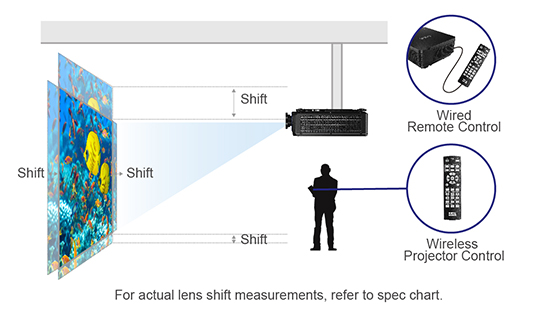

Motorized Zoom, Focus, Lens Shift and Memory

BenQ feature

The convenience and wide range of the powered zoom, focus and horizontal/ vertical lens shift systems deliver perfectly proportioned images despite installation or placement challenges in any venue. Customizable memory enables multiple settings to be conveniently recalled to optimize projection characteristics to a variety of content and application.

Integrated Edge Blending Support

LU9715_feature

BenQ feature

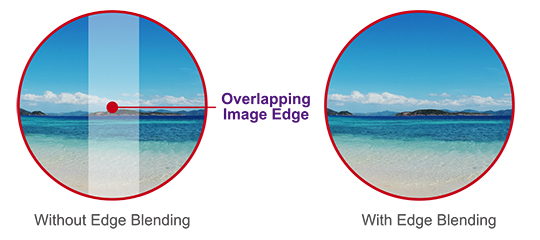

Edge Blending accounts for the intersecting area between adjacent images to adjust the brightness of the overlap at the edges to make multi-screen projection truly seamless. Color Matching function can then be used to calibrate any small differences in the color output profile of each projector. Moreover, LU9715 features Picture-in-Picture (PIP) and Picture-by-Picture (PBP) for enhanced multi-source projection.

Geometric Correction

LU9715_feature

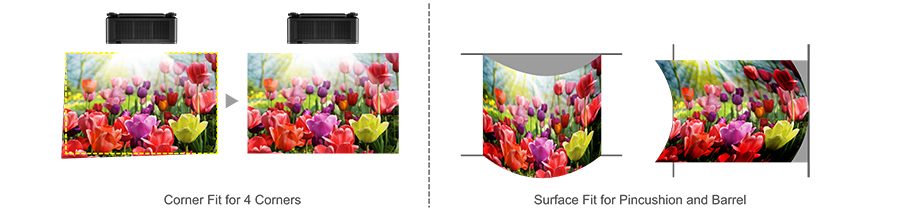

Corner fit for 4 corners and Surface fit for pincushion and barrel offer convenient control to form perfectly aligned images. Corner fit offers individual adjustment of each corner to fit the image into difficult corners, and surface fit enables alignment onto uniquely shaped or curved projection surfaces.

Compatibility Support

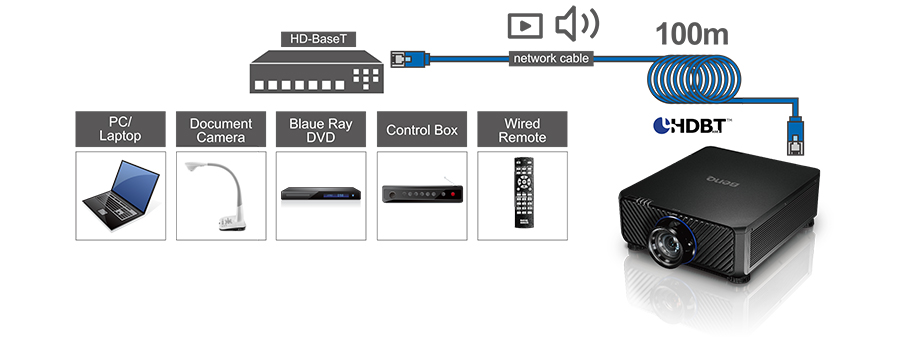

HDBaseT Support

LU9715_feature

Groundbreaking HD Connect connectivity combines video, audio, and device control signals from multiple sources including PCs, laptops, document cameras, Blu-ray, DVDs onto a signal CAT5 cable, capable of lossless transmissions up to 100 meters.

Full Connectivity Across Formats

LU9715_feature

BenQ LU9715 BlueCore Laser Projector is comprehensively equipped with VGA, DVI, HDMI, LAN and 3G-SDI widely used in the media and broadcast industry to transport uncompressed digital video signals - as well as one-cable HDBaseT technology for high-quality connections to a variety of devices and video sources.

Network Control and Management

Network/Web Control

LU9715_feature

BenQ BlueCore Laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.

Stay in Control with BenQ MDA Software

LU9715_feature

BenQ Multiple Display Administrator (MDA) software dashboard enables projector control, identification and task management from a single computer. MDA can simplify routines such as opening and closing procedures with scheduling features and by allowing remote power on and off.

User Advantage

Laser Light Creates Value Over Time

LU9715_feature

LU9715_feature

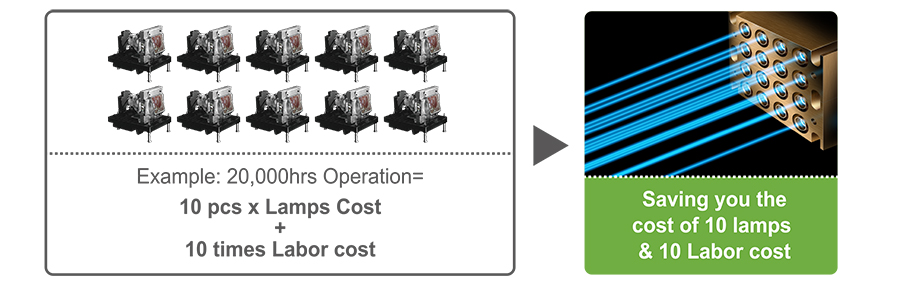

The laser light source of BenQ BlueCore Laser Projectors are guaranteed for 20,000 hours of maintenance-free operation, saving on lamp replacement and maintenance costs. Based on the average brightness cut off of typical long-life lamps, BlueCores value exceeds that of 10 lamp replacements over the life of the projector.

Blank Function for Versatile Presentation

LU9715_feature

BenQ BlueCore Laser Projectors feature full direct control of laser light output, achieving true black in Blank Function light intrusion and customized energy conservation. Full laser output control also enables spontaneous response, requiring no wait to turn on or resume from Blank Function.

Custom Light Mode

Custom Light Mode modulates light power output from 20% to 100% to optimize the projected image to a variety of ambient lighting situations, especially useful for blending consistent brightness across multiple projections.

Quick On/Off

BlueCore laser powers up in half the time of a lamp-based projector, reducing wait time and power consumption. Quick On/Off is ideal for multi-projector venues such as museums and galleries to shorten opening and closing procedures.

BenQ DLP Projectors Perfectly Long Lasting Picture Quality with DLP Projection Technology

Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscarstatuette), is the leading projection technology used in 90% of worlds digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is today the #1 bestselling DLP projector brand, delivering unmatched world-class performance.

Long Lasting

LU9715_feature

LU9715_feature

The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed DLP engine design mean that BenQ DLP Projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change

Razor-Sharp

LU9715_feature

Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco Technology.

ecoFACTS Label

BenQ feature

ecoFACTS can tell you how eco-friendly BenQ products are! Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products! ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Specifications

Projection System‎

DLP‎

Native Resolution‎

WUXGA (1920 x 1200)‎

Brightness (ANSI Lumens)‎

8000 lmns ‎

Contrast Ratio‎

100,000:1*‎

Display Color‎

1.07 Billion Colors‎

Aspect Ratio‎

Native 16:10 {5:4/4:3/16:10/16:9/1.88/2.35/Theaterscope/Source(Auto)/Unscaled(Real) selectable}‎

Throw Ratio‎

Ultra Short Throw(5J.JCY37.002)0.38:1

Wide Fix(5J.JAM37.011)0.76:1

Ultra Wide (5J.JAM37.061)0.75~0.93:1

Wide Zoom(5J.JAM37.021)1.25~1.79:1

Standard(5J.JAM37.001)1.73~2.27:1

Semi Long(5J.JAM37.051)2.22~3.67:1

Long Zoom1(5J.JAM37.031)3.58~5.38:1

Long Zoom2 (5J.JAM37.041)5.31~8.26:1‎

Image Size (Diagonal)‎

80"~500" (Standard lens)‎

Zoom Ratio‎

Ultra Short Throw (5J.JCY37.002)Fixed

Wide Fix(5J.JAM37.011)Fixed

Ultra Wide (5J.JAM37.061)1.25:1

Wide Zoom(5J.JAM37.021)1.41:1

Standard(5J.JAM37.001)1.3:1

Semi Long(5J.JAM37.051)1.65:1

Long Zoom1(5J.JAM37.031)1.5:1

Long Zoom2 (5J.JAM37.041)1.55:1‎

Lens Shift‎

Ultra Short Throw (5J.JCY37.002)53.5-63.5% Vertical; +-5% Horizontal

Wide Fix(5J.JAM37.011)NA

Ultra Wide (5J.JAM37.061)0-50% Vertical; +-6.7% Horizontal

Wide Zoom(5J.JAM37.021)0-50% Vertical; +-10% Horizontal

Standard(5J.JAM37.001)0-50% Vertical; +-10% Horizontal

Semi Long(5J.JAM37.051)0-50% Vertical; +-10% Horizontal

Long Zoom1(5J.JAM37.031)0-50% Vertical; +-10% Horizontal

Long Zoom2 (5J.JAM37.041)0-50% Vertical; +-10% Horizontal ‎

Keystone Adjustment‎

2D, Vertical & Horizontal ± 30 degrees ‎

Resolution Support‎

VGA(640 x 480) to WUXGA(1920 x 1200)‎

Horizontal Frequency‎

15k~92kHz‎

Vertical Scan Rate‎

23~85Hz‎

HDTV Compatibility‎

480i, 480p, 576i, 576p, 720p, 1080i, 1080p‎

Weight (Without Packing / With Packing)‎

28KG (Lens excluded)‎

Dimensions (W x H x D mm)‎

500 x 211 x 583 mm‎

Interface‎

Computer 1 in (D-sub 15pin)x 1

Computer 2 in (5BNC, R/G/B/H/V)x 1

Monitor out (D-sub 15pin)x 1

HDMI (1.4a) x 1 (Compatible with HDCP)

DVI-D inx 1 (Compatible with HDCP)

LAN (RJ45)x 1 (LAN Control)

3G-SDIx 1 (Input/Output)

HDBaseTx 1 (Shared with RJ45)

DisplayPortx 1

Triggerx 1

RS232 (DB-9pin)x 1

3D Syncx 1 (Out)

Wired Remotex 1

IR Receiverx 2 (Front+Rear)‎

Power Consumption‎

885W (max): Standby Power <0.5W‎

Audible Noise (Normal/Economic Mode)‎

40/37dB‎

Picture Modes‎

Bright/Presentation/Cinema‎

Lightsource Type‎

Laser Diode‎

Light Source Life (Normal/Eco)‎

20,000/45,000‎

Lens (Lens not included)‎

Ultra Short Throw (5J.JCY37.002)F=2.0, f=5.64 mm

Wide Fix(5J.JAM37.011)F=1.85, f=11.6mm

Ultra Wide (5J.JAM37.061)F=1.96~2.3mm

Wide Zoom(5J.JAM37.021)F=1.85~2.5, f=18.7~26.5mm

Standard(5J.JAM37.001)F=1.7~1.9, f=26~34mm

Semi Long(5J.JAM37.051)F=1.86~2.48, f=32.9~54.2mm

Long Zoom1(5J.JAM37.031)F=1.85~2.41, f=52.8~79.1mm

Long Zoom2 (5J.JAM37.041)F=1.85~2.48, f=78.5~121.9mm‎

On-Screen Display Languages‎

ENGLISH/ / FRANÇAIS/ ESPAÑOL/ DEUTSCH/ ITALIANO/ / / / РУССКИЙ/Português/ svenska(12 Languages)‎

Accessories (Standard)‎

Remote Control without Battery

Wired Remote Cable

VGA(D-sub 15pin) Cable

Power Cord (by region)

User Manual CD

Quick Start Guide

Warranty Card (by region)

Anti-theft Screw‎

Accessories (Optional)‎

Ultra Short Throw (5J.JCY37.002)

Wide Fix(5J.JAM37.011)

Ultra Wide (5J.JAM37.061)

Wide Zoom(5J.JAM37.021)

Standard(5J.JAM37.001)

Semi Long(5J.JAM37.051)

Long Zoom1(5J.JAM37.031)

Long Zoom2 (5J.JAM37.041)‎

Power Supply‎

AC 100-130V, 50 to 60Hz

AC 200-240V, 50 to 60Hz‎


Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

Kingston 16GB Ironkey S1000 Flash Drive - USB3.0, Basic Silver


- 400MB/s Read, 300MB/s Write

Kingston IKS1000E/16GB 16GB Ironkey S1000 Flash Drive



Overview

Uncompromising data security. Available in Basic and Enterprise models

Kingston IronKey S1000 meets the strictest standards to make it the ultimate security drive. Safeguard 100 per cent of confidential data with 256-bit AES hardware-based encryption, in XTS mode, and FIPS 140-2 Level 3 validation with on-device Cryptochip Encryption Key management. The drive detects and responds to physical tampering and provides automatic data protection upon drive removal. For added peace of mind, the drive uses digitally-signed firmware that makes it immune to BadUSB. The drive locks down after ten invalid password attempts and there is also the option to reformat or destroy the drive.

Basic model

Available in 4GB to 128GB1 capacities, the S1000 basic model provides fast USB 3.02 performance and enhanced, hardware-based security without compromise. Meeting the most stringent standards for military-grade strength and durability, the drive is built with an anodised aluminium enclosure and epoxy-filled casing. Dust- and shock-resistant, the S1000 is waterproof to MIL-STD-810F standards.

Enterprise model

In addition to the basic model qualities, the S1000 enterprise version offers central administration of drive access and usage across thousands of IronKey enterprise drives with the intuitive, easy to use, secure online interface.3 Using an activated licence and available IronKey EMS by DataLocker, the drive works with either cloud-based or on-premises servers to remotely enforce password and access policies, allow users to recover lost passwords and even let administrators repurpose drives no longer in use.

  • Enhanced hardware-based security
  • FIPS 140-2 Level 3
  • Centrally manage drive access and usage
  • Ruggedised secure casing
  • Fast performance

Features/Benefits

  • Strictest data security around - Secure lock helps comply with a growing list of regulations and standards including FIPS, GLBA, HIPPA, HITECH, PCI, GTSA.
  • Military-grade strength and durability - For a drive built to last.
  • Easily manage thousands of IronKey drives - Easily manage thousands of IronKey drives
  • 128GB of storage space - Securely carry the biggest datasets and files.

Specifications

Interface

USB 3.0

Capacity

16GB

Speed

USB3.0: max read: 400 MB/s, max write: 300 MB/s

USB 2.0: 30MB/s read, 30MB/s write

Dimensions

82.3mm x 21.1mm x 9.1mm

Waterproof

up to 3 ft; MIL-STD-810F

Operating Temperature

0Degree C to 70Degree C

Storage Temperature

-40Degree C to 85Degree C

Compatibility

USB 3.0 compliant and 2.0 compatible

Minimum system requirements

USB 3.0 compliant and 2.0 compatible

two (2) free drive letters required for use

ironKey EMS by DataLocker licence from DataLocker required

(Enterprise version only)

Warranty/support

5-year warranty, free technical support

Compatibility Table

IronKey S1000 Enterprise model

Windows 10, 8.1, 8, 7(SP1)

Yes

Mac OS X v.10.9.x 10.12.x

Yes

Linux v.2.6.x+

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

NEC NP34ZL Zoom Lens - For NEC PX602WL and PX602UL Projectors

NEC NP34ZL Zoom Lens for the NEC PX602WL and PX602UL Projectors



Specifications

Zoom Ratio

1.28

Projection Ratio

0.95 - 1.22:1 (PX602UL) 1.00 - 1.28:1 (PX602WL)

Focal Length

14.03 - 17.96 mm

Aperture

2.3 - 2.57

Screen Size

50 - 300 inch

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

ACTi D31 Outdoor Bullet Camera - 1 Megapixel, Progressive Scan CMOS, Bullet, Day / Night, 30 fps at 2048 x 1536, H.264 (Baseline/ Main/ High profile), MJPEG, Dual Streams, Adaptive IR - White

ACTi D31 Bullet Camera



Specifications

Device

Product Type

Bullet

Maximum Resolution

1MP

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/4 "

Effective Pixels

1280(H) X 800(V) (1.02 MP)

Day / Night

Yes

Low Light Sensitivity

Standard

Minimum Illumination

Color: 0.1 lux at F1.8 (30 IRE, 2400 K); B/W: 0 lux at F1.8 (IR LED on)

Color to B/W Switch

ISP based switch, configurable

Mechanical IR Cut Filter

Yes

IR Sensitivity Range

700-1100nm

IR LED

Adaptive IR LED

IR Working Distance

20m

Electronic Shutter

1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)

Horizontal Resolution (TV Lines)

700 TVL

S/N Ratio

52 dB

Lens

Focal Length

Fixed focal, f4.2mm

Aperture

F1.8

Iris

Fixed iris

Focus

Fixed focus

Lens Mount

Board mount

Horizontal Viewing Angle

55.9

Vertical Viewing Angle

31.7

Video

Compression

H.264 (Baseline/ Main/ High profile), MJPEG

Maximum Frame Rate vs. Resolution

30 fps at 1280 x 720

30 fps at 800 x 600

30 fps at 640 x 480

15 fps at 320 x 240

Multi-Streaming

Simultaneous dual streams based on two configurations

Bit Rate

28Kbps - 6Mbps (per stream)

Bit Rate Mode

Constant, Variable

Image Enhancement

White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless

Digital Noise Reduction

DNR

Privacy Mask

4 configurable regions

Text Overlay

Yes

VMS-based Analytics

Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Flip, Mirror

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (3 regions),

Event Response

Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Upload video or snapshot to FTP server, Upload video to NVR server

Integration

Unified Solution

Fully compatible with ACTi software

Software Development Kit

Yes

GPS Position

Manual setting

ONVIF Compliant

Yes, Profile S

GB28181 Compliant

Yes

Web Browser

IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Auto Firmware Upgrade

Yes

Interface

Local Storage

No

General

Power Source

PoE Class 2 (IEEE802.3af)

Power Consumption

3.77 W (PoE, IR on)

Weight

515g (1.14lb)

Dimensions

( x L): 77mm x 176mm (3.03" x 6.9")

Environmental Casing

Weatherproof (IP66)

Bundled Accessories

Bracket

Mount Type

Bracket, Pole Mount, Corner Mount

Starting Temperature

-20C ~ 50C (-4F ~ 122F)

Operating Temperature

-40C ~ 50C (-40F ~ 122F)

Operating Humidity

10% - 85% RH

Warranty

2 Year(s)

Approvals

CE, FCC, IP66, UL (for optional PoE injector)

Extended Warranty

3 Year(s)

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

BenQ Replacement Lamp - To Suit BenQ MS521/ MX522/ MW523 Projector

BenQ 5J.JA105.001 Genuine Replacement Lamp for MS521/ MX522/ MW523

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

Pelican 1662 3 pc. Pick 'N' Pluck Foam Set Only

Pelican 1662 3 pc. Pick 'N' Pluck Foam Set Only



Description

Pelican 1662 3 pc. Replacement Pick 'N' Pluck Foam Set for the 1660 Case

Link contains in-depth information about this product Link contains a picture of this product    NA
17/02

Swann SWDVK-845804-AU 8 Channel Security System - With 4x Security Cameras


- 102 Degree, 1080p(2MP), 1TB HDD, HDMI, VGA, RCA(In)(1), RCA(Out)(1), RJ45(1), USB2.0(2), USB3.0(1), Night Vision, IP66

Swann SWDVK-845804-AU 8 Channel Security System



Features

Resolution

1080p (2MP)

Night Vision Distance

100ft/30m

Viewing Angle

102°

Camera Outdoor Rating

IP66, Weatherproof

DVR HDD Size

1TB (Up to 1 year recording)

Cable Type

BNC (DVR)

App

HomeSafe View, View 24/7

Warranty

12 Months



Overview

Innovative Thermal-Sensing Motion Detection Technology

This system features Swanns True Detect PIR Thermal Sensing technology to reliably detect heat-generating moving objects, such as people, large pets & cars. With more accurate motion detection you have more reliable notifications & recording, eliminating false triggers such as falling leaves, bugs, rain & more, saving you hard drive space & playback time.

Youll always know whats happening with Swanns surveillance technology. The 1080p live and recorded video is 4.5x better than the DVD quality (960H or 480p) used in most DIY home security systems. Peace of mind comes from being able to see activity in Full HD, with easy identification of facial detail, license plates and clothing patterns.

Massive 1TB HDD for 365 days of recordings

Based on accurate sensing of security events involving people, at lowest motion settings, this will be enough for over 365 days of footage. With such massive storage, you can come back from your long holidays and still find recordings from quite a while back.

Cameras

This CCTV system comes with 4 weatherproof PRO-1080MSB security cameras built tough for the outdoors or indoors. See in the dark up to 30 meters with the cameras powerful infrared night vision.

The cameras come with BNC cables. If your property has existing BNC cables, we advise you to test your new system for 2 days with the existing cables before full installation. For optimum performance, we recommend you use the new cables supplied.

Expand your kit by adding up to 4 more cameras for a complete 8 channel home security system, suitable for medium-sized businesses & detached homes for monitoring indoors & outdoors.

Convenience

The HomeSafe Views app ensures youll always be connected to your home or business, allowing you to see the cameras on your phone or tablet. You can even search the recordings to play them back, wherever you are in the world.

Keep an eye on your kids, babysitter, tradespeople, pets and everything else that matters to you and your family. If you have a business, you can always see the cashier, storeroom, warehouse and check in on your staffs safety and performance. And of course, in case anything happens, youll have video evidence in 1080p Full HD.

True Detect Thermal Sensing Security System

With True Detect Thermal Sensing technology, this security system can detect moving warm objects, such as people & cars, to trigger recording & alerts, increasing the relevance of recordings & eliminating false triggers.

Video Resolution Chart

Innovative True Detect Motion & Heat-Sensing

True Detect is a step up from the traditional Motion Detection technology. The camera has a PIR sensor, the same technology used in alarm systems, to detect moving heat-generating objects, such as people, large animals & cars, to trigger recording and alerts. True Detect eliminates false triggers from traditional Motion Detection, such as leaves falling, small birds & plants moving with the wind.

Accurate Push Notifications

Thanks to the high detection accuracy delivered by the True Detect Thermal Sensing technology, smartphone push notifications will be really relevant to the user, as notifications will only be triggered if a large warm moving object is detected by the PIR (passive infrared) sensor. This way you can know if theres someone roaming around your driveway or backyard.

Crime Prevention: the true value of True Detect

Pixel-based Motion Detection tends to generate a lot of false triggers, such as plants moving and birds. If your DVR is set up to email you in every Motion Detection event and most of events are irrelevant, youll most likely turn the email alerts off, and when real security incident happens, youll only find out when you get home

With True Detect, Motion Detection is only triggered by heat-generating objects, like people and cars, which represent a real threat to your property. When an event is detected, youll get a push notification on HomeSafe View app, allowing you to see the scene in real time and act swiftly to prevent any security incidents which could have had a much higher financial impact than the cost of this security system.

Scenario

Pixel
Motion Detection

Thermal Sensing
Motion Detection

Any movement in the image triggers recording: birds, plants moving etc

Only heat-generating objects trigger recording: people, cars etc

Tree moves with wind:
REC
It records
Not Relevant
Tree branches moving with wind trigger an irrelevant recording
No recording
No False Trigger
Tree doesnt trigger recording because its not a warm object
Person walks through:
REC
It records
Relevant
Movement from tree, dogs & person triggers recording
REC
It records
Relevant
Moving person triggers recording because its a large warm object
Bedsheets move:
REC
It records
Not Relevant
Bedsheets moving due to wind trigger irrelevant recording
No recording
No False Trigger
Bedsheets dont trigger recording because theyre not emitting heat
Moving car:
REC
It records
Relevant
Records car because its a movement in the image
REC
It records
Relevant
Records car because its
warm & moving

Expand your system

You receive 4 Full HD 1080p cameras with this kit, but we know that sometimes blind spots are discovered that need monitoring. Enjoy the convenience of being able to add up to 4 more compatible Swann cameras to your DVR for a full 8-channel surveillance solution. You can even add other types of Swann cameras to match your needs and budget.

Instantly link your phone to the DVR

Once your DVR is connected to the internet, simply install the HomeSafe View app on your smartphone or tablet. Then scan the QR code sticker on the DVR to instantly start viewing the cameras on your device with Swanns peer-to-peer SwannLink technology.

View your home on your phone

You have peace of mind at your fingertips with our easy-to-install, free, HomeSafe View app. You can see the cameras live and play back recordings on your smartphone or tablet, no matter where you are in the world. Keep an eye on your kids or babysitter at home, and monitor your staff and business for productivity and protection.

Massive surveillance grade hard drive

The massive 1TB HDD is designed especially for continuous surveillance recording. Easily transfer incident video files to a USB stick or to a computer on your network. Boost storage by setting up Motion Detection Recording. With such massive storage, you can come back from your long vacation and still find recordings from a while back.

Weatherproof cameras built for any climate

Swann cameras can be mounted indoors & outdoors and are built tough to withstand rain, snow, dust and hot days with cables threaded through the stand.

See everything day or night

No matter if its day or night, youll be able to see everything up to 100ft (30m) at night or up to 130ft (40m) in ambient light with powerful infrared Night Vision. The cameras will automatically switch to black & white night vision mode as night falls.

Full HD 1080p with HDMI cable

The kit also includes an HDMI cable for generating up to Full HD 1080p video to your flat screen TV including LCD, LED TVs or monitors. The DVR also has a VGA connection for viewing up to 1080p Full HD on your LCD monitor or compatible TV with VGA input. VGA cable not included.

Smart Search easily finds recorded incidents by searching a specific image area

With Smart Search you can select a specific area of the image to search for movement within the recordings. For example, if something was stolen during a particular hours footage, you can highlight the position of the stolen object for example, a laptop, bike or bag - and Smart Search will mark the timeline where it detected motion around that specific area.

QuickShot Cloud lets you quickly review recordings from multiple cameras

QuickShot Cloud is a time saver to find what you want from recorded footage. This feature lets you search all channels in a given period of time and then select the recordings from the search results to play as a slide show all in the same screen. Once you see an event of interest, such as someone roaming around your car, you can then go into that specific footage to watch the event. From there you can save still images of the activity to your personal Dropbox account. Its convenient and secure!

QuickReview plays back various recordings from a single camera

Imagine arriving home to a broken window. Using QuickReview saves you time in identifying how and when it happened. Only one of the cameras will have covered that specific angle but as you can simultaneously play multiple recordings from a single channel, you can watch them all at once. The video is divided evenly depending on the split-screen mode that has been selected. For example, if the video is an hour long and you have selected 4 split screens, each will play for 15 minutes.

App

HomeSafe View App

Security in the Palm of your Hands

See live footage from your security cameras, wherever you are.

  • Multi-channel viewing at the same time
  • Playback stored recordings on your mobile device
  • Capture video from cameras’ live view to playback later
  • Capture single and multi still images to save to your device

Specifications

Video

Video Input

8 Channels

Video Outputs

VGA, HDMI

Display Resolution

Up to 1080p

Audio

Audio Input

1 x RCA

Audio Output

1 x RCA

Recording

Recording Resolution

Up to 3MP

Hard Drive Support

Includes 1TB SATA HDD (supports up to 4TB)

Connection

Network Interface

RJ45 x 1

USB Interface

USB 2.0 x 2, USB 3.0 x 1

Software

Computer Operating System

Windows, Mac OS

Internet Viewing

HomeSafe View App

Handheld Device Supported

iOS, Android, 3G/4G Smartphones & Tablets

General

Dimensions (WxDxH)

9.05" x 8.3" x 1.9"

230mm x 210mm x 47mm

What's In the Box

DVR 4575 8 Channel DVR with 1TB Hard Drive

PRO-1080MSB 1080p Cameras x 4

BNC Cables 60ft / 18m x 4

Ethernet Cable

HDMI Cable

Power Adapter & Splitter

Mouse

Mounting Screws & Plugs

Quick Start Guide

Theft Deterrent Stickers

Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
