Viewsonic M1 Led Projector



Features

• Advanced LED Light Source
• 360-degree projection with Smart Stand
• Dual Harman Kardon Speakers
• USB Type-C for Video and Power
• Built-in Battery and 16GB Internal Storage

Overview

The ViewSonic® M1 is an ultra-portable LED projector that delivers convenient entertainment in nearly any room. With a built-in battery and over 30,000 hours of operational life, this projector will deliver years of multimedia entertainment wherever it goes. Weighing less than two pounds, the M1’s compact and lightweight design makes it ideal for moving from room to room, or for indoor/outdoor usage. An integrated smart stand provides for simple 360-degree setup, while also doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on with full brightness for instant entertainment. A built-in safety feature temporarily turns off the lens when objects are detected too close to the projector. Dual Harman Kardon speakers provide crisp and clear sound for multimedia content, while a short throw lens can display large images in small spaces. What’s more, versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C – making the M1 a great option for sharing and displaying videos and other multimedia content.

Find the right ViewSonic projector for your home theater, classroom, or enterprise solutions using our Projector Distance Calculator.

Wifi hifi Review

"The six-hour battery, rated for more than 30,000 hours, and the dual Harman-Kardon speakers pump out good sound. The 854 x 480 resolution works in smaller rooms thanks to the short-throw lens system that projects from one metre.

Windows Central

Windows Central Review

"There's no need to huddle around the projector to hear what's happening, as the Harman Kardon speakers get very loud and remain clear. "

Projector Central Review

"Ultimately, the cool thing about the ViewSonic M1 is the sum of the parts. With up to 6 hours of battery, onboard Harmon Kardon speakers that really perform, and Full HD 3D capability, you've got a portable home theater rig in a sub 2-lb package. That is a unique combination of features and solid value ...

Advanced LED Light Source

• 30,000 Hours of usage

This projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution. The LED light source provides over 30,000 hours of usage* while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership.

360° Projection with Smart Stand

• 360° Rotation

The integrated Smart Stand provides for simple 360-degree setup, allowing the project or to be placed in different positions at nearly any angle. The Smart Stand also doubles as a lens cover that automatically turns off the projector when closed, and automatically powers on the projector when open.

Dual Harman Kardon Speakers

• 2 Speakers

Integrated Harman Kardon Speakers deliver powerful performance in a small package. These speakers produce deep, loud, 360-degree room-filling sound perfect for music and movies at home, or on the go.

USB Type-C for Video and Power

• All-in-one Cable
• Quick Charge

A USB Type-C port delivers fast data, audio, video and quick charging over a single cable.

*The M1 power adapter must be plugged in for USB Type-C charging. When the M1 is not plugged in and operating on battery power alone, it can still play content from a mobile device connected via USB Type-C, but it cannot charge the mobile device.

Hours of Entertainment

• 6 Hours* Battery Life
• 16GB Internal Storage

For entertainment on the go, a built-in battery provides up to 6 hours* of power so you can watch movies and share videos without the hassle of wires or cables. And thanks to 16GB of internal storage, you can enjoy up to 4,000 songs and up to 4 hours of movies.

Safety Auto-Off

A built-in safety feature temporarily turns off the lens when objects are detected too close to the projector. This is especially useful for protecting the eyes of wandering children or pets from direct light exposure.

Automatic Vertical Keystone Correction

Vertical keystone correction helps eliminate crooked and distorted images for a perfectly proportioned picture every time.

Plug-and-Play Connectivity

An integrated Micro SD card slot and built-in USB Type-A reader port allows you to playback photos, videos, and other multimedia without having to connect to a PC. The USB Type-A port also delivers charging power.

Peace of Mind

ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year light source, and first year free Express Exchange service* for an added value worth up to $150**.

Specifications

Resolution	854 x 480
Throw Ratio	1.2
Throw Distance	40 in / 1.0 m
Brightness (Lumens)	250
Display
TYPE	DLP LED
RESOLUTION TYPE	WVGA
RESOLUTION	854 x 480
BRIGHTNESS (LUMENS)	250
DISPLAY SIZE (IN.)	24 - 100 in. / 0.6 - 2.54 m
THROW DISTANCE	40 in / 1.0 m
THROW RATIO	1.2
KEYSTONE	Vertical (± 40º)
LENS	Fixed Zoom
LIGHT SOURCE LIFE, NORMAL (HOURS)	30000
COLOR DEPTH	1.07B Color (R/G/B 10bit)
DYNAMIC CONTRAST RATIO	120,000:1
ASPECT RATIO	16:09
Video Signal
FREQUENCY HORIZONTAL	15h~135kHz
FREQUENCY VERTICAL	23~120Hz
Compatibility
PC RESOLUTION (MAX)	1920 x 1080
PC RESOLUTION (MIN)	640 x 480
MAC® RESOLUTION (MAX)	1920 x 1080
MAC® RESOLUTION (MIN)	640 x 480
Connector
USB 2.0 TYPE A	1
USB 3.1 TYPE C	1
CARD READER	Micro SD
3.5MM AUDIO OUT	1
HDMI 1.4	1
Audio
INTERNAL SPEAKERS	3W (x2)
Power
VOLTAGE	100-240 VAC
CONSUMPTION (TYPICAL)	55W
STAND-BY	<0.5W
Controls
PHYSICAL CONTROLS	Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
ON SCREEN DISPLAY	Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
Operating Conditions
TEMPERATURE	32-104º F (0 - 40º C)
HUMIDITY (NON-CONDENSING)	0-90%
Weight (imperial)
NET (LBS)	1.5
GROSS (LBS)	4
Weight (metric)
NET (KG)	0.7
GROSS (KG)	1.8
Dimensions (imperial) (wxhxd)
PACKAGING (IN.)	16.0 x 9.2 x 12.4
PHYSICAL (IN.)	5.8 x 1.6 x 5.0
Dimensions (metric) (wxhxd)
PACKAGING (MM)	406.0 x 233.0 x 315.0
PHYSICAL (MM)	148.0 x 40.5 x 126.0
General
REGULATIONS	FCC, cTUVus, ROHS, TUV-S, NOM, UL2054
PACKAGE CONTENTS	M1 Projector, Power Cable, USB Type C Cable, Remote Control, Projector Case, Quick Start Guide
WARRANTY	Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service.
	(One year Express Exchange Service requires product registration).
RECYCLE/DISPOSAL	Please dispose of in accordance with local, state or federal laws.

PTZOptics PT20X-NDI-WH Streaming Camera



Overview

NDI is a paradigm shift that will increase what is possible in all things live video. In this video, we will think outside the box about how to plan out live streaming and video production systems in the world of IP. Using standard networking infrastructure NDI will enable us to do more with less. We will uncover new possibilities for low budget streaming and high-end video productions system alike as we move toward the future of broadcast video over IP.

Unparalleled Versatility

Remote camera control options when and where you want them. Whether the controls are built-in to your favorite video production software or provided by one of our hardware joystick controllers, you have a plethora of options.

NewTek NDI

Built-in NDI compatibility for NewTeks industry leading IP technology. Instantly accessible over your network for audio, video and PTZ camera control. NDI is a trademark of NewTek, Inc.

3G-SDI

3G-SDI is a preferred cabling for 1080p video at up to 60 frames per second run over long distances.

Power Over Ethernet

TZOptics HD-SDI camera models also include PoE (Power Over Ethernet) which can learn more about here. The Ethernet port can be used for power, control and video/audio streaming.

RS-232/RS-485 Camera Control

Every PTZOptics includes in/out RS-232 ports and a RS-485. These ports use VISCA commands to integrate with larger control systems such as Crestron and Extron.

Live RTMP Streaming

Every PTZOpticscamera has the ability to live stream directly from the camera to your favorite CDN. Simply plugin your CDNs RTMP Streaming information into the IP interface of your camera and start streaming!

IP Video Streaming

Camerasinclude h.265 High-Efficiency Codec IP Streaming along with h.264 and multicast streaming.

Three Simultaneous Video Outputs

Simultaneously produce 1080p60fps video from HDMI, 3G-SDI and multiple H.264/H.265/MJPEG IP Streams for maximum flexibility.

Wide Field of View

The 12X models offer a wide field of view with the ability to zoom into narrow a 6.9. The 20X Models offer a wide 60.7 FOV with a tight 3.36 FOV.

iOS Camera App

PTZOptics has an updated iOS camera control app available here. The app is not included free with each camera cost. A free android app is available here.

HDMI Video Connection

Every PTZOptics camera comes with a HDMI video output capable of video resolutions up to 1080p.

3.5mm Audio Input

Every PTZOptics camera comes with a 3.5mm audio input you can use to embed audio. The HD-SDI models support embedding audio via a line level input onto HDMI and Ethernet for IP Streaming.

3 Year Warranty

PTZOptics offers the industries best 3 Year Warranty. Repairs are handled in our USA repair center located outside Philadelphia, PA.

The Awesome Power of NDI

Low Hanging Fruit

Lets capture some low hanging fruit with the benefits of broadcast IP video and eliminate the need for capture cards in our next live streaming system design. Imagine an entire generation of video engineers who will never use expensive SDI cabling and capture devices. Using NDI we will have access to sources from anywhere on our network. We will no longer be restricted to sources directly connected to a single system. Capture cards are used for low latency video conversion from traditional HDMI or SDI video to USB or PCIe where we can use them with production software such as vMix, Wirecast, Livestream and more. What if we could eliminate the need for capture cards altogether by providing the same quality, low latency video directly to Wirecast, vMix, LiveStream, OBS, or xSplit over the Ethernet connection we are already using.

Add Cameras with Ease

In one fell swoop, we have eliminated a point of failure from our video production workflow and reduced the cost of implementing a new system dramatically. At the end of the day, we have opened up a whole new universe of possibilities where the network you already have has become the preferred method of video routing. Need another camera shot? Just run a single Cat-5 cable to the PTZOptics NDI camera and you will have high-quality video, camera control and power solved in an instant.

Where the rubber meets the road

This is where the rubber meets the road, unlike SDI cabling, Ethernet can provide power for cameras using a PoE source, such as a switch, simplifying installation and eliminating the need for additional outlets. And unlike traditional RS-232 control cables, Ethernet can also be used to control our cameras within your favorite video production software or via one of our IP joysticks without requiring direct analog control cabling to each camera.

From the Boardroom to the Production Studio

NDI will make your transition to IP video simple. Want to add your PTZOptics camera from the Studio into a GoToMeeting call with your Producer across the world? No problem. Access it from any computer on your network using NDI transmit or the output of your software based video switcher like Wirecast or vMix. Your favorite video production software will become much more powerful with access to all NDI sources on your network. Want to live stream with your Main PC and setup a secondary machine for isolated recordings of each camera? No problem. Download the free NDI IsoCorder app from NewTek and get started.

NewTek NDI Tools

As you can see, we can start to envision new IP workflows leveraging free and professional IP video tools available from NewTek and 100s of other NDI developers. Do you work with a creative team? They will love the free Adobe Creative Cloud plugin for NDI. Are you working on a budget? Try out the free Open Broadcaster Software plugin for NDI or start out with low-cost vMix HD license. The move toward IP video production will make the answer to your next live streaming challenge Sure, we can do that. Adding another camera to your system will be easier than ever using a single ethernet cable for audio, video, PTZ camera control and power to simplify your life.

Future Proof Solution

Accomplishing your goals with IP-based video will become a solution you wont want to live without. At PTZOptics, we are here to help with training resources and a dedicated support team. With NDI, NewTek has already done the heavy lifting and paved a future proof solution for a world of high-quality IP video. Live Streaming Rookies and Broadcast professionals alike will find ways to use NDI compatible software and hardware to change the way we think about live streaming and video production.

Free Training Course

Whether you are a school looking to broadcast a morning announcements show or a small business adding live video into your marketing strategy with a PTZ camera system, even teams of broadcast professionals will find IP video will likely help you accomplish your goals.

We believe that this technology has the power to save organizations thousands of dollars with live video projects small and large and that is why we have joined 100s of other manufacturers in the industry standardizing around the NewTek NDI protocol. A basic understanding of what is possible with IP Video and NewTeks NDI will go a long way to paving a future proof solution for your live video production. Whether you are a one-man production studio searching for ways to do more with less, or an advanced team of Broadcast experts, we believe the future of IP video will enhance your capabilities greatly.

Team TC1714GB01 C171 - 4GB - Black



Features

• Fashion and minimal design
• Capless design prevents the problem from losing the cap
• Mini size and easy to carry
• Excellent capabilities of water proof, dust proof and shock proof
• Thoughtful strap hole design
• Lifetime warranty and free technical support

Overview

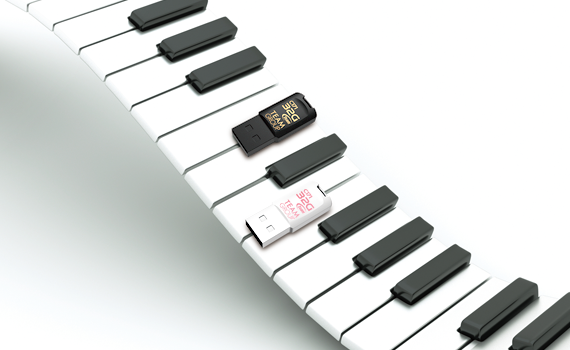

Minimal design with fashion elements

Exquisitely built with originality, the black and white piano keys-like C171 USB drives design concept is fused with color aesthetic and fashion trend. The black and white, minimalist C171 has a compact streamlined unibody. The color choice includes: crystal carbon black with golden letters, creating a remarkable aristocratic atmosphere; ivory white matches up with rose gold to express the fashion aesthetic luxury and leads a new trend.

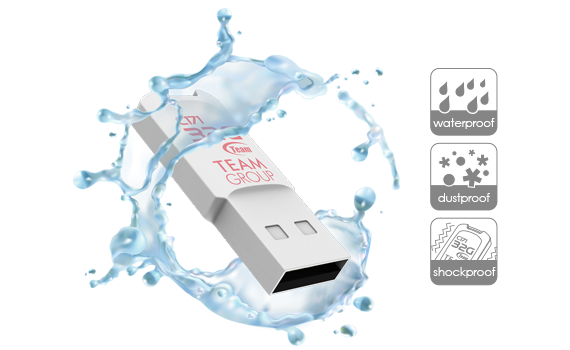

Three excellent protective functions

C171s unibody design and COB assembly process offer all-around data protection including water proof, dust proof, shockproof, etc. to ensure data security and reliability. Through plug and play design, it is able to immediately expand the storage capacity of desktop and laptop.

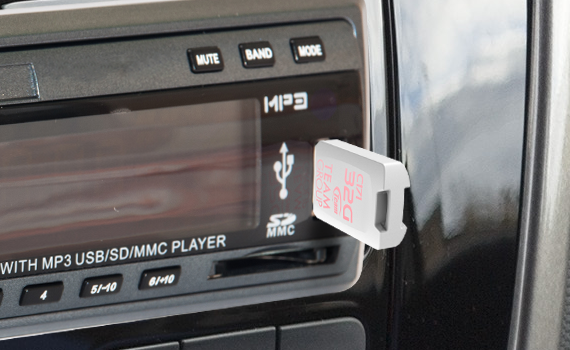

Mini size and easy to carry

With C171ssleek one piece capless design, and its lightweight and compact size, it is easy to carry around and storage. It is not only a space saver on car, but also supports various types of car audio systems with built in USB ports, allowing you to easily enjoy a wonderful musical feast even while you are on the move.

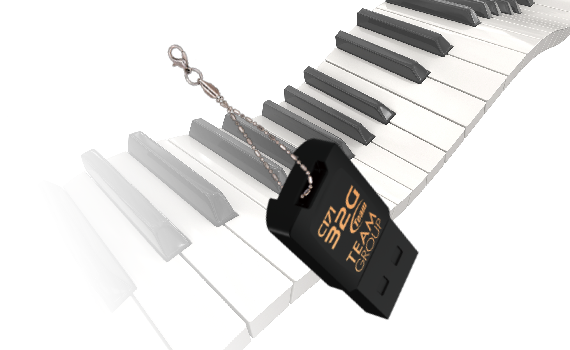

Thoughtful strap hole design

The thoughtful strap hole design at the end makes it easy to carry around. It not only offers convenience for users to store their multimedia files, or access briefing materials, but it can also bring you more personal style and turning into a mini fashion accessory to build up your own black and white sleek style.

Specifications

ITEM	SPECIFICATION
Interface	USB 2.0
Capacity	4GB
Color	Black
Power	DC +5V
Product Dimensions	34.10(L) x14.50(W) x 6.10(H)mm
Hot Plug	YES
Weight	3.4g
Warranty	Lifetime warranty
System requirements	Windows10, Windows 8.1, Windows 8, Windows 7
	Windows Vista, Mac OS X v.10.6.x+, Linux v.2.6.x+

PRECAUTIONS

*1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB

**Transmission speed will vary according to different hardware / software conditions, therefore the data can only used for basic reference.

NOTES We reserve the right to modify product specifications without prior notice.

ACTi ENR-130 Standalone NVR



Specifications

Device
Product Type	Standalone NVR
Maximum Resolution	Local: up to 4MP; Remote: up to10MP
Maximum Number of Cameras	16
Maximum Number of Video devices	16
Maximum Number of Clients	Local: 1, Remote: 2
License
License required	No
Free License	16
Live View
Display Layout Mode	Local:1,2,4,9,12,16,1+5,1+7,1+12,2+4,2+8, Remote:1,2,4,9,12,16,1+5,1+7,1+12,2+4,2+8
Local Live View performance	Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom	Yes
Event Status	Display event status upon alarm or upon connection loss or recovery between server and client
Instant playback	Instant Playback in live view window (Remote client)
PTZ
PTZ Control	PTZ Control, Speed Control, 32 preset points
Joystick	USB based joystick supported
Video
Compression	H.264
Audio
Audio Compression	PCM, G.711
Network
Network Protocol & Service	IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (Server/Client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, SNTP, ICMP, ARP, SMTP, UPnP, To be available through future firmware upgrade
Ethernet Port	Total ports: 2 port(s)
	(LAN 1)
	Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector
	(LAN 2)
	Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector
Security	HTTPS encryption, Password protected user level
Recording
Scheduled Recording	Yes
Event Recording	Yes
Manual Recording	Yes
Event Speed-up Recording	Yes
Dual Stream Management	Yes
Maximum Recording Throughput	48 Mbps
Search & Playback
Playback Control	Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x, pause, stop
Synchronized Playback	16 channels
Video Export	AVI, RAW
Event
Event Trigger	Video motion detection, External device through digital input, Network loss and recovery,
Event Response	Play alert sound, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Activate external device through digital output
System
Permission control	Unlimited number of users, Customizable permissions for user groups
Client PC Operating System	Windows 7, Windows 8
Server Operating System	Embedded Linux
Mobile Client Program	Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iPhone, iPad, iTouch, Android device
USB	2 port(s), USB 2.0
Language	Multi-Language
System Status Monitor	Real time status reports on remote browser
Integration
Unified Solution	Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
ONVIF Compliant	Yes, Profile S
Web Browser	IE 9.0 or newer
Interface
Local Access	HDMI monitor, USB keyboard & mouse, USB Joystick
General
Power Source	DC 12V
Weight	1320g (2.91lb)
Dimensions	(W x H x D): 135mm x 121mm x 251mm (5.3" x 4.8" x 9.9")
Bundled Accessories	Power Adapter
HDD Bay	SATA, Max. 2 3.5" Disk(s) (Options to have empty bays, one 2TB or one 4TB storage disk included)
Fan	Yes
Operating Temperature	0C ~ 40C (32F ~ 104F)
Operating Humidity	10% - 85% RH
Warranty	2 Year(s)
Remote Access	Workstation, Web Client, Mobile Client
Approvals	CE, FCC, UL (for bundled power adapter)
Extended Warranty	3 Year(s)
Weight	5250g (11.57lb)
Dimensions	(W x H x D): 235mm x 101mm x 268mm (9.25" x 3.97" x 10.55")
HDD Bay	SATA, Max. 2 2.5" Disk(s)
RAID Level	Software RAID 0, 1
Operating Temperature	-20C ~ 60C (-4F ~ 140F)
Operating Humidity	10% - 90% RH
Warranty	2 Year(s)
Remote Access	Workstation, Web Client, Mobile Client
Approvals	CE, FCC, E-Mark, UL (for built-in power adapter)
Extended Warranty	3 Year(s)
