30/12
|
ATEN Video Extender Rack Mount Kit - 2U
|
|
|
|
30/12
|
HuddleCamHD Video Conference Camera - Grey
- 2.0 Mega Pixel, Full HD 1080p, 3X Optical Zoom, 355-Degree Pan, 90-Degree Tilt Up, 45-Degree Tilt Down, USB3.0HuddleCamHD HC20X-GY-G2-I 20X Gen 2 20X Optical Zoom USB
3.0 Video Conference Camera
Overview
The ideal professional-grade conferencing camera for large sized
rooms
HuddleCamHD cameras are the perfect cameras for professional video
conferencing. Designed with a wide variety of conferencing setups in mind, there
is a HuddleCamHD solution that will work for any situation. Offering superior
quality at an affordable price, the entire HuddleCamHD line of cameras is easy
to setup and ready to use in a matter of minutes.
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 20X optical zoom
letting you get up close to see and interact with your team.
Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for
additional software.For best results use a quad-core processor.
Use your favorite software
Works with virtually every online video conferencing software with no need
for additional drivers or proprietary connections.
Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the 1/4
20to fasten the camera to a standard tri-pod or simply mount on the wall.
Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug
your camera into your computers USB port and start your video conference.
Ideal Field of View
The HuddleCamHD20X has a wide enough field of view for most rooms and the
ability to drill down to a 5 degree field of view to accommodate almost any
position.
Camera Presets
Access camera presets with the included IR remote control. Easily control
your cameras pan tilt and zoom along with other fine tuning setting from your
remote control.
RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX.
Even convert RS-232 to USB and control from your computer.
Specifications
|
Baud
Rate |
9600
bps |
|
Controller
Signal Config |
Dip-Switch
Pin 6/TTL Signal |
|
Input
Voltage |
12V
DC (10.5-14V DC) |
|
Input
Power |
24W
(Max) |
|
Power
Supply Adapter |
12V
DC 2A |
|
Material |
Aluminum,
Plastic |
|
Weight |
2.52
lbs (1.14 kg) |
|
Dimensions |
5.68W
x 5.63H x 5.88D (7 H w/ Tilt up) |
|
(W
x H x D) mm |
145mm
x 143mm x 150mm (178mm H w/ Tilt up) |
|
Boxed
Weight |
5.8
lbs (2.63 kg) |
|
Box
Dimensions (in.) |
13.25x9.25x9.5 |
|
Box
Dimensions(mm.) |
337mm
x 235mm x 242mm |
|
|
|
|
Features |
|
|
Frame
Rate |
30fps
1920 x 1080p, 30fps 1280 x 720p |
|
Lens
Zoom |
20X
Optical Zoom, 12X Digital Zoom f=4.7-90mm |
|
Video
CMOS Sensor |
1/2.8
CMOS 2.0 Mega Pixel |
|
Pan
Movement |
0-355
Degree |
|
Tilt
Rotation |
Up:
90Degree, Down: 45Degree |
|
Presets |
64
Presets |
|
Video
Signal |
USB
3.0 |
|
Field
of View |
5Degree
(tele) to 58Degree (wide) |
|
Power
LED |
Blue
LED to signal power |
|
Control |
IR,
RS-232, & RS-485 |
|
Color |
Gray |
|
Warranty |
2
Years parts and labor | |
|
|
|
30/12
|
Canon CART046CH High Yield Toner Cartridge For LBP654CX / MF735CX - Cyan - 5,000 Pages
|
|
|
|
30/12
|
ACTi i910 Speed Dome Camera - 4 Megapixel, Progressive Scan CMOS, Advanced WDR, Day / Night, 30 fps at 1920 x 1080, H.264 (Baseline/ Main/ High profile), MJPEG, Dual Streams - WhiteACTi i910 Speed Dome Camera
Specifications
|
Device |
|
|
Product
Type |
Speed
Dome |
|
Maximum
Resolution |
4MP |
|
Application
Environment |
Outdoor |
|
Sensor |
Progressive Scan
CMOS |
|
Sensor
Size |
1/3
" |
|
Effective
Pixels |
2688(H) X 1520(V) (4.09
MP) |
|
Day /
Night |
Yes |
|
Low Light
Sensitivity |
Superior |
|
Minimum
Illumination |
Color: 0.1 lux at F1.6
(30 IRE , 2400 K); B/W: 0.05 lux at F1.6 (30 IRE, 2400
K) |
|
Color to B/W
Switch |
ISP based switch,
configurable |
|
Mechanical IR Cut
Filter |
Yes |
|
IR Sensitivity
Range |
700-1100nm |
|
IR
LED |
No |
|
Electronic
Shutter |
1/15-1/2000sec (manual
mode, 60 Hz); 1/15-1/10000sec (auto mode, 60
Hz) |
|
Horizontal Resolution
(TV Lines) |
1850
TVL |
|
S/N
Ratio |
56
dB |
|
|
|
Lens |
|
|
Focal
Length |
Zoom,
f4.5-148.5mm |
|
Aperture |
F1.6-F5.0 |
|
Zoom
Ratio |
33x
optical |
|
Zoom
Speed |
3.1 sec (wide to
tele) |
|
Zoom
Application |
Camera Installation,
Auto Zoom by Event, Manual Operation |
|
Iris |
DC
iris |
|
Focus |
Auto
focus |
|
Lens
Mount |
Board
mount |
|
Horizontal Viewing
Angle |
58.78 -
2.35 |
|
Vertical Viewing
Angle |
35.59 -
1.32 |
|
|
|
PTZ |
|
|
Manual Panning /
Tilting Speed |
3.2 -
8/sec |
|
Preset Panning/Tilting
Speed |
1.6 -
480/sec |
|
Panning
Range |
360
endless |
|
Tilting
Range |
-20~200 |
|
PTZ
Control |
Remote manual control,
10 preset tours, Auto scan |
|
Preset Accuracy
(Panning/Tilting) |
0.265/0.265 |
|
Absolute
Position |
Yes |
|
Pan, Tilt or Zoom
protocol |
Visca, Pelco-D,
Pelco-P, ACTi URL command |
|
|
|
Video |
|
|
Compression |
H.264 (Baseline/ Main/
High profile), MJPEG |
|
Maximum Frame Rate vs.
Resolution |
15 fps at 2688 x
1520 |
|
15 fps at 2560 x
1440 |
|
30 fps at 1920 x
1080 |
|
30 fps at 1280 x
720 |
|
30 fps at 800 x
600 |
|
30 fps at 640 x
480 |
|
15 fps at 320 x
240 |
|
Multi-Streaming |
Simultaneous dual
streams based on two configurations |
|
Bit
Rate |
28Kbps - 6Mbps (per
stream) |
|
Bit Rate
Mode |
Constant,
Variable |
|
Wide Dynamic
Range |
Advanced WDR (75
dB) |
|
Enhancement |
White Balance,
Brightness, Contrast, Sharpness, Automatic gain control, Flickerless,
Digital Image Stabilizer, Defogging |
|
Digital Noise
Reduction |
2D + 3D
DNR |
|
Privacy
Mask |
32 configurable 3D
privacy masks |
|
Text
Overlay |
Yes |
|
VMS-based
Analytics |
Object Counting, People
Counting, Face Detection, Object Based Motion Detection, Tamper, Line
Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection,
Heat Map, Dwell time, Direction Detection, License Plate Recognition,
People Queue management, (Require PC-based or standalone IVS or ALPR
Server. Contact ACTi support for recommendations on how to maximize
analytical accuracy) |
|
Orientation |
Flip,
Mirror |
|
|
|
Audio |
|
|
Audio
Type |
2-way, Line-in,
Line-out |
|
Audio
Compression |
8 kHz, 16 bit encoding,
Mono, PCM, G.711 |
|
|
|
Network |
|
|
Network Protocol &
Service |
IPv4/v6, TCP, UDP,
DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP,
IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE
802.1X |
|
Ethernet
Port |
1 x RJ-45
connector |
|
Security |
IP address filtering,
HTTPS encryption, Password protected user level, Anonymous login, IEEE
802.1X network access control |
|
|
|
Event |
|
|
Event
Trigger |
Video motion detection
(3 regions), External device through digital input, Sound
detection, |
|
Event
Response |
Notify control center,
Go to PTZ preset point or preset tour, Change camera settings, Command
other devices, E-mail notification with snapshots, Push notification to
mobile device, Save video to local storage, Upload video or snapshot to
FTP server, Upload video to NVR server, Activate external device through
digital output |
|
|
|
Integration |
|
|
Unified
Solution |
Fully compatible with
ACTi software |
|
Software Development
Kit |
Yes |
|
GPS
Position |
Manual
setting |
|
ONVIF
Compliant |
Yes, Profile S, Profile
G |
|
GB28181
Compliant |
Yes |
|
Web
Browser |
IE 9.0 or newer,
Firefox with VLC, Chrome with VLC, Safari with
QuickTime |
|
Auto Firmware
Upgrade |
Yes |
|
|
|
Interface |
|
|
Audio
Interface |
Cable without
connector |
|
Local
Storage |
MicroSDHC, MicroSDXC
memory card slot (card not included) |
|
Digital
Input/Output |
4/2 |
|
|
|
General |
|
|
Power
Source |
AC 24V, High
PoE |
|
Power
Consumption |
31.3 W
(PoE) |
|
Weight |
2500g
(5.51lb) |
|
Dimensions |
( x H): 200mm x 276mm
(7.9" x 10.9") |
|
Environmental
Casing |
Weatherproof (IP67),
Vandal proof (IK10) |
|
Bundled
Accessories |
High PoE injector (for
USA) or Power Adapter (for other countries) |
|
Mount
Type |
Gang Box, Pendant,
Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner
Mount |
|
Fan |
Yes |
|
Heater |
Yes |
|
Starting
Temperature |
-40C ~ 50C (-40F ~
122F) within 30 minutes |
|
Operating
Temperature |
-40C ~ 50C (-40F ~
122F) |
|
Operating
Humidity |
10% - 85%
RH |
|
Warranty |
3 Year(s)* (1 year in
continuous motion) |
|
Approvals |
CE, FCC, IP67, NEMA 4X,
IK10, UL (for bundled PoE injector or power
adapter) |
|
Extended
Warranty |
2 Year(s)* (1 year in
continuous motion) |
|
|
|
|
30/12
|
Swann DVR16-4550 16 Channel 1080p Digital Video Recorder with 8 x PRO-T853 Cameras
- Includes 2TB SATA HDD, HDMI, VGA, RCA, USB2.0(2), Indoor/OutdoorSwann SWDVK-164558 DVR16-4550 16 Channel 1080p Digital
Video Recorder with 8 x PRO-T853 Cameras
Overview
16 Channel 1080p Digital Video Recorder with pre-installed 2TB HDD / 8 x
1080p Day/Night Cameras / SwannLink Peer to Peer easy network connection
software / VGA & HDMI Output / Web and Smartphone remote viewing / Transfer
to external storage via USB or network.
- A cutting edge & easy to use surveillance system with 1080p high
definition video to see & protect your premises.
- Set & forget by recording from 16 channels for 80 days+ onto a massive
2TB hard drive.
- Seeing is believing with 8 x 1080p HD cameras offering 100ft/30m infrared
night vision & durable construction for indoors or outdoors. Add 8 more
Swann PRO-H855, H856 or T850 series cameras for full 16 channel monitoring.
- Save time & have peace of mind by easily locating incident video, then
transfer to external storage via USB or network.
- View live or playback video in high definition on your HDTV, LCD screen or
monitor via HDMI connection or VGA port.
- Surveillance in the palm of your hand with live viewing on Smartphone
& tablets including iPhones, iPads & Android devices using the free
SwannView Link app.
- Cut the cost of crime & know what’s happening with this expandable HD
security system to suit homes, offices, small businesses & retail
stores.
Based on 15% motion events at lowest settings
Monitor, tablet and mobile phones not included. Not all handsets
supported
Media Coverage

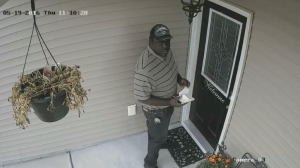

ABC4 (USA) | Home surveillance video captures Cane Bay burglary
(Aug-2016)
Read our customer story on how Swann home surveillance captures burglary.
Specifications
|
DVR16-4550 Digital
Video Recorder |
|
|
|
|
Video |
|
|
Video
Inputs |
16
Channels |
|
Video
Outputs |
HDMI,
VGA |
|
Display
Resolution |
Up to
1080p |
|
|
|
|
|
Audio |
|
|
Audio
Input |
1
RCA |
|
Audio
Output |
1
RCA |
|
|
|
Recording |
|
|
Recording
Resolution |
Up to
1080p |
|
Hard Drive
Support |
Includes 2TB SATA HDD
(Supports up to 4TB) |
|
|
|
Connection |
|
|
Network
Interface |
RJ45 Port x
1 |
|
USB
Interface |
USB 2.0 x
2 |
|
|
|
Software |
|
|
Computer Operating
Systems |
Windows, Mac
OS |
|
Internet
Viewing |
SwannView
Link |
|
Handheld Device
Supported |
iOS, Android, 3G/4G
Smartphones & Tablets |
|
|
|
General |
|
|
Dimensions
(WxDxH) |
11.2" x 9.1" x 2" /
285mm x 230mmx 50mm |
|
|
|
PRO-T853
Camera |
|
|
|
|
Video |
|
|
Video
Quality |
1080p |
|
Viewing
Angle |
80 |
|
|
|
Night
Vision |
|
|
Night Vision
Distance |
Up to 100ft /
30m |
|
|
|
General |
|
|
Indoor /
Outdoor |
Indoor or outdoor, IP66
rated |
|
Audio
Microphoner |
No |
|
Operation
Temperature |
-4F 122F / -20C
50C |
|
Body
Construction |
Aluminum |
|
Dimensions -
Camera |
2.4 x 5.75 x 2.4 / 61 x
146 x 61mm |
|
|
|
|
Previous Page
|
Next Page
|
|
