Epson EB-2250U 3LCD Technology Projector - 1920x1200 WUXGA, 5000 Lumens, 15,000:1, 5,000/10,000hours, RCA, D-Sub(2), USB Type-A, USB2.0, HDMI(2), SpeakersEpson V11H871053 EB-2250U
Overview
- Corporate Portable Multimedia Projector
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology.
Look for both high colour brightness and high white brightness
- Crisp Clear Resolution – WUXGA image resolution (1920 x 1200)
- Versatile Connectivity – Easily integrate with any system with HDMI and
MHL
- Optional Wireless Functionality – Optional Wi-Fi
- Gesture Presenter – Simply move your hand in front of the presentation
- Split Screen – simultaneously project two images, video or still, side by
side, from two different sources
- Epson iProjection™ – Wirelessly display and control content from your
iPhone®, iPad®, iPod touch® and Android™ devices
- USB Display Function – Project via a simple USB cable connection without
having to change the monitor output setting on the PC
- Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom,
horizontal and vertical keystone all at the touch of a button
- Remote Network Monitoring and Control – Plus Message Broadcasting and
built-in schedule functions with EasyMP® software / Multi-PC
Projection
3x Brighter Colours with Epson
- Brilliant image quality requires high colour brightness (colour light
output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading
competitive projectors*.
- One brightness measurement (lumens) is not enough. A projector‘s
specification needs to show both high colour brightness and high white
brightness. If colour brightness is lower than white brightness, images may be
dark, dull and lose detail. If not provided, be sure to ask for a projector’s
colour brightness specification.
3LCD technology
- All Epson projectors are based on 3-chip LCD technology for amazing
colour, incredible detail and solid reliability. 3LCD's 3-chip architecture
dedicates an entire chip to process each primary colour – red, green and blue,
continuously. Unlike single-chip technology that delivers colour sequentially,
you get full-time colour. The result is vibrant, realistic images and video
all delivered with 3LCD's true-to-life colour.
Brilliant high definition image up to 300"
- Featuring native resolution up to WUXGA (1920 x 1200), the Epson EB-2000
series delivers high quality images and crisp, sharp text without any
distortion.
- Images can be projected on a large screen with no information left out.
This applies to video output devices such as PCs and smart devices with their
ever increasing image quality and higher definition and accommodates a variety
of content including 3D CAD, digital broadcasts, Blu-ray, and internet movies.
High brightness
- Even though its light weight and compact size enables it to be carried
from room to room, the projector is capable of highly visible images thanks to
its high brightness (up to 5,500lm) and superior 15,000:1 contrast ratio. Room
lights don't have to be dimmed to see bright and clearly projected images,
allowing meeting participants to concentrate better for improved meeting
productivity.
Epson iProjection App
- Display and control content from your iPhone, iPad or iPod touch, Android
and Chrome devices with the Epson iProjection App. This free application
allows road warriors to travel light and present from their mobile devices.
The app is easy to use and intuitive menu options bring your content to the
bigger screen.
Auto V/H keystone and screen fit
- In cases where the image extends beyond the frame of the screen or
whiteboard you just have to push the "Screen Fit" button and the image frame
automatically matches up with the edges of the screen.

Auto power on feature
- The projector starts automatically upon connecting a VGA*, HDMI**, or USB
cable to the device itself. This feature means you no longer have to use the
power on button because startup is activated with cable insertion.
- *VGA auto power on is available
with Computer 1 only
**HDMI
auto power on is available with HDMI1 only

Gesture presentation
- Present smarter with newly added ‘gesture presentation’ function. Simply
move your hand in front of the arrows, and make your presentation more
engaging and realistic with the audience.
Split Screen

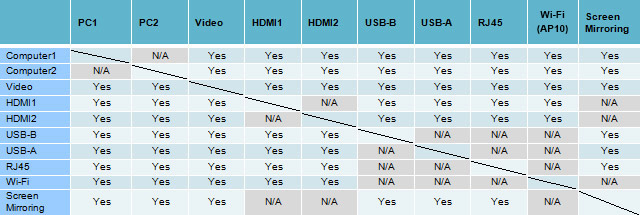

- Split Screen allows you to display content from two inputs simultaneously,
side by side, on a single screen. With three layout options you can display
video and presentation materials, and run video on both screens.

New home screen
- New home screen offers quick and easy access to a variety of useful
functions. Also, all source information, no matter what the source input is,
can be seen at a glance. Wireless connections can be made easily because all
the information you need is right there on the screen.
EasyMP Multi-PC projection
- The EasyMP Multi PC Projection application makes it possible to connect
with up to 50 computers and partition the screen for split screen projection.
- The moderator can select up to 4 of the connected devices and project
their screens from the projector, maintaining control and preventing
interference with the projected screen.

EasyMP Monitor
- With EasyMP Monitor, Epson's network monitoring and control software, a
single PC can see which projectors are available and if they are running
efficiently, even across the biggest of networks. This series can be
configured remotely, with instant email alerts for pre-defined critical
indicators such as non-functioning devices or overheating lamps. Each
projector's serial number can also be accessed remotely via LAN/serial
connection.
Wireless LAN Enterprise security
- The EB-2000 series projectors now include ‘WPA-Enterprise security' mode
to connect in robust integrated network environment; compatible with WPA,
WPA2-PSK and WPA2-EAP security protocols.
Longer lamp life
- The long 10,000H* lamp life saves time and money by reducing the frequency
of costly lamp replacements.
- *Power Consumption: ECO mode

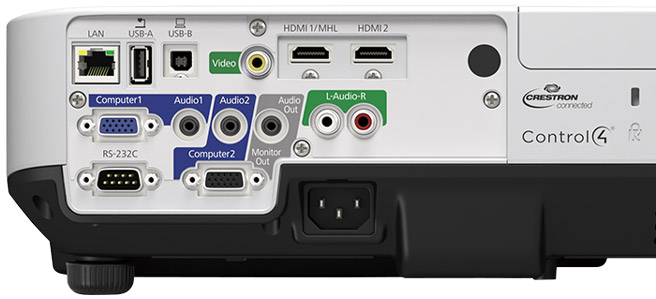

Connectivity Panel

Specifications
|
PRODUCT
NAME |
Epson
EB-2250U |
|
|
PRODUCT
CODE |
V11H871053 |
|
|
|
|
|
TECHNOLOGY |
|
|
|
Projection
System |
Epson 3LCD, 3-chip
technology |
|
|
LCD
Panel |
0.67-inch
panel |
|
|
|
|
|
OPTICAL |
|
|
|
Zoom |
1-1.6 (Optical
Zoom) |
|
|
Screen
Size |
50" to 300" [1.46m to
8.95m] (Zoom: Wide) |
|
|
50" to 300" [2.43m to
14.79m] (Zoom: Tele) |
|
|
Projection
Distance |
80" screen 2.36m -
3.92m |
|
|
Throw
Ratio |
1.38 (Zoom: Wide), 2.28
(Zoom: Tele) |
|
|
Projection Lens F
Number |
1.5 -
2.0 |
|
|
Projection Lens Focal
Length |
23mm -
38.4mm |
|
|
Focus
Method |
Manual
Focus |
|
|
Offset |
10:01 |
|
|
|
|
|
IMAGE |
|
|
|
Colour Light
Output |
5,000
Lumens |
|
|
White Light
Output |
5,000
Lumens |
|
|
Resolution |
WUXGA |
|
|
Native Aspect
Ratio |
16:10 |
|
|
Contrast
Ratio |
15,000:1 |
|
|
Lamp
Hours |
Normal/Eco:
5,000/10,000 Hours |
|
|
Lamp
Type |
300W
UHE |
|
|
Keystone
Correction |
Vertical: -30 to +30
degrees |
|
|
Horizontal: -30 to +30
degrees |
|
|
|
|
|
CONNECTIVITY |
|
|
|
Input:
Video |
1 x RCA
(Yellow) |
|
|
Input:
Computer |
2 x D-sub 15-Pin (RGB),
1 x USB 2.0 type B |
|
|
Input: USB Memory
Device |
1 x USB Type
A |
|
|
Input: Three-In-One USB
Display |
1 x USB 2.0 type
B |
|
|
Input:
Digital |
2 x HDMI (1 x
MHL) |
|
|
Input:
Audio |
1 x RCA (Red/White), 2
x Stereo mini jack |
|
|
Input:
Control |
1 x USB 2.0 type B, 1 x
RS232C |
|
|
Input :
HDBaseT |
NA |
|
|
Input: Epson USB
Document Camera |
1 x USB 2.0 type
A |
|
|
Network
I/O: |
1 x RJ45
(100Mbps) |
|
|
Wireless
Connectivity |
Optional |
|
|
WiDI/Miracast |
NA |
|
|
Output:
Video |
1 x D-sub 15 pin (black
moulding) |
|
|
Output:
Audio |
1 x Stereo mini
jack |
|
|
Speaker
Output |
16W |
|
|
|
|
|
ADVANCED
FEATURES |
|
|
|
EasyMP Network &
Control |
Yes |
|
|
EasyMP Network
Projection |
Yes |
|
|
PC Free
Presentations |
Yes |
|
|
USB Plug 'n
Play |
Yes |
|
|
AV Mute
Slide |
Yes |
|
|
Instant
Off |
Yes |
|
|
Auto Power
On |
Yes |
|
|
Direct Power
On/Off |
Yes |
|
|
Security |
Padlock & Security
Cable Hole |
|
|
Kensington-style
lock provision |
|
|
Wireless LAN Unit
Lock |
|
|
Password protect
function |
|
|
Colour
Modes |
Dynamic, Presentation,
Cinema, sRGB, Blackboard, DICOM SIM |
|
|
|
|
|
GENERAL |
|
|
|
Dimensions D x W x H
(excluding feet) |
291 x 377 x 110
mm |
|
|
Weight |
4.8kg
(approximate) |
|
|
Compatible lamp
model |
ELPLP95
(New) |
|
|
Lamp
Warranty |
12 months or 750
hours* |
|
|
Projector
Warranty |
3
Years |
|
|
Power Consumption: Lamp
on |
Normal/Eco:
420/350W |
|
|
Power Consumption:
Standby |
0.5W (communication
off) |
|
|
Noise
Level |
Normal/Eco:
39/29dB |
|
|
|
|
|
PRODUCT
OPTIONS |
Item
Code |
Description |
|
ELPLP95 Replacement
Lamp |
V13H010L95 |
|
ELPAF41 Replacement Air
filter |
V13H134A41 |
|
ELPMB23 Ceiling Mount
(Standard) |
V12H003B23 |
|
Extension Pole 668-918
mm |
V12H003P13 |
|
Extension Pole
918-1,168 mm |
V12H003P14 |
|
Soft Carrying Case
ELPKS68 |
V12H001K68 |
|
ELPAP10 Wireless LAN
Adapter |
V12H731P01 |
|
ELPAP09 Quick Wireless
Key |
V12H005M09 |
|
ELPSC21B 80" Portable
tripod screen |
V12H002S2Y |
|
|
|
