DESCRIPTION
Network Video Recorder Instant
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Managed cameras: (15) HD, (8) 2K, (6) 4K

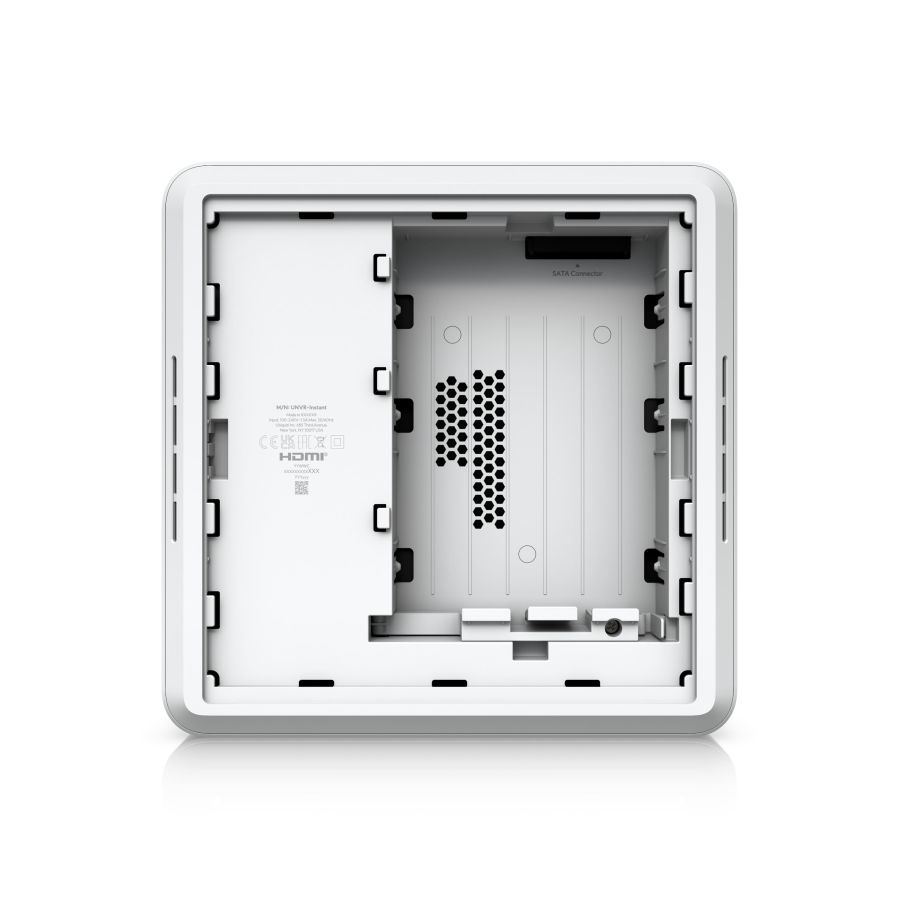

(1) 3.5" drive bay
Vantage Point support

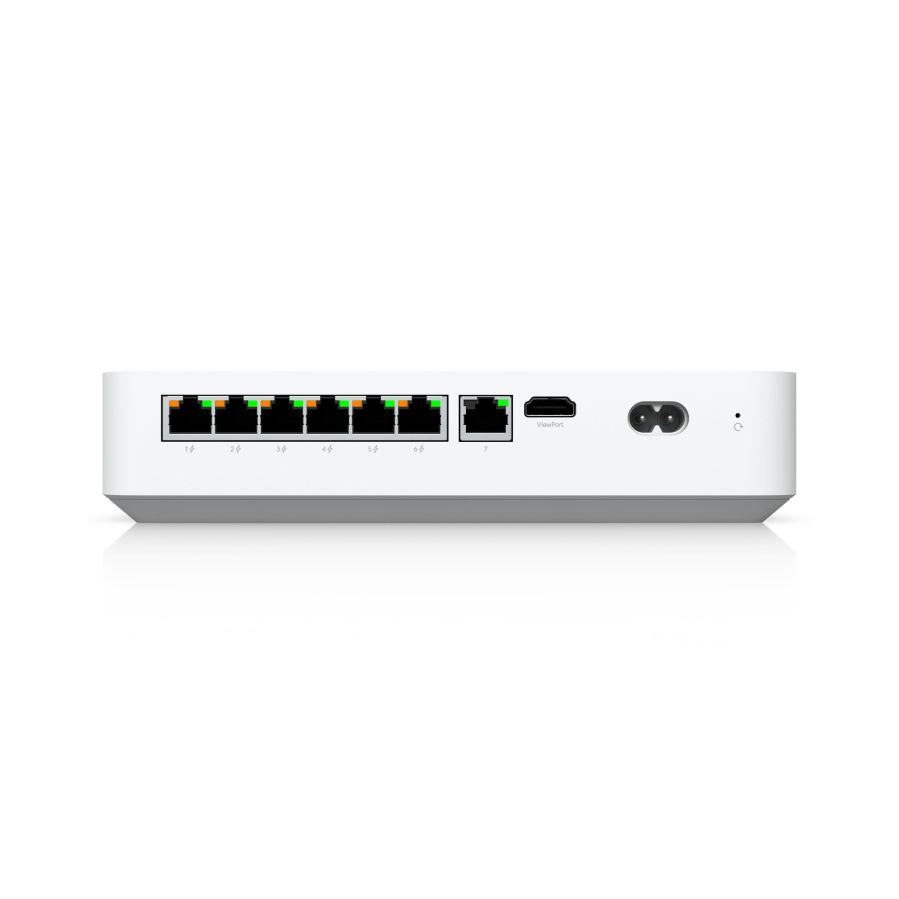

(1) GbE RJ45, (6) GbE PoE RJ45, (1) HDMI port (Viewport)
Compact Desktop form factor
Door Access Support

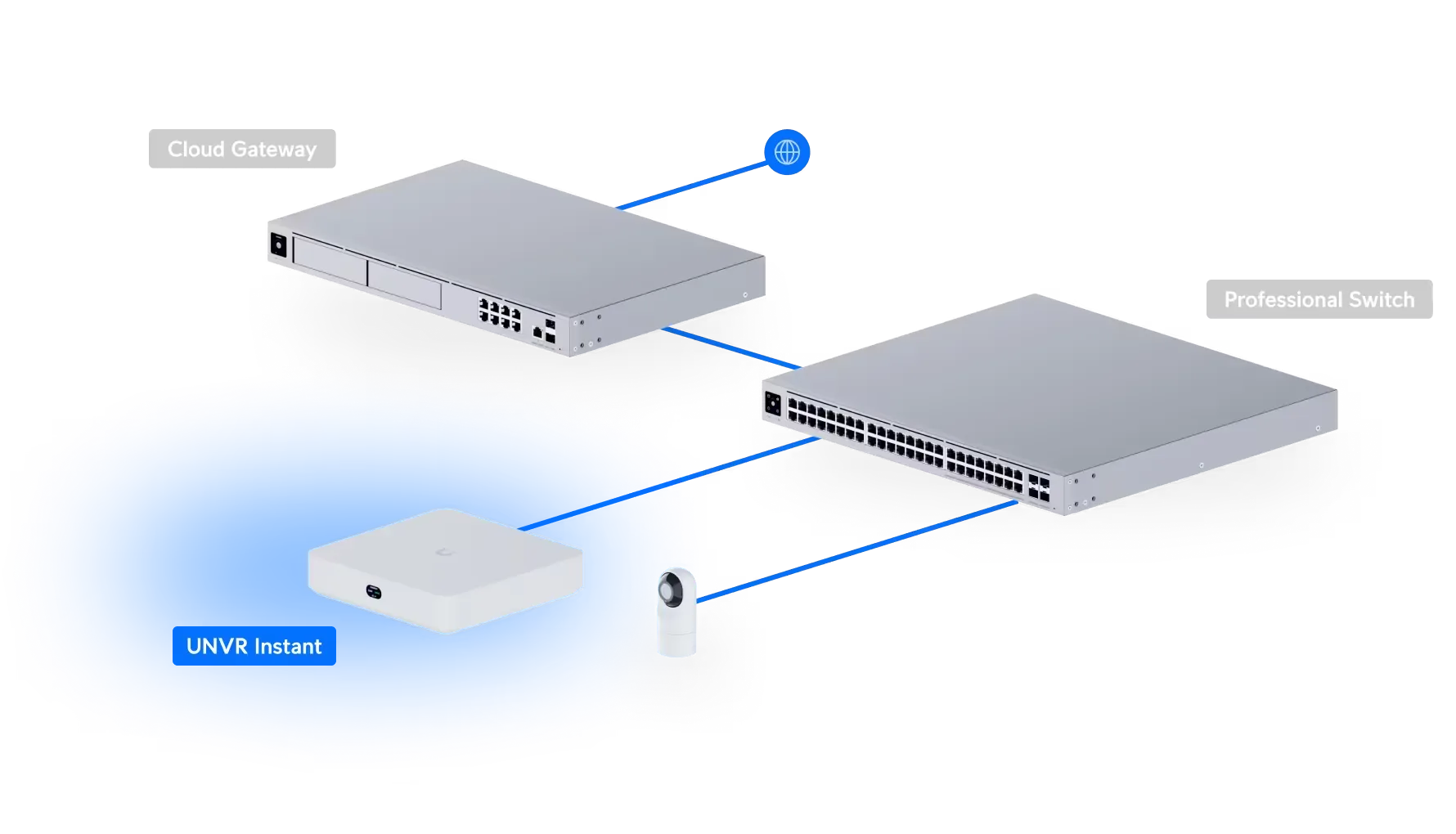

Note. Requires connection to a Gateway or Layer 3 switch.
A New Era of Security for Everyone
Today marks a big step forward in making professional-grade physical security accessible to everyone. The new UNVR Instant is a compact, all-in-one solution built to deliver enterprise-class performance without complexity or high costs.

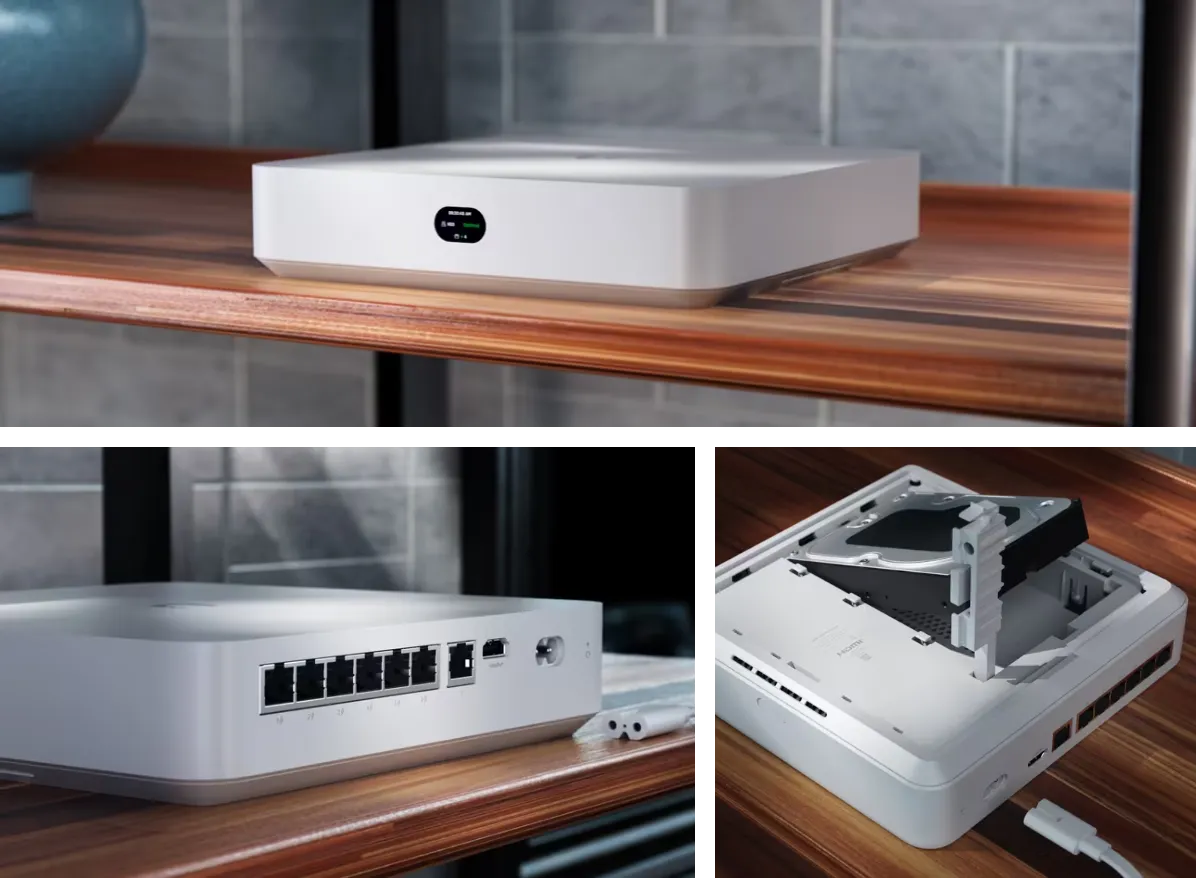

Power and Flexibility in One Device
UNVR Instant is equipped with a 3.5 HDD bay, an integrated 6-port PoE switch, and a ViewPort output for real-time monitoring. Supporting up to (8) 2K cameras or (6) 4K cameras, it redefines whats possible at this price point.

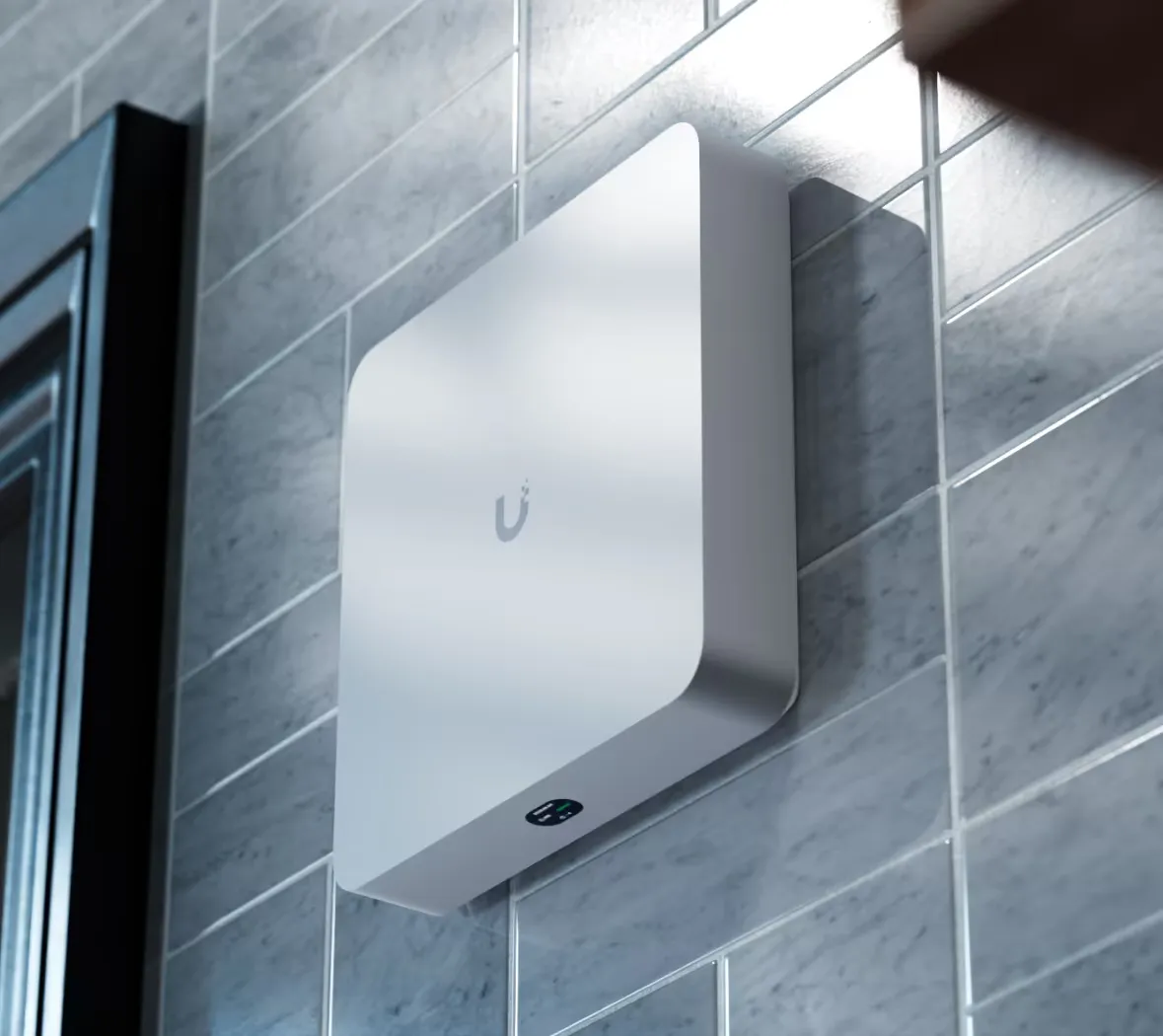

Compact Yet Powerful
UNVR Instant makes enterprise-class security simple and affordable. Compact, powerful, and easy to set up, its built for anyone who needs reliable protection.
- Designed for homes, small businesses, and enterprises alike
- 3.5 HDD bay for expandable storage
- Built-in 6-port PoE switch for simple connectivity
Breaking the Barrier
UNVR Instant brings professional-grade physical security within reach, making it simpler, faster, and more affordable than ever.
- Live monitoring via ViewPort output
- Quick installation for fast deployment
- Cloud-based management with no hidden costs
Setup That Just Works
Getting started with UNVR Instant takes only seconds. Powered by the UniFi Protect platform, it combines user-friendly design with advanced functionality. Local storage ensures high-speed access and privacy, while cloud-based management gives you control from anywhere, all with zero licensing fees.
Overview
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect: Yes
Access: Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Storage Capacity
(1) 3.5" drive bay
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop

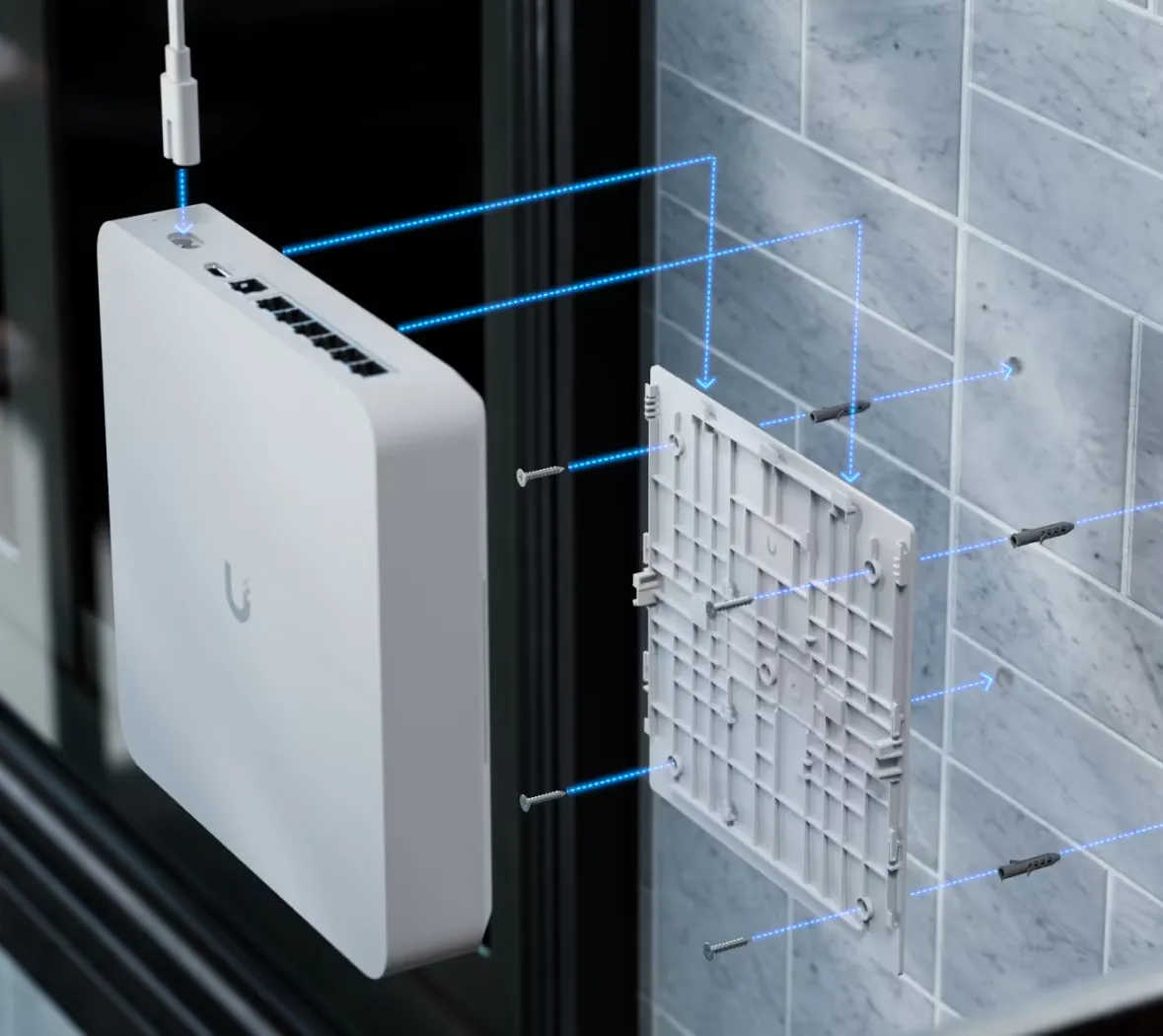

Mounting
Wall, DIN rail mount (Included)
Hardware
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W*
*Excluding PoE output & HDD power consumption
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
Max. PoE Wattage per Port by PSE
PoE: 15.4W
Voltage Range PoE Mode
44-57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Management
Ethernet
Bluetooth
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE, Electrical Safety
