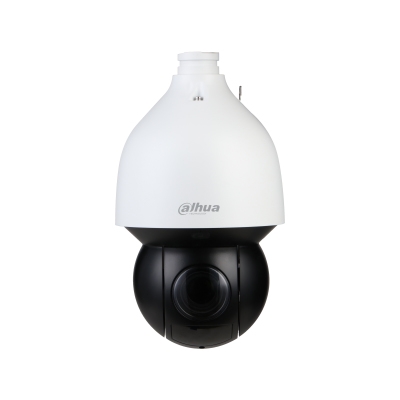

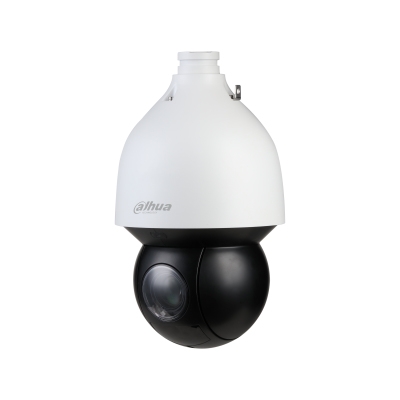

Dahua Technology WizSense DH-SD5A225GB-HNR-SL security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Product May Vary From Image
Our Price:
$1,090.35
Quantity:
Part No:
540762
Brand:
Manuf No:
DH-SD5A225GB-HNR-SL

DHSD5A225GBHNRSL
Ship Weight:
2 KG  Details
Usually Ships:
1-3 Days   More info
Product Description
Performance
Preset pointsYes
PTZ modes5 Pattern
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Auto-trackingYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 IEC 60950-22 IEC 62236-4 IEC 60068-2-6
Design
IK codeIK10
Form factorDome
Product colourBlack, White
Mounting typeCeiling/Wall/Pole
International Protection (IP) codeIP67
Camera
Minimum illumination0.0005 lx
Tilt angle range-15 - 90
Tilt speed300  /sec
Pan range0 - 360
Pan speed400  /sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30,000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal58.5
Lens viewing angle, vertical33.2
Lens viewing angle, diagonal67.5
Tilt manual speed0.1 - 200  /sec
Pan manual speed0.1 - 300  /sec
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Lens system
Maximum aperture number1.6
Auto focusYes
Closest focusing distance0.1 m
Minimum aperture number3.5
FocusMotorized/Manual
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Focal length range4.8 - 120 mm
Night vision
Night visionYes
LED typeIR
Number of illumination LEDs4
Video
Noise reductionYes
Privacy maskingYes
Gain control typeAuto/Manual
Region of Interest (ROI) encodingYes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate3 kbps - 8192 kbps
Back Light Compensation (BLC)Yes
Noise reduction technology2D noise reduction, 3D noise reduction
Maximum resolution1920 x 1080 pixels
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Frame rate30 fps
Video streamingYes
Total megapixels2 MP
Video recordingYes
Audio
Signal-to-Noise Ratio (SNR)55 dB
Audio formats supportedG.711 A-law, G.711 μ-law, G.722.1, G.723, G.726, G.729, PCM
Network
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Number of users20 user(s)
Streaming methodMulticast, Unicast
Ethernet LANYes
Supported network protocolsHTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Storage
ROM capacity4096 MB
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Built-in HDDNo
Maximum memory card size512 GB
Internal memory1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Motion sensorYes
Video motion detectionYes
Management features
Web browserYes
Web-based managementYes
Power
Power source typeDC, PoE
Power consumption (typical)13 W
Power consumption (max)22 W
DC output voltage24
Certificates
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 IEC 60950-22 IEC 62236-4 IEC 60068-2-6
Operational conditions
Operating temperature (T-T)-40 - 70  C
Weight & dimensions
Height332 mm
Diameter19 cm
Weight4.7 kg
Package weight8 kg
Packaging content
Number of cameras1
Other features
FocusMotorized/Manual
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG



2MP 25x Starlight IR WizSense Network PTZ Camera
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopts independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Product Warranty


12 Month Return To Base
