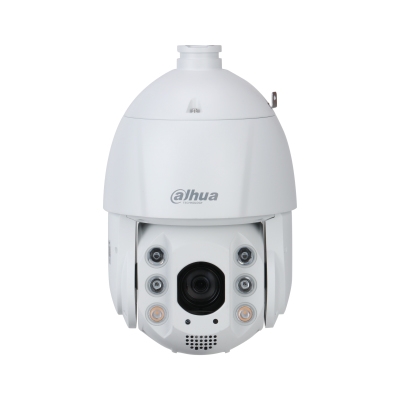

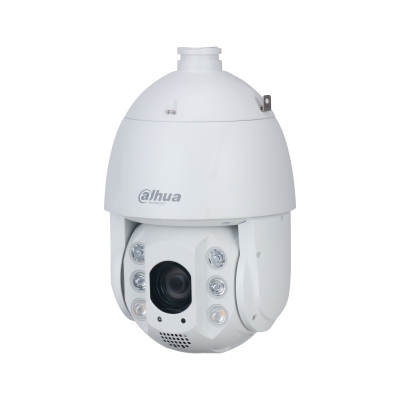

Dahua Technology WizSense DH-SD6C3432XB-HNR-AGQ-PV security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Product May Vary From Image
Our Price:
Part No:
Manuf No:
Ship Weight:
2 KG  Details
Usually Ships:
1-3 Days   More info
Product Description
PTZ modes5 Pattern, 8 Tour
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014
Form factorTurret
Product colourWhite
Mounting typeCeiling
International Protection (IP) codeIP66
Tilt preset speed150  /sec
Pan preset speed240  /sec
Minimum illumination0.0005 lx
Tilt angle range-20 - 90
Pan range0 - 360
White balanceAuto, Indoor, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter speed1/1 s—1/30,000 s
Lens viewing angle, horizontal55.8—2.3
Lens viewing angle, vertical31.9—1.3
Lens viewing angle, diagonal63.7—2.7
Tilt manual speed0.1 - 120  /sec
Pan manual speed0.1 - 160  /sec
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Lens system
Number of lenses1
Maximum aperture number4
Auto focusYes
Closest focusing distance0.1 m
Detect distance3080 m
Observe distance1216.6 m
Recognize distance616 m
Identify distance308 m
Minimum aperture number1.6
Zoom capabilityYes
Optical zoom32x
Digital zoom16x
Focal length range4.8—154
Night vision
Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs4
Noise reductionYes
Gain control typeAuto/Manual
Bit rate1024 kbps—7936 kbps
Noise reduction technology2D noise reduction, 3D noise reduction
Maximum resolution2560 x 1440 pixels
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA)
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Frame rate30 fps
Total megapixels4 MP
Audio input channels1 channels
Audio output channels1 channels
Audio formats supportedG.711, G.722.1, G.723, G.726, G.729
4G standardLTE-TDD & LTE-FDD
Ethernet LANYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS
Mobile network generation4G
Mobile network connectionYes
ROM capacity4000 MB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
Ports & interfaces
RS-485 ports1
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Intelligent Video Surveillance (IVS) system featuresFace detection
Alarm input channels2
Alarm output channels1
Power source typeDC, PoE
Power consumption (typical)4 W
Power consumption (max)27 W
DC output voltage12
DC output current4 A
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014
Operational conditions
Operating temperature (T-T)-40 - 70  C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Height325 mm
Diameter20.2 cm
Weight4.4 kg
Package weight6.4 kg
Packaging content
Number of cameras1
Other features
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+

Designed with Starlight technology and 1/2.8" CMOS, the camera delivers high-quality monitoring images even in environments with low lighting, and provides back-end applications with round the clock, state-of-the-art data services. It supports a variety of AI functions for improved detection accuracy through its built-in neural network processor and is compatible with solar power supplies, meeting the heavy demands of long working hours. The camera features behavior detection such as tripwire and intrusion, and multiple types of alarm linkage actions such as white light warning, audio playing and target tracking. To facilitate monitoring and analysis, it also features target filtering, face detection, and foreign object detection, and supports 4G network transmission and waking up from sleep mode.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

Protection (—10% to +25%, 6 kV)
Designed with —10% to +25% input voltage tolerance, the camera is suitable for even the most unstable outdoor conditions. Its 6 kV lightning rating ensures protection against lightning for both the camera and its structure.

Siren and Light Active Deterrence
The camera supports the white light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in the alarm voice, and supports customized voice importing.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.

Product Warranty

12 Month Return To Base
