| Performance |
|---|
| Fog proof | Yes |

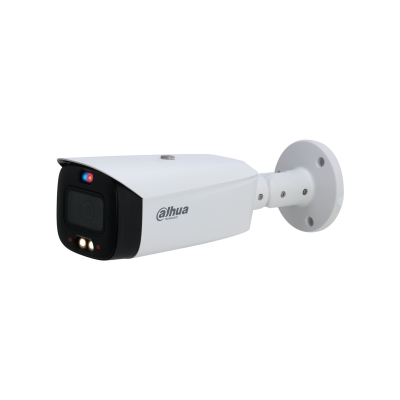

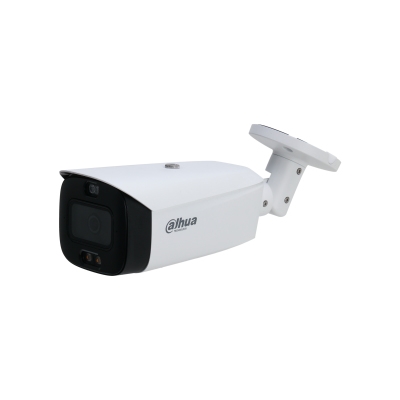

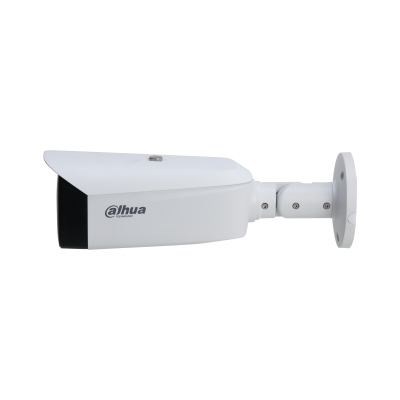

| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Design |
|---|
| Fog proof | Yes |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Housing material | Metal, Plastic |
| Camera |
|---|
| Adjustment shutter speed | Auto/Manual |
| Tilt angle range | 0 - 90 ° |
| Pan range | 0 - 360 ° |
| White balance | Auto, Manual, Natural, Outdoor, Street lamp |
| Angle of rotation | 360 ° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, horizontal | 106 ° |
| Lens viewing angle, vertical | 55 ° |
| Lens viewing angle, diagonal | 125 ° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Closest focusing distance | 2 m |
| Detect distance | 91 m |
| Observe distance | 36.4 m |
| Recognize distance | 18.2 m |
| Identify distance | 9.1 m |
| Fixed focal length | 2.8 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Video |
|---|
| Noise reduction | Yes |
| Privacy masking | Yes |
| Gain control type | Auto/Manual |
| Smart IR | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 3 kbps-20480 kbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.264B, H.265, H.265+ |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 704 x 576, 704 x 480, 1280 x 720 (HD 720), 3072 x 2048, 3072 x 1728, 1280 x 960, 2048 x 1536 (QXGA), 3840 x 2160, 352 x 288, 352 x 240, 2304 x 1296, 2592 x 1944, 640 x 480 (VGA), 2668 x 1512, 2688 x 1512 |
| Video compression formats | H.264, H.264+, H.264B, H.265, H.265+ |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Audio |
|---|
| Audio input channels | 1 channels |
| Audio output channels | 1 channels |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Built-in microphone | Yes |
| Audio formats supported | G.711 A-law, G.726, PCM |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Client interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP |
| Storage |
|---|
| ROM capacity | 128 MB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Internal memory | 512 MB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
| Video motion detection | Yes |
| Mirror | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Management features |
|---|
| Web browser | Yes |
| Management software | Smart PSS, DSS, DMSS |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 9.1 W |
| Power consumption (typical) | 4.5 W |
| Power consumption (max) | 76 W |
| DC output voltage | 12 |
| Certificates |
|---|
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements |
|---|
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions |
|---|
| Width | 94.4 mm |
| Height | 84.7 mm |
| Length | 288.4 mm |
| Weight | 1 kg |
| Package weight | 1.23 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | H.264, H.264+, H.264B, H.265, H.265+ |
| Browser supported | IE: IE8, IE9, IE11 Chrome Firefox |
