Viewsonic 3,500 ANSI Lumens 1080p projector for home and
business
Overview
- 3,500 ANSI Lumens with native Full HD 1080p
- Energy-efficient SmartEco+ Mode for lamp life up to 20,000hrs
- Vertical Lens Shift
- Colour Profile Preference with vColorTuner
- SuperColor technology

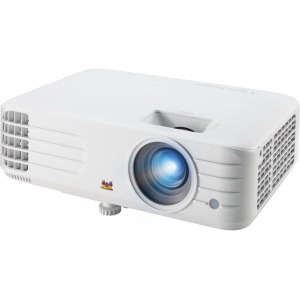

The ViewSonic PX701HD is a high brightness 3,500 ANSI lumens projector
featuring a Full HD 1080p resolution that offers impressive visual performance
in a brightly lit living room or meeting room. The projector adopts the latest
lamp design to extend lamp life of up to 20,000 hours under SuperEco+ mode,
effectively reducing lamp replacement and maintenance costs. A digital lens
shift allows users to make adjustments by remote control, its also compatible
with the vColorTuner function for color profile exchange and adjustments. The
dual HDMI inputs and USB power supply allow users to connect to a multitude of
multimedia devices for gaming, movies, or a wireless dongle for wireless
presentation.
Bright and Clear Images Anywhere
A 3,500 ANSI Lumens of brightness and a 1080p Full HD resolution guarantee
bright and clear images in any environment, including rooms with high levels of
ambient lights.
Vivid Color Performance
ViewSonics proprietary SuperColor technology displays a wide color range,
ensuring that users enjoy a true-to-life color performance in both bright and
dark environments without sacrificing image quality.
The Energy-efficient SuperEco+ Mode for a Lamp Life of up to 20,000
Hours
With the latest technology to enhance lamp life, the SuperEco+ mode greatly
extends the durability of the PX701HD from 15,000 hours to 20,000 hours of use
with a signal input.
SuperEco+ Mode: when the projector has not received an input signal for 5
minutes, the projected images are dimmed by 40%, extending the lamps lifespan to
20,000 hours on average for reliable long-term usage.

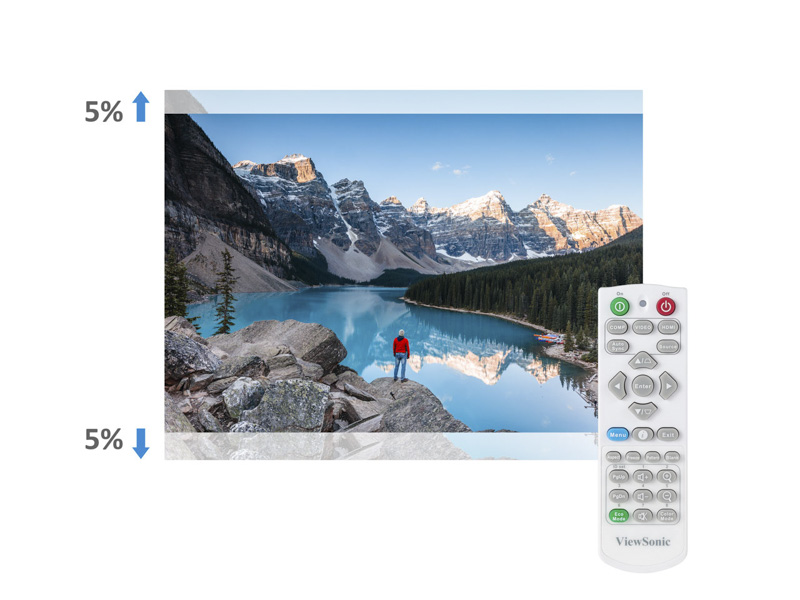

Flexibility in Image Projection
The PX701HD offers 10% flexibility of vertical image adjustment, so the users
can shift the image up or down without distorting the image with remote control,
making the installation quicker and easier.

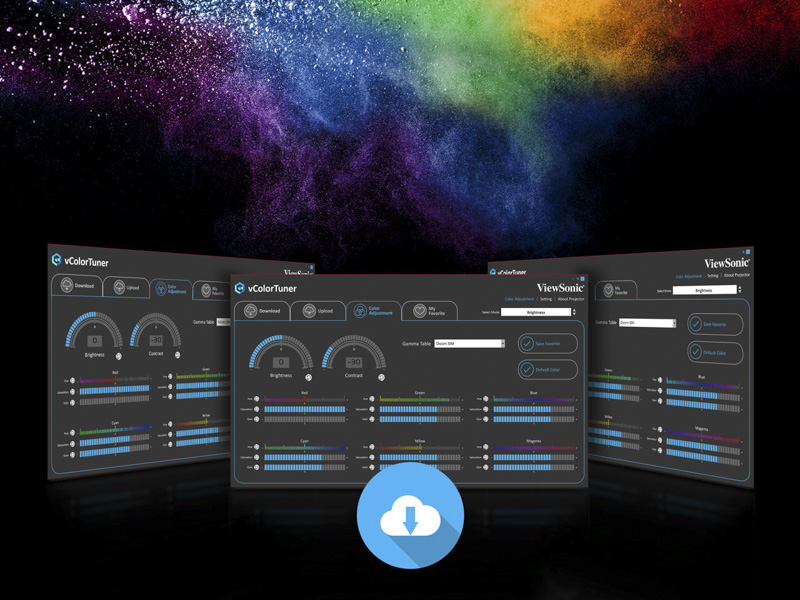

Color Profile Preference with vColorTuner
By using a cloud-based color profile exchange, users can create their own
color profile to fit their preferences and share with others.
Also, users can download other profiles from their projectors and fine-tune
them as their own
Customized User Modes for Your Color
Preference
Aside from ViewSonics default picture mode, two extra user modes were added
to ensure that the users can save their preferred settings with up to a total of
7 color modes.

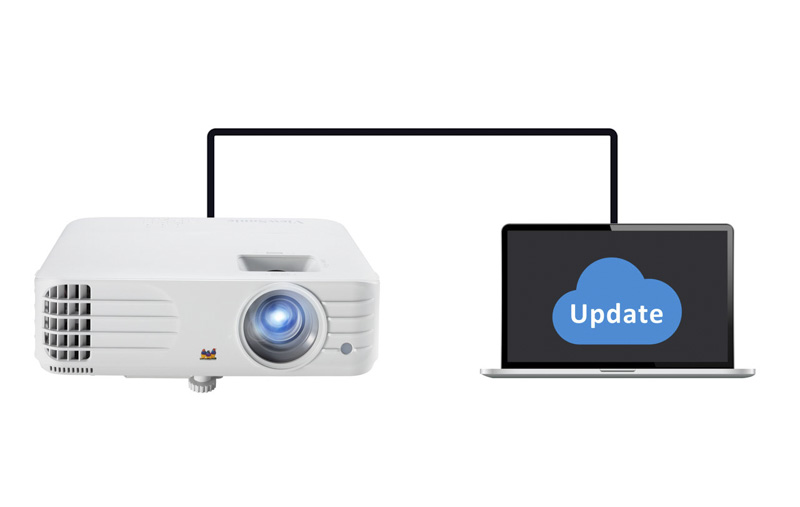

A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the
ability to keep your projector firmware up to date easily and conveniently; no
need to take your projector in to a service center for software updates.

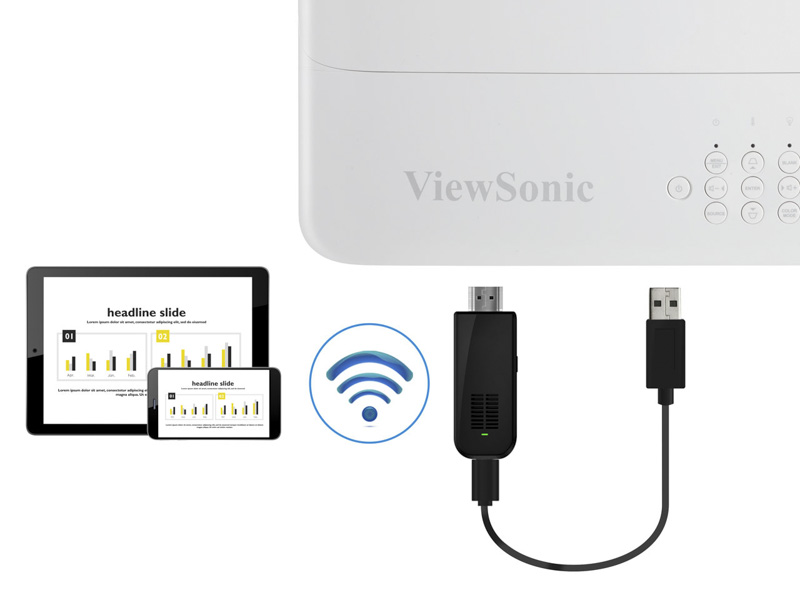

Integrated Power Source
A built-in 5V/1.5A USB power output can be used to supply power to HDMI
wireless dongles, eliminating the need for separate power adapters when
streaming your favorite multimedia content.

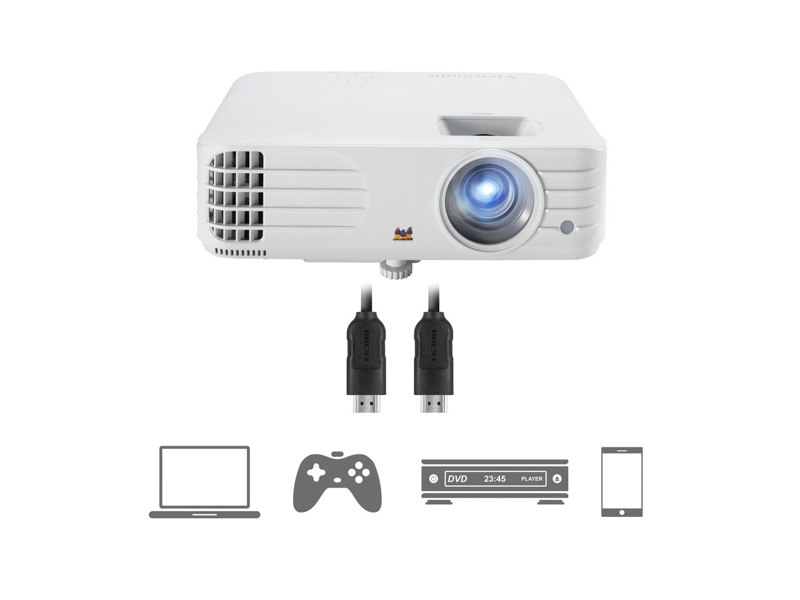

Extensive Connectivity
Dual HDMI ports provide enough connectivity to support any of your HDMI
multimedia devices, delivering a big screen experience for any occasion.
Immersive 3D Viewing
The PX701HD is capable of projecting 3D content directly from 3D Blu-ray
players and HDMI-enabled devices such as laptops, tablets, and media players via
HDMI connection.
Powerful Sound
The PX701HD is equipped with a larger speaker, delivering immersive audio
performance.

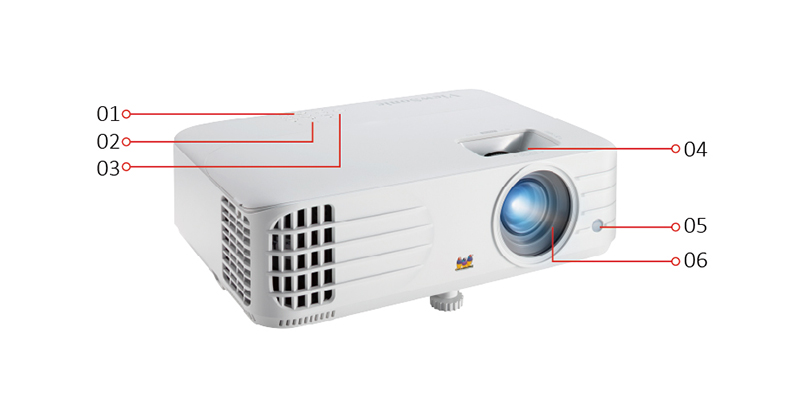

- Keypad
- LED indicator
- Power Key
- Zoom/Focus
- Front IR
- Projection Lens

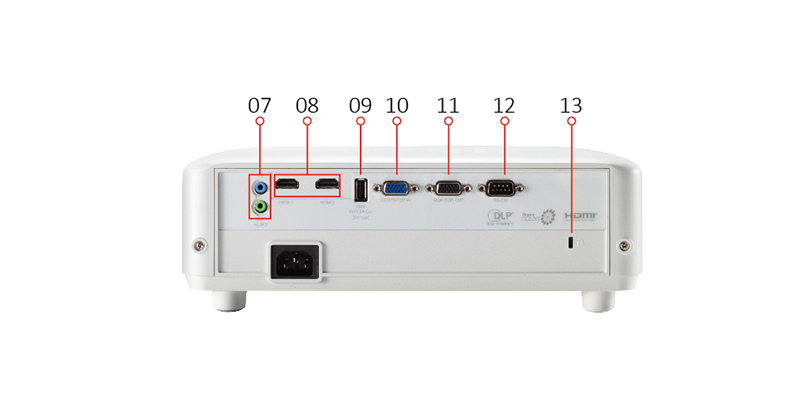

- Audio in/out
- Dual HDMI
- USB Type A
- Computer in
- Monitor out
- RS232
- Kensington Lock Slot
Projection Distance Calculator
Use ViewSonic projection distance calculator to find the best projector
installation distance for your environment.
Specifications
SPECIFICATION
|
Projection
System: 0.47" 1080p |
|
Native
Resolution: 1920x1080 |
|
DMD
Type: DC3 |
|
Brightness: 3500
ANSI Lumens |
|
Contrast Ratio with
SuperEco Mode: 12000:1 |
|
Display
Color: 1.07 Billion Colors |
|
Light Source
Type: Lamp |
|
Light Source Life
(Normal): 5000 |
|
Light Source Life
(SuperEco): 20000 |
|
Lamp
Watt: 203W |
|
Lens: F=2.0~2.05,f=15.843mm~17.445mm |
|
Projection
Offset: 110%+/-6% |
|
Throw
Ratio: 1.5-1.65 |
|
Image Size: 30" -
300" |
|
Throw
Distance: 1m~10.96m (100"@3.32m) |
|
Keystone: +/- 40
(V) |
|
Lens Shift V.
Range: Yes (+/- 5%) |
|
Optical
Zoom: 1.1x |
|
Digital Zoom: 0.8x
~ 2.0x |
|
Audible Noise
(Normal): 31dB |
|
Audible Noise
(Eco): 27dB |
|
Input
Lag: 16ms |
|
Resolution
Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
|
*RB-Reduced
Blanking |
|
HDTV
Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i,
1080p |
|
Video
Compatibility: NTSC, PAL, SECAM |
|
Horizontal
Frequency: 15K~102KHz |
|
Vertical Scan
Rate: 23~120Hz |
INPUT
|
Computer in (share with
component): 1 |
|
Audio-in
(3.5mm): 1 |
|
HDMI: 2 |
|
(HDMI 1.4/ HDCP
1.4) |
OUTPUT
|
Monitor
out: 1 |
|
Audio out
(3.5mm): 1 |
|
Speaker: 10W |
|
USB Type A
(Power): 1 (5V/1.5A) |
CONTROL
|
RS232 (DB 9-pin
male): 1 |
OTHERS
|
Power Supply
Voltage: 100-240V+/- 10%, 50/60Hz AC |
|
Power
Consumption: Normal: 300W |
|
Standby:
<0.5W |
|
Operating
Temperature: 0~35 |
|
Net
Weight: 2.59kg |
|
Dimensions (WxDxH) with
Adjustment Foot: 312x222x108mm |
|
OSD
Language: English, French, Spanish, Thai, Korean, German, Italian,
Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese,
Turkish, Portuguese, Finnish, Indonesian, India, Arabic,
Vietnamese |
STANDARD ACCESSORY
|
Power
Cord: 1 |
|
VGA
Cable: 1 |
|
Remote
Control: 1 |
|
QSG: 1 |
OPTIONAL ACCESSORY
|
Lamp/Light
Source: RLC-119 |
