Manfrotto MF 400 Geared Head
16.0cm Height, 2.60kg Weight, 10.00kg Load Capacity, 3/8" Screw Quick Release Plate Type

Product May Vary From Image
Part No:
94932
Brand:
Manfrotto  Web Site
Manuf No:
Ship Weight:
3 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

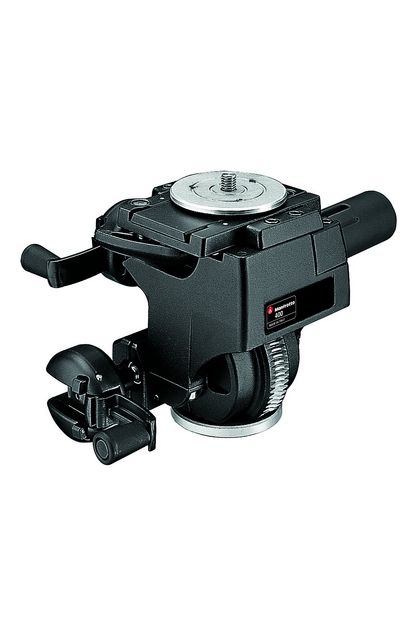

MF 400 Geared Head

This unique head offers precise geared movement in 3 directions. Fold away rotating handles for pan and tilt; and side to side levelling by a separated handle. In addition, the tension holding the round quick release plate can be released to allow fine adjustment with complete safety. Designed to mount on either studio column stands or larger tripods, this geared head for medium and large format cameras, provides the ultimate in fine adjustment and control to achieve the exact framing required. Three 1/4" screws for camera attachment included.

Specifications:

height     16.0 cm
weight  2.60 kg
load capacity  10.00 kg
panoramic rotation  360 °
degrees of rotation for each full turn of handle  8.6 °
color  black
material  aluminum
lateral tilt  -7.5° / +7.5°
front tilt  -90° / +30°
quick release  yes
secondary safety system  yes
bubble spirit level (no)  1
plate type  quick release - with 3/8" screw
attachment (bottom)  3/8" female thread

Product Warranty


1 Year Return to Base
