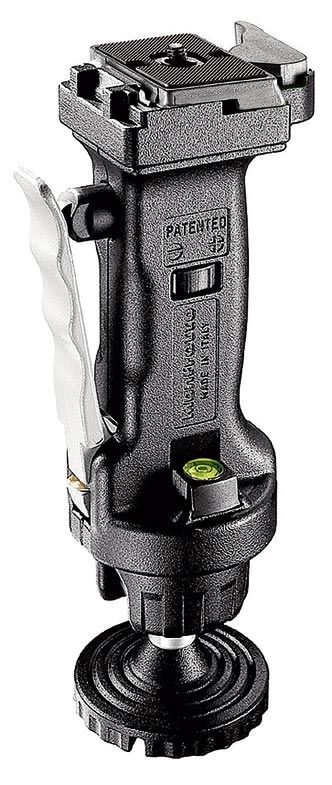

MF 222 Joystick Head
Versatile, quick and easy to use. Just grip the handle and you can position your camera anywhere within a 180 sphere. Supplied with the 200PL quick release camera plate with secondary safety lock, built-in bubble level and tension adjustment. Made of cast aluminium. Ideal for 35mm cameras with short or medium focal length lenses. Camera attachment: 1/4" Optional Plates: 200PL-38, 200PLARCH-14, 200PLARCH-38 PATENTED
Features:
- sturdy all-metal construction.
- the compact, rectangular 200PL quick release plate system fits neatly under small-bodied still cameras up to SLR (even with tele lenses) or small medium format, or under small video cameras or spotting scopes. Its rubber pad gives a good grip without damaging the camera, and its angled sides ensure that it also fits perfectly and tightly into a wide range of Manfrotto heads.
- separate control for pre-setting the friction of the ball when unblocked. The position of the red line indicates the approximate amount of friction applied.
- this head features a secondary security lock so you can't accidentally release the plate (and camera) without meaning to. The lock stops the quick release lever from opening fully.
- a convenient single locking mechanism blocks or frees movement on all axes for greater speed of use.
Advantages:
| |
extremely quick to open/position/close |
| |
easy and intuitive to use |
| |
very flexible camera positioning |
SUITABLE FOR:
| |
"bridge" cameras (compact SLR-type with built-in lenses) |
| |
SLR cameras with short and/or light fixed-length lenses |
height 21.0 cm
weight 0.78 kg
load capacity 2.50 kg
panoramic rotation 360 °
color black
patent patented
material aluminum
independent pan lock no
lateral tilt -90° / +90°
quick release yes
ball friction setting yes
secondary safety system yes
bubble spirit level (no) 1
plate type 200PL-14
attachment (bottom) 3/8" female thread
attachment 1/4'' screw
