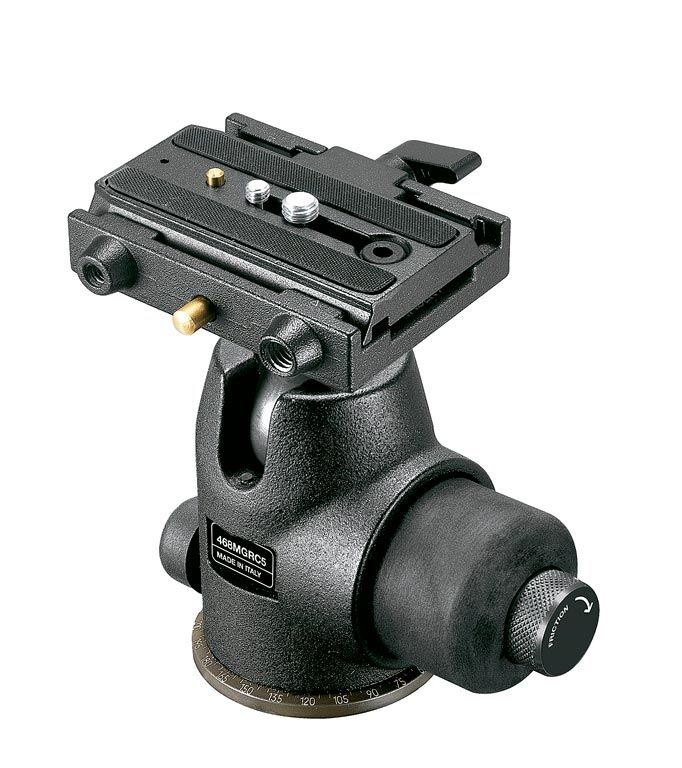

MF 468MGRC5 Hydrostatic Ball Head QR
The Hydrostat is our most advanced ball head, designed to meet the demands of professional photographers for a lightweight, but at the same time heavy duty load capacity head. This model has similar features to our standard range of ball and socket heads, with independent pan and tilt locks, 360° pan and +90° / -90° tilt movement - but employs a revolutionary friction and locking mechanism. An inner oil chamber is compressed by turning the locking knob, exerting even pressure on the whole of the underside of the ball, which ensures sturdier locking and higher capacity... for camera and lens loads of up to 12kg. This head has a magnesium die cast body, a 2” Teflon coated aluminium ball which combined with specially designed tension surfaces provides movement as smooth as silk. A calibrated adjustable tension control allows you to preset the ball tension to suit your camera weight and give you fingertip control. The oversized lock knob is easier and quicker to find and turn. The second benefit of the liquid-based locking mechanism is that it all but eliminates unwanted movement during the locking phase. Completing this masterpiece, a graduated panoramic base and a 501PL quick release sliding camera plate.
Advantages:
| |
compact for easier carrying |
| |
easy and intuitive to use |
SUITABLE FOR:
| |
SLR cameras with short and/or light fixed-length lenses |
| |
SLR cameras with mid-long focal length lenses and zooms |
height 12.0 cm
weight 0.74 kg
load capacity 12.00 kg
panoramic rotation 360 °
color black
patent pat. pending
material magnesium
independent pan lock yes
lateral tilt -90° / +90°
quick release yes
ball friction setting yes
secondary safety system yes
plate type quick release sliding plate - with 1/4" and 3/8" screws + vhs pin
attachment (bottom) 3/8" female thread
