| PRODUCT TYPE |

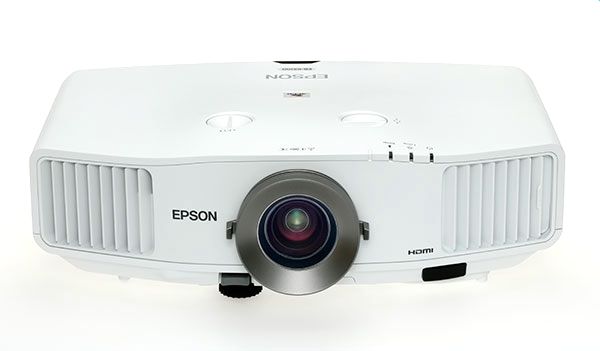

Portable Multimedia Projector |
| PRODUCT NAME |
EB-G5350 |
| PRODUCT CODE |
V11H286053 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.8 inches with MLA |
| |
Driving method |
Poly-Silicon TFT Active Matrix |
| |
Pixel number |
786,432 pixels (1024 x 768) x 3 |
| |
Native resolution |
XGA |
| |
Aspect ratio |
4:3 |
| |
Pixel arrangement |
Cross Stripe |
| |
Refresh Rate |
50Hz-60Hz |
| PROJECTION LENS |
Type |
Manual: zoom / focus |
| |
F-number |
1.64 - 2.5 |
| |
Focus length |
21.27 - 37.93mm |
| |
Zoom ratio |
1:1.8 |
| PROJECTION LAMP |
Type |
E-TORL 210 W UHE |
| |
Optical System |
Dichroic Mirror Separation & Prism Combine Method |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.77m to 8.08m] (Zoom: Wide),
30 to 300 inch [1.42m to 14.57m] (Zoom: Tele)
100" screen 2.66m 4.83m |
| LENS SHIFT RANGE |
| |
MANUAL |
Vertical +/-50% max
(upward and downward) |
| |
|
Horizontal +/-10% max
(left and right) |
| BRIGHTNESS |
| |
High Brightness Mode |
5000 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
| |
Low Brightness Mode |
3200 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
| CONTRAST |
1000:1 |
| BRIGHTNESS UNIFORMITY |
86% |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| SOUND OUTPUT (Internal speaker) |
7W monaural |
| FUNCTION |
Pointer, User Logo, A/V mute, Freeze, E Zoom, Test pattern |
| EFFECTIVE SCANNING FREQUENCY RANGE (Analog) |
| PIXEL CLOCK |
13.5MHz to 162MHz ( up to UXGA 60Hz ) |
| HORIZONTAL |
15KHz to 99KHz |
| VERTICAL |
50Hz to 120Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal |
| FOOT ADJUSTER |
Front-centre / Rear side |
| TILT ANGLE |
-2.5 to 10 degrees |
| KEYSTONE CORRECTION |
Vertical: -40 to +40 degrees (Zoom: Tele)
Horizontal: -20 to +20 degrees (Zoom: Tele) |
|
QUICK CORNER
|
Yes |
| SOURCE SEARCH |
Yes |
| AUTO DETECTION OF RGB YCbCr |
Yes |
| MULTI SCREEN COLOUR ADJUSTMENT |
Yes |
| OPERATION PANEL PROTECTION |
Yes |
| PASSWORD PROTECTED |
Yes |
| HIGH ALTITUDE MODE |
Yes |
| COLOUR MODE |
PC Photo, Presentation,Text, Theatre, Game, SRGB, Blackboard. |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1024 x 768 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. signal |
Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| |
Audio signal |
500mVrms / 47K-ohm |
| VIDEO INPUT TERMINAL |
|
D-sub 15pin x 2 Blue-moulding |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| |
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Audio signal |
500mVrms / 47Kohm |
| VIDEO INPUT TERMINAL |
|
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector
|
| CONTROL I/O |
| USB I/O |
I/O terminal |
Type B x 1 ( for USB Display )
Type A x 1 ( for PC Free ) |
| |
I/O speed |
Type B x 1 ver 2.0
Type A ver 2.0 |
| SERIAL I/O |
I/O Terminal |
D-sub 9 pin x 1 |
| |
I/O signal |
RS-232C |
| HDMI |
|
|
| Input signal |
Video standard
Video signal |
480i/576i/480p/576p/720p/1080i
TMDS ( signal for HDMI ) |
| Input terminal |
Audio signal
Video
|
Linear PCM
HDMI x 1 |
| NETWORK I/O |
| USB I/O |
Type |
Type A x 1 |
| |
Wireless LAN unit |
Optional |
| |
Wired LAN |
RJ45 x 1 |
| CARD SLOT |
Type |
CF x 1 ( 3.3V ) |
| Wireless Specification |
Supported speeds for each mode |
IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11a: 54Mbps
Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors. |
| |
Supported mode |
Adhoc, infrastructure |
| |
Certification |
Wi-Fi Certified |
| |
Card Slot |
SD Card x 1 ( for PC Free ) |
| |
|
|
| OPERATING TEMPERATURE |
0C to 40C (32F to 104F), (20% - 80% Humidity unfrozen)
Thermal shutdown > 45 degree C |
| |
0C to 35C (32F to 95F), ( over 1500m with high altitude mode, High brightness |
| OPERATING ALTITUDE |
0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode) |
| DIRECT POWER ON |
Yes |
| DIRECT POWER OFF |
Yes |
| COOL-DOWN PERIOD |
Instant Off |
| THEFT PROOF |
| |
Wireless LAN Unit Lock |
Yes |
| |
Security Cable |
Yes |
| |
Kensington Lock |
Yes |
| POWER SUPPLY VOLTAGE |
100-240V AC10% 50/60Hz |
| POWER CONSUMPTION |
| |
Lamp On |
327W |
| |
Stand by ( network on ) |
12W |
| |
Stand by ( network off ) |
0.6W |
| DIMENSION |
| EXCLUDE FEET |
311.5mm(D) x 470mm(W) x 135mm(H) |
| MAXIMUM DIMENSION |
311.5mm(D) x 470mm(W) x 151.5mm(H) |
| WEIGHT |
Approx. 6.8Kg |
| FAN NOISE |
|
| HIGH BRIGHTNESS MODE |
35dB |
| LOW BRIGHTNESS MODE |
29dB |
| ACCESSORIES |
| POWER CABLE |
3m |
| COMPUTER CABLE |
|
1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
|
|
| USB CABLE |
N/A |
| REMOTE CONTROL |
Included |
| BATTERY |
Alkaline AA x 2 |
| USER MANUAL SET |
Included (CD-ROM) |
| PROJECTOR SOFTWARE |
Included (CD-ROM) |
| PASSWORD PROTECT STICKER |
Included |
| EASY MP |
| Function |
|
Projector control and projector management via network
Email notification
SNMP
PC Free ( photo, Image . movie )
Network presentation ( Network and USB )
PJ Link
AMX Device Discovery
Web Control
Moving Sending
Transferring and writing files to memory card from network
Windows Vista Presentation ( Pictor )
|
| |
Software |
EMP IP Link ( for Windows*) Web downloaded only
EMP Monitor (for Windows*#)
EMP NS Connection (for Windows*# and Mac)
EMP Slide Maker2 (for Windows*#) |
| |
Security (Wireless LAN) |
WEP, WPA-PSK (TKIP/AES), WPA2-PSK(TKIP/AES)
EAP-TLS, PEAP-TTLS/M5-CHAPv2
EAP-TTLS/MD55.EAP-TTLS/MS-CHAPV2
PEAP/MS-CHAPV2,PEAP/GTC
LEAP EAP-fast/MS-CHAPv2 EAP-Fast/GTC
|
| PC FREE |
Still Image |
JPEG/PNG/BMP/GIF |
| |
Movie |
MPEG2/MPEG4/MPEG4 AVC/ WMV |
| |
Microsoft Powerpoint |
Need to be converted by Slide Maker2 |
| |
USB Devices |
USB A x 1 |
| |
Other storage |
SD x 1 |
* Software compatible with MS Vista
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
