| PRODUCT TYPE |

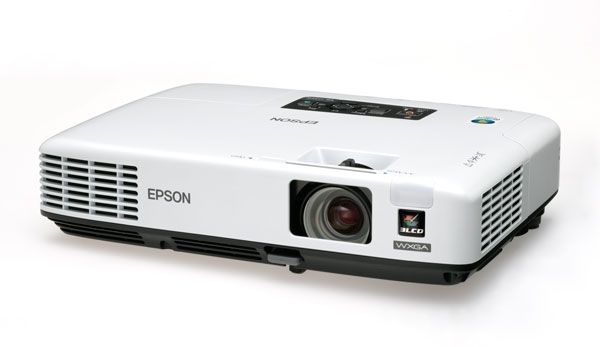

Portable Multimedia Projector |
| PRODUCT NAME |
EB-1735W |
| PRODUCT CODE |
V11H270053 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.74 inch with MLA |
| |
Driving method |
Poly-Silicon TFT Active Matrix |
| |
Pixel number |
(1280 x 800) x 3 |
| |
Native resolution |
WXGA |
| |
Aspect ratio |
16:10 |
| |
Pixel arrangement |
Stripe |
| |
Refresh Rate |
50Hz-72Hz |
| PROJECTION LENS |
Type |
Manual zoom / focus |
| |
F-number |
1.58 - 1.68 |
| |
Focus length |
16.1 19.34mm |
| |
Zoom ratio |
1 - 1.2 |
| |
Offset |
7.6:1 |
| |
Type |
170 W UHE |
| |
Optical System |
Dichroic Mirror Separation & Prism Combine Method |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.76 to7.83m] (Zoom: Tele),
30 to 300 inch [0..62 to 6.82m] (Zoom: Wide)
60" screen 1.26m 1.55m |
| BRIGHTNESS |
| |
High Brightness Mode |
3000 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
| |
Low Brightness Mode |
1900 ANSI lumens
(Colour mode: Game, Zoom: Wide) |
| CONTRAST |
400:1 |
| BRIGHTNESS UNIFORMITY |
89% (Typ.) |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| SOUND OUTPUT (Internal speaker) |
1W monaural |
| FUNCTION |
Pointer, User Logo, A/V mute, Freeze, E Zoom, Help |
| COLOUR MODES |
PC: Photo, Presentation, Theatre, Game, sRGB, Blackboard, Custom
Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Custom |
| EFFECTIVE SCANNING FREQUENCY RANGE |
| PIXEL CLOCK |
13.5MHz to 162MHz |
| HORIZONTAL |
15KHz to 92KHz |
| VERTICAL |
50Hz to 85Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal |
| height ADJUSTER |
Front-centre |
| TILT ANGLE |
0 to 12 degrees |
| KEYSTONE CORRECTION |
Vertical: -30 to +30 degrees (Zoom: Tele) |
| AUTO KEYSTONE CORRECTION |
Vertical: -30 to +30 degrees (Zoom: Tele) |
| Source Search |
YES |
| AUTO DETECTION OF RGB / YCbCr |
YES |
| MULTI SCREEN COLOUR ADJUSTMENT |
YES |
| OPERATION PANEL PROTECTION FUNCTION |
YES |
| |
YES |
| |
(Protection of User logo, Time lock, Network) |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1280 x 800 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. signal |
Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| |
Audio signal |
500mVrms / 47K-ohm |
| VIDEO INPUT TERMINAL |
|
D-sub 15pin x 1 Blue-moulding |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| |
Video signal |
Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Audio signal |
500mVrms / 47Kohm |
| VIDEO INPUT TERMINAL |
|
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue-moulding
(in common with Analog RGB connector)
USB Display |
| AUDIO I/O |
| AUDIO SIGNAL |
|
500mVrms / 47Kohm |
| AUDIO TERMINAL |
|
Stereo mini jack x 1
(Audio In or Out are selectable on OSD menu)
(Audio Out is available via EasyMP) |
| CONTROL I/O |
| USB I/O |
I/O terminal |
Type B x1 (for mouse control)
Type A x 1 ( for IM-X ) |
| USB I/O |
Type |
Type A x 1 ( Special I/O ) |
| |
Supported Wireless LAN |
Standard accessory |
| |
Supported Ethernet |
Optional Unit V12H005M02 |
| OPERATING TEMPERATURE |
5C to 35C (41F to 95F), (20% - 80% Humidity)
Thermal shutdown > 45 degree C |
| OPERATING ALTITUDE |
0m to 2286m < 0ft to 7500ft >
(over 1500m / 4,921ft with high altitude mode) |
| DIRECT Power On |
Yes |
| COOL-DOWN PERIOD |
Instant off |
| START-UP PERIOD |
Approx. 5 seconds |
| Exhaust direction |
side |
| POWER SUPPLY VOLTAGE |
100-240V AC10% 50/60Hz |
| POWER CONSUMPTION |
240VAC 2.7-1.2A 50/60Hz
Lamp On 230W |
| DIMENSION |
| EXCLUDE FEET |
202(D) x 284(W) x 65(H) mm |
| MAXIMUM DIMENSION |
202(D) x 284(W) x 73(H) mm |
| WEIGHT |
Approx. 1.8Kg |
| FAN NOISE |
|
| LOW BRIGHTNESS MODE |
30dB |
| HIGH BRIGHTNESS MODE |
39dB |
| ACCESSORIES |
| POWER CORD |
1.8m |
| COMPUTER CABLE |
1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) |
| USB CABLE |
3.0 m, USB A / B HI-SPEED |
| REMOTE CONTROL |
Compact type (Included) |
| BATTERY |
Alkaline AAA x 2 |
| AUDIO ADAPTER |
3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm |
| WIRELESS LAN ADAPTOR |
802.11a/11b/11g (Included) |
| SOFT CARRYING CASE |
Included |
| LENS COVER |
In built |
| SOFTWARE |
INCLUDED (CD-ROM) |
| PASSWORD PROTECT STICKER |
Included |
| OWNER'S MANUAL |
Included |
| Easy MP Function |
| (wireless functionality) |
|
802.11 a/b/g wireless connectivity
Projector control and projector management via network
Email notification
SNMP
PC Free
Network presentation (Network and USB)
Web Control |
| |
Software |
EMP Monitor (for Windows*#)
EMP NS Connection (for windows*# and Mac)
EMP Slide Maker2 (for Windows*#) |
| |
Security (Wireless LAN) |
WEP, WPA-PSK (TKIP), WPA-PSK(AES)
EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2,
PEAP/MS-CHAPv2, PEAP/GTC
LEAP EAP-East/MS-CHAPv2 EAP-Fast/GTC
* Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
