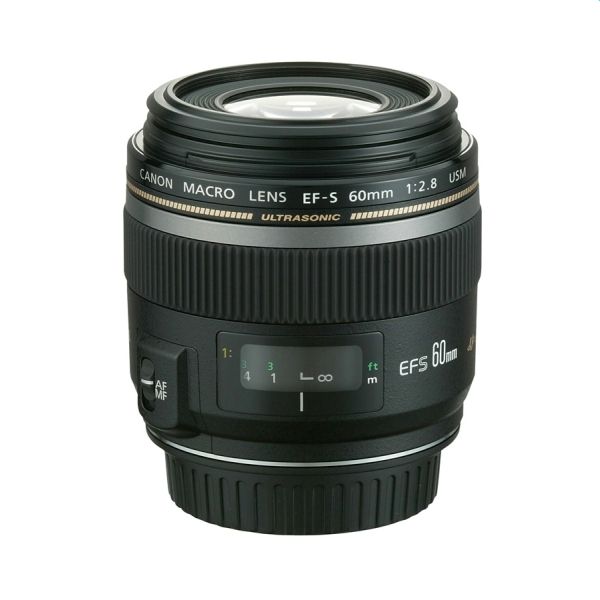

EF-S 60mm f/2.8 Macro USM
- Lightweight and compact macro lens specifically for digital SLR cameras that support EF-S lenses
- Combines a light and compact design with 1:1 macro capability by using an optical design that takes advantage of a short back-focus and small image circle
- Uses a 3-group floating inner focus system to achieve superb image quality over its entire shooting area combined with a 90mm working distance in 1:1 macro mode, the longest in its class
- Inner focusing, ring USM and new AF algorithms for fast and quiet autofocusing
- Optimized lens coating minimising flare and ghosting prone occurring with digital cameras
- Manual focusing enabled even during the AF mode (full-time mechanical manual focus)
- Only environmentally friendly lead free glass used in optics
Optional Accessories
- Lens hood ET-67B
- Lens cap E-52U
- Lens case LP1016
- Dust cap E
|
Focal Length & Max. Aperture:
|
60mm 1:2.8
|
|
Filter Diameter:
|
52mm; P=0.75mm/2 filter
|
|
Magnification with Extension Tube EF12 II:
|
1.28x - 0.20x
|
|
Magnification with Extension Tube EF25 II:
|
1.61x - 0.44x
|
|
Diagonal Angle of View:
|
24 (27.3mm)
|
|
Horizontal Angle of View:
|
20 (22.7mm)
|
|
Lens construction:
|
12 elements in 8 groups
|
|
Minimum aperture:
|
f/32 (f/32 for cameras featuring 1/3-stop increments also)
|
|
No. of aperture blades:
|
7
|
|
Closest focusing distance (m):
|
0.2m
|
|
Focus drive:
|
Ring USM
|
|
Dimensions:
|
73mm dia. x 69.8mm
|
|
Weight:
|
335g
|
