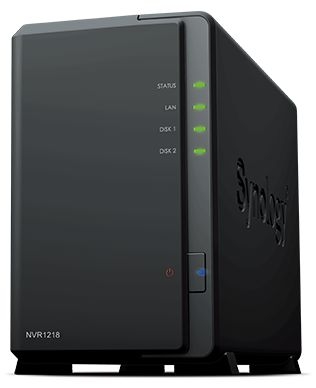

Synology NVR1218 4-Channel Network Video Recorder -
Diskless
Synology Network Video Recorder NVR1218 is an all-in-one, energy efficient
private surveillancesolution with HDMI output for PC-less management and live
monitoring.
All-in-one, stand-alone surveillance solution
Offering an effortless surveillance experience, Synology Network Video
Recorder NVR1218 has the ability to display and record up to 12 IP
cameras1while being extremely energy-efficient.
1080p HDMI output for local display
Watch surveillance feeds and manage cameras/recordings without using a
computer. NVR1218 is equipped with a dedicated HDMI output providing 1080p
display resolution on a monitor, while supporting 720p at up to 12
channels/30FPS.
Flexible deployment
Setup and deploy NVR1218 in remote or secure locations with no external
network access required2.The support for Point of Sales (POS) systems
allows NVR1218 to be integrated with transaction systems to enable video
indexing capability against transaction records.
Expandable recording storage, up to 7 drives
NVR1218 can be connected to Synology DX5173expansion unit to
expandfrom 2 to 7 drives, allowingyouto createRAID 5 volumesand find the ideal
balance foryourstorage strategy. Once connected via eSATA with a specially
designed locking cable, NVR1218's raw capacity can reach 70TB4.
Intuitive Surveillance Station to streamline deployment
Supporting powerful features from Surveillance Station anditsmobileapp,
everything can be done without a PC.
Full support for Surveillance Station features
Surveillance Station provides a centralized, user friendly interface, letting
you manage and monitor IP cameras in your shop or office.
On-the-go surveillance with the DS cam mobile app
DS cam is the mobile extension of Surveillance Station, allowing you to
access Live View, playback recordings, adjust PTZ, and receive push
notifications on your mobile device.
- Status indicator
- LAN indicator
- Drive status indicator
- Power button and indicator
- Audio out
- Audio in
- USB 3.0 port
- HDMI output
-
USB 2.0 port
- Reset button
- eSATA port
- Power port
- Fan
- 1GbE RJ-45 port
- COM port
- Kensington Security Slot
Specifications
CPU |
CPU Model |
Embedded NVR SoC |
CPU Architecture |
32-bit |
CPU Frequency |
Dual Core 1.0 GHz |
Memory |
System Memory |
1 GB DDR3 |
Storage |
Drive Bays |
2 |
Maximum Drive Bays with Expansion Unit |
7 |
Compatible Drive Type* (See all supported drives) |
3.5" SATA HDD |
Maximum Internal Raw Capacity |
20 TB (10 TB drive x 2) (Capacity may vary by RAID types) |
Maximum Raw Capacity with Expansion Units |
70 TB (10 TB drive x 7) (Capacity may vary by RAID types) |
Maximum Single Volume Size |
16 TB |
External Ports |
USB 2.0 Port |
2 |
USB 3.0 Port |
1 |
eSATA Port |
1 |
COM Port |
1 |
Video Outputs |
Video Output |
HDMI X 1 |
Supported Video Resolution |
1080p 60Hz |
Audio Input |
3.5 mm Stereo Audio Jack x 1 |
Audio Output |
3.5 mm Stereo Audio Jack x 1 |
Appearance |
Size (Height x Width x Depth) |
165 mm x 100 mm x 225.5 mm |
Weight |
0.9 kg |
IP Camera Support |
Maximum Channel Number |
12 (including 4 Free License) (See All Supported IP
Cameras) |
Total FPS (H.264)* |
360 FPS @ 720p (1280x720), 12 Channels 100 FPS @ 1080p (19201080),
10 Channels 60 FPS @ 3M (2048x1536), 6 Channels 40 FPS @ 5M
(2591x1944), 4 Channels 30 FPS @ 4K (3840x2160), 3 Channels |
Total FPS (MJPEG)* |
120 FPS @ 720p (1280x720), 12 Channels 80 FPS @ 1080p (19201080),
8 Channels 60 FPS @ 3M (2048x1536), 6 Channel 40 FPS @ 5M
(2591x1944), 4 Channel |
Video Codec |
- MJPEG
- MPEG-4
- H.264
- H.265 (output via local display is not supported)
- MxPEG (output via local display is not supported)
|
Audio Codec |
- PCM
- ADPCM
- G711
- G726
- AMR
- AAC
|
Notes |
In our test environment, live view streams are delivered via Local
Display; video live-viewing and recording share the same video stream from
the camera. Surveillance Station throughput is tested with an Axis network
camera, using continuous recording with live view from Surveillance
Station and motion detection by camera. |
Others |
RJ-45 1GbE LAN Port |
1 |
Wake on LAN/WAN |
|
System Fan |
80 mm x 80 mm x 1 pcs |
Fan Speed Mode |
|
Power Recovery |
|
Noise Level* |
19 dB(A)
|
Scheduled Power On/Off |
|
Power Supply Unit / Adapter |
60W
|
AC Input Power Voltage |
100V to 240V AC |
Power Frequency |
50/60 Hz, Single Phase |
Power Consumption* |
13.64 W (Access) 4.32 W (HDD Hibernation)
|
British Thermal Unit |
46.57 BTU/hr (Access) 14.75 BTU/hr (HDD Hibernation)
|
Environment Temperature |
Operating Temperature |
5C to 45C (40F to 113F) |
Adapter Operating Temperature |
0C to 40C (32F to 104F) |
Storage Temperature |
-20C to 60C (-5F to 140F) |
Relative Humidity |
5% to 95% RH |
Certification |
- FCC Class B
- CE Class B
- BSMI Class B
|
Warranty |
3 Year Hardware Warranty, Extendable to 5 Year Coverage -
EW201 |
Notes |
- Support for Wake on WAN needs switch and routers which recognize
Magic Packet.
- Noise Level Testing Environment: Fully loaded with Seagate 1TB
ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones,
each set up at 1 meter away from the Synology NAS front and rear;
Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75C;
Humidity: 58.2-61.8%
|
DSM Specifications ( See more ) |
File System |
Internal Drives |
EXT4 |
External Drives |
- EXT4
- EXT3
- FAT
- NTFS
- HFS+ (Read Only, with max. volume size 2TB)
|
Storage Management |
Maximum Internal Volume Number |
256 |
Supported RAID Type |
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
|
RAID Migration |
- Basic to RAID 1
- Basic to RAID 5 (with Expansion Unit)
- RAID 1 to RAID 5 (with Expansion Unit)
- RAID 5 to RAID 6 (with Expansion Unit)
|
Volume Expansion with Larger HDDs |
- Synology Hybrid RAID
- RAID 1
- RAID 5 (with Expansion Unit)
- RAID 6 (with Expansion Unit)
|
Volume Expansion by Adding a HDD |
- Synology Hybrid RAID
- RAID 5 (with Expansion Unit)
- JBOD (with Expansion Unit)
|
Global Hot Spare Supported RAID Type |
- Synology Hybrid RAID (with Expansion Unit)
- RAID 1 (with Expansion Unit)
- RAID 5 (with Expansion Unit)
|
System Management |
Maximum Local User Accounts |
1024 |
Maximum Local Groups |
256 |
Maximum Shared Folder |
256 |
Windows Access Control List (ACL) Integration |
|
Log Center |
|
Syslog Events per Second |
100 |
Add-on Packages |
VPN Server |
|
Maximum Connections |
5 |
Environment & Packaging |
Environment |
RoHS Compliant |
Packaging Content |
- Main Unit X 1
- Accessory Pack X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 1
- Quick Installation Guide X 1
- HDD bracket X 1
- USB installation dongle X 1
|
Optional Accessories |
- Surveillance Device License Pack
- Expansion Unit: DX517 X 1
- VS360HD
- VS960HD
|
