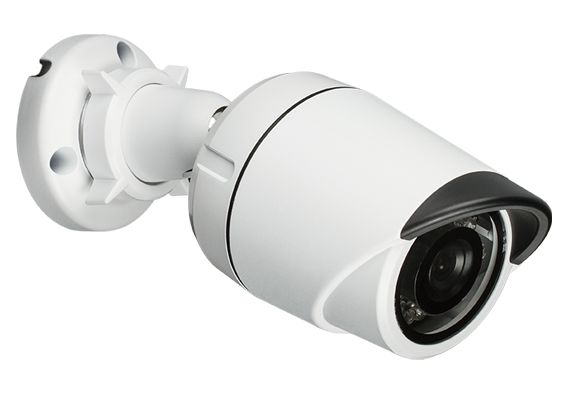

Vigilance HD Day & Night Outdoor Mini Bullet PoE Network Camera
DCS-4701E
- High Definition 720p resolution, up to 1280x720 @ 30fps
- Compact and robust housing
- IP66 weatherproof
- Built-in IR LED illumination
- Wide Dynamic Range image enhancement
- Built-in 802.3af PoE
Overview
The D-Link DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1.3 megapixel progressive scan CMOS sensor to deliver truly superior quality video under a wide range of lighting conditions. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories.
Enhanced LowLight Video
Incorporating a highly sensitive CMOS sensor, the DCS-4701E provides outstanding performance in low-light conditions, rendering more vibrant colour details regardless of the amount of light available. The noise reduction feature has also been upgraded and enhanced as well to provide a level of detail in the image quality that is unmatched by other offerings in the market.
Continuous Monitoring
The built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions. Combined with the IR-Cut filter, the DCS-4701E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats. These elements combine to make the DCS-4701E an ideal solution for 24-hour surveillance.
Flexible Connectivity
The DCS-4701E has a built-in 802.3af compliant PoE module that eases installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
Robust Management Software
TheDCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
D-ViewCam Features
Manage up to 32 cameras at once
Adjustable image size and quality
Custom recording schedules
Event notifications
Upload a customized floor plan
Technical Specifications
Camera
Camera Hardware Profile
1/3 1.3 megapixel progressive CMOS sensor
30 meter IR illumination distance
Minimum illumination
0.2 lux (color)
0.1 lux (B/W)
0 lux (IR LED on )
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
Minimum object distance 0.2 m
Focal length: 2.8 mm
Aperture: F2.0
Angle of view:
(H) 96
(V) 54
(D) 108
Camera Housing
IP-66 compliant weatherproof housing
Wire-in bracket
Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, and sharpness
WDR
3D filter
Video Compression
Simultaneous H.264/MJPEG format compression
H.264/MJPEG multicast streaming
JPEG for still images
Video Resolution
16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps
4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps
External Device Interface
10/100 BASE-TX Fast Ethernet port
Supports 802.3af PoE
Network
Network Protocols
IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS
CoS
Multicast
SNMP
ONVIF compliant
Security
Administrator and user group protection
Password authentication
HTTP and RTSP authentication
System Management
System Requirements for Web Interface
Browser: Internet Explorer, Firefox, or Safari
Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup
Remote Management
Take snapshots/video clips and save to local hard drive
Configuration interface accessible via web browser
D-ViewCam System Requirements
Operating System: Microsoft Windows 8/7/Vista
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP
D-ViewCam Software Functions
Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
General
Weight
445 g 5 %
External Power Adapter
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V DC 1.5 A
Power Consumption
4.7 watts 5 % (PoE)
Temperature
Operating: -30 to 50 C (-22 to 122 F)
Storage: -20 to 70 C (-4 to 158 F)
Humidity
Operating: 20 % to 80 % non-condensing
Storage: 5 % to 95 % non-condensing
Certifications
CE
CE LVD
FCC
C-Tick
