AC158A Analogue CCTV Cameras
Product description
The peak performer among analogue surveillance cameras, the AC158A has 66 LEDs, and Infrared Cut Filter Removal (ICR) for a night mode maximum of up to 45 metres. It records at 30% better resolution than standard analogue cameras.
On board is a Sony Super HAD II CCD 960H (976x582) sensor, 750TVL, and a 2.8-12mm varifocal lens.
It has a super low lux level of 0.03 which means colour is recorded for substantially longer as light levels diminish, before this security camera switches to infrared (night) mode.
Loaded with multiple image enhancement functions for greater picture quality, the AC158A utilises: White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, and Anti-flicker.

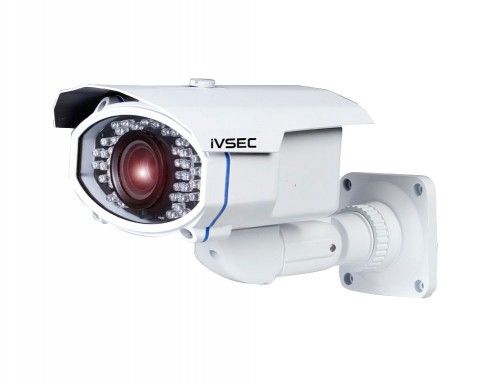

Due to their Wide Dynamic Range (WDR) up to 128dB, these sleek white bullet style CCTV security cameras are ideal for capturing optimum footage in difficult lighting situations.
Main features:Bullet Analogue, 960H, Sony sensor, 2.8-12mm, IP66, WDR up to 128dB, IR, ICR, Low-Lux, 3 year warranty.
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
750TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.03 Low Lux |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
45 |
| Dynamic Range |
SWDR up to 128 dB |
| Image Enhancement |
White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128 dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flicker |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Comments |
Sony Effio-V |
| Model |
AC158A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
241x121 mm |
| Weight |
1.400000 |
