MW870UST
An Added Touch of Fun and Excitement in Learning
The MW870UST gives you the ultimate interactivity with the all new 3rd generation PointDraw technology! Interact simultaneously with multi-device collaboration mode and QDraw3 on the WXGA resolution screen. This ultra short-throw projector also enables 3D projection to maximize the learning experience.
Features
Interactive Learning with BenQ's Leading Technology
3rd Generation PointDraw Technology Now with the All New Multi-Device Collabration Mode
BenQ promotes classroom collaboration as well as teacher-student and student-student interaction by facilitating a diverse learning environment that fosters all learners. Its latest creation, the 3rd generation PointDraw technology, takes teaching and learning to a new level with additional support for multi-device collaboration. With simultaneous teacher-student interaction, students can take turn making their contribution to the lesson under the teachers complete guidance and control.
DLP Link 3D Projection
Maximize students learning with amazing 3D effects! The MW870UST is 3D ready to turn conventional classrooms into a whole new immersive learning environment that best suits todays young learners. Teachers can illustrate complex or abstract concepts using 3D graphics and engage students in biology projects such as animal dissection more effectively. They can also take their classes on virtual field trips whenever and wherever they want.
Good Things Come in Short Distance
Zero Space Constraints
Just imagine the freedom of having the same projection quality with half the required distance! You’ll have better flexibility in choosing your projection locations! That's the magic of short throw!
Zero Eye-Blinding Lights
The short throw projection distance keeps the projector light from shining directl into your eyes, allowing you to kkep your focas on your audience.
Zero Disruptions
Say goodbye to the shadows that often interrupt your presentation. With a projection distance this close, you and your audience can move freely without worrying about obstructions between the projector and the screen!
Thoughtful Design for Teachers 20W Speaker Power and Microphone Input Support
The MW870UST comes with enhanced audio support for your classroom. Two 10W speakers are sealed and secured within each side of the projector with BenQ's anti-shake design to deliver 20W crisp-clear audio performance with stable projection. The microphone input connects the projector to a conventional microphone or microphone headset for increased ease of teaching and learning.
Calibration-Free Interactivity
Unlike other interactive projection solutions, BenQ's PointDraw technology requires no calibration at all between the MW870UST and the projection screen. Teachers can easily set up their lesson to begin teaching – All they need to do is switch on the projector and the PointDraw pen!
WXGA Widescreen Short-throw Projection
Engage your class with BenQ's WXGA (1280x800) short-throw picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts the total viewing area by 30% for effective learning. The unique ultra short-throw technology renders sharper, clearer images and less shadow distractions using only 0.7m to project a large 87" image. WXGA is the best resolution support for widescreen PC and notebooks.
WXGA widescreen projection boosts your totalviewing area by 30%
LAN Display and USB Display
The MW870UST keeps display set-ups quick and easy with LAN Display and USB Display options. LAN Display supports classroom projector control and audiovisual projection display via a single LAN cable. It also enables simultaneous school-wide emergency broadcasts.
USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.
PC-Less Teaching
To make a teacher's job easier, the MW870UST supports PC-less teaching in two ways: USB Drive Display and Remote Desktop.
USB Drive Display allows teachers to teach light with a USB flash drive. All they need to do is save the files they need onto a USB flash drive and insert it in the MW870UST to start teaching. File types supported are JPEG, JPG, BMP, PNG, GIF and TIFF.
Remote Desktop grants teachers remote access to files stored in their computers with a wireless mouse and keyboard via LAN connection. With this handy feature, there will be no need for a classroom computer – which means more money saved on computer purchase, maintenance and repair for your school.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications:
| Projection System |
DLP |
| Native Resolution |
WXGA(1280x800) |
| Brightness* |
3000AL |
| Contrast Ratio |
2600:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F= 2.7, f=5.45mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
0.37 ([email protected]) |
| Image Size (Diagonal) |
60"-300" |
| Zoom Ratio |
Fixed |
| Lamp Type |
225W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
2500/4000 hours (Normal/Economic mode) |
| Keystone Adjustment |
1D, Vertical 40 degrees |
| Projection Offset |
125%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |

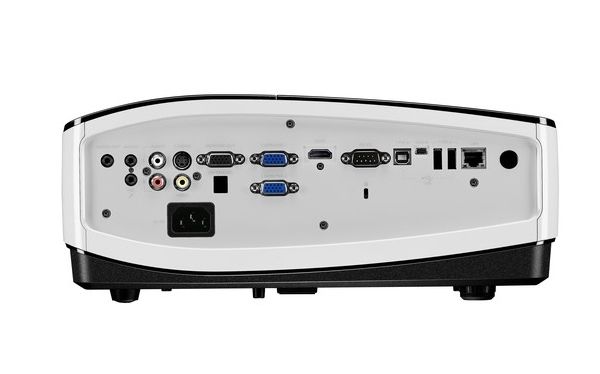

| Interface |
Computer in (D-sub 15pin)x 2 (Share with Component Video in)
Monitor out (D-sub 15pin)x 1
HDMI (V1.3)x 1
Composite Video in (RCA)x 1
S-Video in (Mini DIN 4pin)x 1
Audio in (Mini Jack)x 1
Audio L/R in (RCA)x 1
Audio out (Mini Jack)x 1
Microphone in (Mini Jack)x 1
Speaker10W x 2
LAN (RJ45)x 1
USB (Type A)x 2 (Wireless display/USB Reader/Remote Desktop)
USB (TypeB)x 1 (work for PD pen/ FW download)
USB (mini TypeB)x 1 (USB display)
RS232 (DB-9pin)x 1
IR Receiverx 2
|
| Dimensions(W x H x D) |
330 x 154 x 278 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
4.1 kg (9.1 lbs) |
| Audible Noise |
33/31 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
310W (typical), Standby<1W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
USB cable (B to A type) |
| Accessories (Optional) |
Wireless Dongle WDRL3070
PointDraw 3.0 pen kit
Carry Bag
Wall mount
3D Glass
Document Camera S30 |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
