W1080ST
Big Enjoyment for Small Spaces
Enjoy a 1080p Full-HD home theater experience even in a smaller room with the short throw W1080ST. Enjoy vibrant video with a 10,000:1 High Contrast Ratio and 2000 lumen brightness.
Features
Brilliant Image Performance
Full HD 1080p
Showcase Full-HD content in sharp, 1080p definition and enjoy Blu-ray, video games and HD broadcasting in beautiful, high-contrast quality without downscaling or compression.
Non-Full HD Picture
Low Image Resolution
Full HD 1080p Picture
Detailed Image Resolution
Short Throw
Short Throw, Big Entertainment
Save space and enjoy big screen entertainment even in small rooms thanks to the W1080ST's short throw ability – up to 65" at 1m. Put the projector up close and don't worry about screen obstruction or needing extra space for motion-sensitive gaming.
3D
The W1080ST supports multiple forms of 3D – including HDMI, Blu-Ray, 3D broadcasting, video games and NVIDIA 3DTV PC connectivity – in 1080p Full-HD for maximum enjoyment. You'll appreciate uninterrupted viewing with no crosstalk thanks to DLP technology and new glasses designed for comfort and peak image quality.
Various 3D format supported
| Source / format |
3D Field Sequential |
3D frame packing |
3D top bottom |
3D side by side |
| D SUB-PC |
V |
|
V |
V |
| HDMI-PC |
V |
|
V |
V |
| HDMI-Video |
V |
V |
V |
V |
| S-video |
V |
|
|
|
| Video |
V |
|
|
|
Easy setup
Built-in speakers
Built-in speakers are Plug-and-Play ready, only the power cord and video source connection are needed to prepare the viewing experience.
Play from many devices with HDMI x 2 and multiple connectivity options.
SmartEco
World-Leading SmartEco™ Technology , Green up your living room
Offering Lower maintenance cost and Optimized Projection Through Dynamic Power Saving Uncompromised brightness, exquisite picture quality and optimized lamp life – BenQ's SmartEco technology has perfected what a DLP projector can do in home entertainment projector. With this special innovation, you are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid picture quality in every living room.
Normal Mode
296W Projector Power
Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
(Source: 2010 Philips white paper)
Eco Blank Mode
The Eco Blank mode allows you to blank the projection. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.All you need to do is press the "Eco Blank Mode" button on the keypad or the "Blank" button on the remote control. You don't have to worry it's always fully lamp power consumption while you pause movie then leave.
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
 |
|
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic packaging
|
Specifications:
| Projection System |
DLP |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness* |
2000 ANSI Lumen |
| Contrast Ratio |
10000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F= 2.6-2.78, f=10.2-12.24mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
0.69-0.83 (65.7"@ 1M) |
| Image Size (Diagonal) |
38"-300" |
| Zoom Ratio |
1.2:1 |
| Lamp Type |
240W |
| Lamp (Normal/Economic Mode)* |
3500/5000/6000 hours |
| Keystone Adjustment |
1D, Vertical 40 degrees |
| Projection Offset |
105%5% |
| Resolution Support |
up to WUXGA |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |

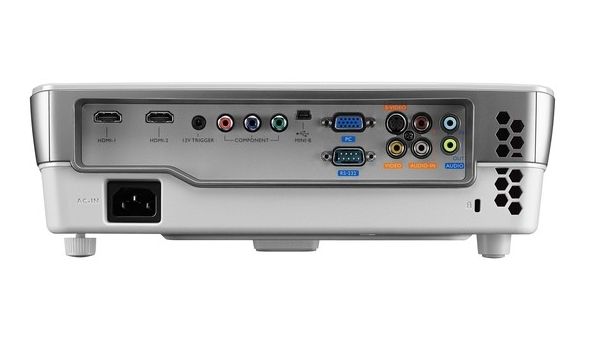

| Interface |
Computer in (D-sub 15pin)x 1
HDMIx 2
Composite Video in (RCA)x 1
S-Video in (Mini DIN 4pin)x 1
Component Video in x 1
Audio in (Mini Jack)x 1
Audio L/R in (RCA)x 1
Audio out (Mini Jack)x 1
Speaker10W x 1
USB (Type B)x1 (for service)
RS232 (DB-9pin)x 1
DC 12V Triggerx 1 |
| Dimensions(W x H x D) |
12.2"x4.09"x9.6" (312x109x244 mm) |
| HDTV Compatibility |
480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM, SDTV |
| Weight |
6.2 lbs. (2.85KG) |
| Audible Noise |
33/30 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
353W/110V (typical), Standby < 0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic / Standard / Cinema / 3D / User 1 / User 2 / User 3 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
Carry Bag |
| Accessories (Optional) |
Spare Lamp Kit- P/N: 5J.J7L05.001
Ceilling Mount- P/N: 5J.J4N10.001
3D Glasses- P/N: 5J.J7K25.001 |
