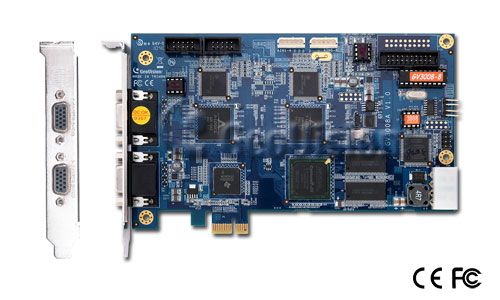

GV-3008
|
GV-3008 x 2
|
|
Interface
|
PCI-E (x1)
|
PCI-E (x1) x 2
|
|
Input Type
|
D-Type
|
D-Type
|
|
Video Input
|
8 Cams
|
16 Cams
|
|
Audio Input
|
8 Channels
|
16 Channels
|
|
Recording Rate (D1)
|
NTSC
|
240 fps
|
480 fps
|
|
PAL
|
200 fps
|
400 fps
|
|
Display Rate
|
NTSC
|
240 fps
|
480 fps
|
|
PAL
|
200 fps
|
400 fps
|
|
Video Resolution
|
NTSC
|
S/W
|
352 x 240
|
352 x 240
|
|
H/W
|
704 x 480
|
704 x 480
|
|
PAL
|
S/W
|
352 x 288
|
352 x 288
|
|
H/W
|
704 x 576
|
704 x 576
|
|
Video Compression Format
|
S/W
|
Geo MPEG4, Geo H264
|
|
H/W
|
H.264
|
|
Audio Compression Format
|
AAC (16 kHz / 16 bit)
|
|
Bit Rate Range
|
2.5 M ~ 10 M
|
|
GV-Net I/O Card Support
|
Yes
|
|
GV-Multi Quad Card Support
|
Yes
|
|
GV-Loop Through Card Support
|
Yes
|
|
Dimensions(W x H)
|
180 x 112 mm / 7.09 x 4.41 in |
|
Installation Guide
|
GV-3008
|
|
Note:
1. GV-3008 does not support the TV-Out function.
2. GV-3008 is currently not compatible with VIA series, ATI series, Intel Sandy Bridge series and NVIDIA series chipset motherboards.
|
|
Minimum System Requirements For One Card
|
|
OS Supported
|
32-bit
|
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
|
|
64-bit
|
Windows 7 / Windows Server 2008 R2
|
|
CPU
|
Core 2 Duo, 2.33 GHz
|
|
RAM
|
2 x 1 GB Dual Channels
|
|
HDD
|
250 GB
|
|
Graphic Card
|
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
|
|
DirectX
|
9.0c
|
|
Power Supply
|
400 Watts
|
|
Minimum System Requirements For Two Card
|
|
OS Supported
|
32-bit
|
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
|
|
64-bit
|
Windows 7 / Windows Server 2008 R2
|
|
CPU
|
Core 2 Quad, 2.4 GHz
|
|
RAM
|
2 x 1 GB Dual Channels
|
|
HDD
|
500 GB
|
|
Graphic Card
|
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
|
|
DirectX
|
9.0c
|
|
Power Supply
|
400 Watts
|
