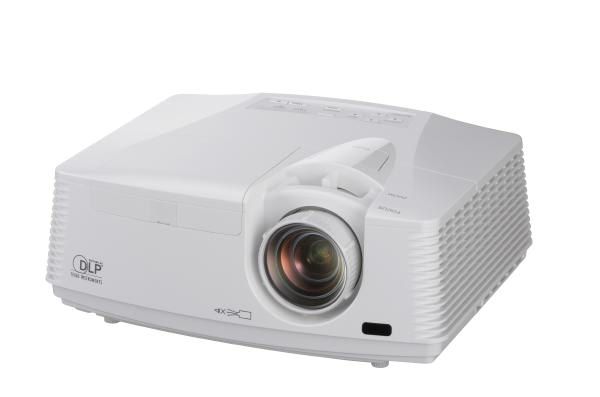

XD700U
Premium-Grade DLP Projector Built for Mobility
High contrast, impressive brightness, full flexibility and solid reliability
Superior High Contrast
Amazing contrast ratio of 3000:1
Easy and Flexible Installation
Vertical lens shift function for quick set-up
USB/LAN Display
Reproduces images with or without a computer
Energy Efficient
Selection functions for lamp, power and stand-by
Projects Vivid, Life-Like Images
Remarkable 5000lm brightness and high contrast of 3000:1 make projections crisp, clear and stunning, even in large lecture hall settings. Need to present in a brightly lit room? No problem with the DLP projector, because projections remain vibrant and clearly visible whether the lights are up or dimmed. The Mitsubishi Electric color wheel and BrilliantColor™ guarantees that images are rich and true-to-life.
Reproduces Images with or without a Computer
Use a USB cable, LAN cable or commercially available wireless dongle to reproduce images from a computer. Up to four computers can be connected to one projector when displaying via a LAN. Computer-free presentations are also possible. PowerPoint files can be converted into a special format using a PtG Converter and then saved on a USB storage device. When the USB is attached to the DLP projector, slideshows or animated effects can be replayed using only the projector.
User-Friendly Installation and Operation
This projector installs virtually anywhere. Simply open the top cover and use the shift-adjustment toggle to manually shift the lens vertically. A significantly low noise level of only 28dB in low mode ensures that the presenter’s voice comes across loud and clear without a distracting fan noise in the background. When using the LAN display function, a USB mouse or USB keyboard can be connected to the projector, making direct access to a computer using the Internet or other application possible.
DLP Projector with Eco-Conscious Functions and Features
The lamp, power source and standby mode can be set, directly or by remote control, according to the usage environment. An estimated 5000-hour lamp life (in low mode) provides a longer service life, resulting in substantial cost reductions in operation and maintenance. Auto Power-off reduces needless power consumption while stand-by mode consumes less than 0.5W.
Features & Specifications
3D-Ready
Perfect for higher education or corporate applications, images can be rendered in stunning 3D—adding a new dimension to viewing scientific, architectural, and engineering imagery. 3D video content must be in field sequential format, a high end graphic card and special electronic shutter glasses are required
USB Display
Connect the PC via a USB cable, eliminating the need for expensive VGA cables
LAN Display
For displaying images via a LAN, up to four computers can be connected to one projector. The projection screen can be divided into quarters, reproducing all computer screens simultaneously.
PC-less Presentations
Eliminate the PC altogether when using a USB storage device. Supports JPEGS or PowerPoint converted PTG files Wireless Compatibility Wireless presentations are possible when used with an optional wireless dongle (not included)
Digital Input
HDMI input for true digital connections from both PC or video sources
Visual PA
Instantly broadcast news and important messages to all classrooms at once through a simple interface that accommodates messages up to 350 characters
RJ45
Supports remote managment and control via built-in RJ45 connectivity port
Wall Screen Support
Ability to project images on color backgrounds such as beige, light blue, light green, pink, blackboard and whiteboard. Projector automatically adjusts for color tone
Anti-theft Security Hook
Built into the projector to prevent theft and any unauthorized removal of the projector
Closed Caption
Provides on-screen visual representation of text
Audio Mixer
Support audio mixing from multiple audio sources
Display
Imaging Technology:
DLP 0.7"
Brightness/Lumens:
5000 ANSI Lumens
Native Resolution:
1024 x 768
Maximum Resolution:
1600 x 1200
Viewable Size:
40"- 300"
Contrast Ratio:
3000:1 (On/Off)
Color Wheel:
5-Segment (R,G,B,W,Y)
Included Accessories
AC Power Cable
Lens Cap
VGA (D-sub) Cable
Remote Control (w/ 2 batteries)
User Manual CD
Size, Weight, Power
Weight:
9.0 lbs.
Dimensions: (W x H x D)
13.6" x 5.3" x 10.6"
Power Consumption:
405W/4.1A
Power Requirements:
AC 100-240V, 50/60Hz
Decibels:
28dBA (Low Mode)
34dBA (Standard Mode)
Lens & Operation
Lens Throw Ratio:
1.4 - 2.1
Zoom & Focus Adjustment:
Manual Zoom & Focus
PC/MAC Compatibility:
Yes
Scanning Frequency:
[H] 15-105 khz, [V] 50-120 Hz
[Dot Clock] max.165 MHz
Estimated Lamp Life Rating:
5000 hrs (Low Mode)
3000 hrs (Standard Mode)
Usage Replacement Lamp:
VLT-XD700LP
Interface
NTSC, PAL, SECAM:
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i/p(1125i/p 60Hz), 1080i/p(1125i/p 50Hz)
Computer & Video Input Support:
RGB: Mini D-sub 15pin x2
Audio: Stereo mini jack (f3.5mm) x 2 (one for PC1, another one for PC2)
Video: RCA x 1 + S-VIDEO x 1
Digital: HDMI x 1
Video Audio: RCA jack (L/R) x 1
RS-232 Communication Support: Yes
12V Trigger: N/A
Computer Monitor Loop-Out: Yes
Audio Speaker: Yes
Audio Out: Yes
USB Mouse Support: N/A
