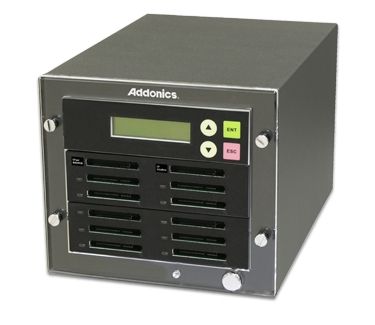

Addonics 1;10 CF Duplicator Pro - Support Up to 300MB/s, LCD Display With Functional Control Panel

Product May Vary From Image
Part No:
200791
Brand:
Addonics  Web Site
Manuf No:
CFD10-2S

CFD102S
Ship Weight:
5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

The Addonics CF or CFast Duplicator is a family of fast and economical equipment for making copies of CF or CFast media. Choose from an array of models that allows you to duplicate 4, 5 or even 10 media at a time. The CF/CFast Duplicator is also easy to operate. Simply insert the source media into the source slot and target media with equal or larger capacity into the destination slots, then push the copy button to start the copying process. There is no complicated software to run.

About this model

This 1:10 CF Duplicator PRO model allows you to copy from one CF or CFast card onto as many as ten CF cards at one time. It is a perfect equipment for content distribution using CF media or for transferring content from CFast card to CF card.



Diagram illustrating duplicator features

Front view

media duplicator diagram

Rear view
(Dual sources feature is available in PRO model only)

Specifications:
  • Writing mode : Sector to Sector
  • Support up to 150 MB/sec transferring rate (actual transfer rate depends on the speed of flash media in the source and the destination slot)
  • Sturdy metal frame construction
  • One CF and one CFast source slots
  • Ten CF target slots
  • CF slot supports Compact Flash Type I (CF-I), Compact Flash Type II (CF-II), Micro DriveTM
  • LCD display with functional control panel
  • Well ventilated for efficient air flow.
  • Low noise high CFM ball bearing cooling fan
  • Integrated 80W 110/240 auto-sense power supply
  • Compact size - 7.48 x 10.63 x 6.5 inch (190 x 270 x 16.5 mm) (W x D x H)
  • Weight:9.52 lb (4.32 Kg)
  • Operating environment: 0 - 60 degree C, 15% - 90% RH
  • Storage environment: -40 - 90 degree C, 0% - 95% RH non-condensing
  • 1 year warranty

Features:
  • Make copy from any type of CF or CFast card
  • Duplicate from one up to ten CF cards at one time
  • CF slot is compatible with CF-I, CF-II and Micro DriveTM
  • Completely standalone with no additional hardware or software required
  • Copy speed up to 150 MB/sec depending on the performance of the media
  • OS independent
  • LCM control module provides a rich set of robust advanced configuration options(clickFull LCD console feature list in this duplicator)
  • Green LED for both source and destination slots to indicate media access

Product Warranty


1 Year Return to Base
