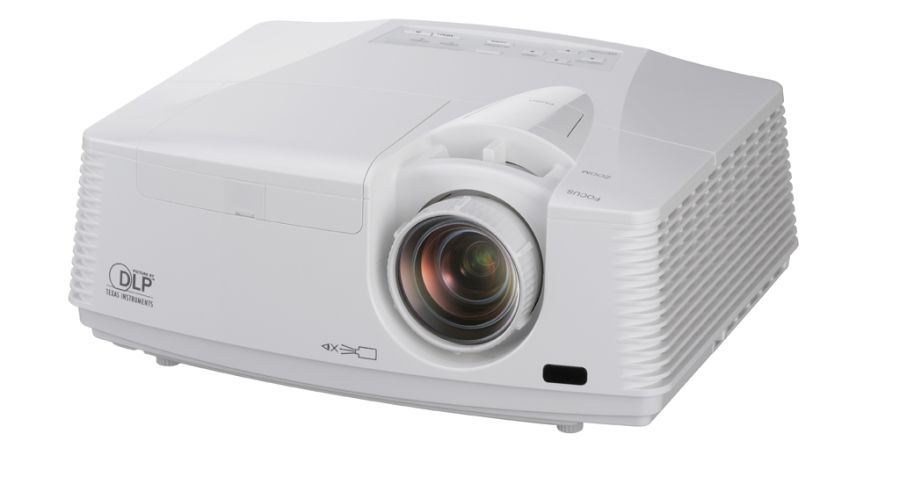

WD720U
Expanding the Limits of Mobility.. world-class premium mobile projectors with superior contrast and brightness.
Function & Highlights
Picture Performance
Presentation
User Friendly
Full Flexibility for a Diverse Range of Uses
from conference rooms to lecture halls, floor-standing to ceiling-suspended
Always working to provide superior products, Mitsubishi Electric is delighted to introduce the WD720U of premium-grade mobile projectors. Extremely reliable and easy to use, this projector line-up produces images at the amazingly high contrast of 3000:1 and with 5000lm brightness. Features such as a long-life lamp (5000hr) to ensure reliability, an Efficient mode for eco-conscious operation, a simple lens shift function for quick setup/installation, and USB/LAN display, remote desktop control and other unique network-compatible functions ensure user-friendly operation wherever used.
High Image Quality
Vivid color 4300lm Brightness and 3000:1 High Contrast
Projection of clear, sharp images even in brightly lit rooms
Features including impressive 4300lm brightness and a high contrast of 3000:1 allow the XD700U to reproduce clear, sharp images regardless of venue size, be it a large meeting room or lecture hall. Mitsubishi Electric's original color wheel and BrilliantColor™ are incorporated as well, ensuring life-like color reproduction. Whether coming from a computer, video-cassette player or other source, the reproduction of vivid images full of color is guaranteed.
Projection of clear, sharp images even in brightly lit rooms
3000lm
4300lm
High Reliability & Eco-conscious
Energy-efficient Mode Selection
Models are equipped with selection functions for the lamp, power source and standby mode, allowing each to be set according to the usage environment.
Lamp Mode: Standard / Low
Standby Mode: Low / LAN / Speaker Out / Monitor Out
Auto Power Off: OFF / 5Min / 10Min / 15Min / 30Min / 60Min
Estimated 5000-hour lamp life (in Low mode)
A longer service life for the projection lamp has been achieved by incorporating an optimal design for lamp temperature control. Benefits include substantial reductions in projector operating cost and the labor required for changing the lamp.
Lamp life specification is an estimate based on verification under proper conditions and is not the duration of the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum lamp hours. Service life may vary widely depending on usage and operating environment and conditions, as well as users' adherence to the maintenance and cleaning procedures provided in the user's manual.
Auto Power Off
If no image signal is output for a predetermined period of time*, power is automatically turned off, realizing energy savings by reducing needless power consumption.
Time preset by user
Stand-by Wattage under 0.5W*
Stand-by (low) mode power consumption is less than 0.5W, offering increased energy savings and further contributing to environmental preservation.
When in stand-by (low) mode. At this time, use of the LAN function is not possible.
Unpainted Cabinet (Recyclable)
As an eco-conscious measure to promote recycling, an unpainted projector cabinet is adopted.
Installation flexibility & User friendly Presentation
Lens Shift Function (Vertical only)
Simply open the top cover on the projector and use the shift-adjustment toggle to manually shift the lens vertically. This eliminates the need to move the projector to adjust the position of images being projected, enabling the flexibility to install it in virtually any setting environment.
Shift-adjustment toggle
Availability area for lens shift from default position*Please refer to "Screen Size and Projection Distance" on the back cover.
Quiet 28dB Operation
Projection fan noise can be distracting during a presentation or videoconference. The WD720U projectors operate at a significantly low noise level of only 28dB (i.e., in "low lamp" mode). As a result, presentations and conferences can be held without distracting projector noise in the background.
Excellent Sound Projection (10W Speaker+Audio Mix)
Loud 10W built-in speaker + Audio Mix
Using Audio Mix and the built-in 10W speaker, the voice of the presenter and audio from an external audio source can be delivered simultaneously.
Loud 10W built-in speaker + Audio Mix
Various Presentation Function
Computer-free Presentation (PC less presentation) [PtG file/JPEG Viewer]
Using "PtG Converter", PowerPoint files can be converted into a special format and saved on a USB storage device. When the USB device is connected to the projector, users can replay slideshows or animation effects using only the projector.
Note: The types of slideshows and animation effects that can be replayed are limited.
JPEG files saved on a USB storage device can be projected in slideshow style.
Note: Only compatible with JPEG files.
Remote Desktop
When using the LAN Display function, a USB mouse or USB keyboard can be connected to the projector enabling direct access to a computer utilizing the Internet or other application.
USB Display/LAN Display
To use the projector to reproduce images from a computer, a USB cable, LAN cable or commercially available wireless dongle can be used. For displaying images via a LAN, up to four computers can be connected to one projector. The projection screen can be divided into quarters, reproducing all computer screens simultaneously.
Network Connectivity
Projectors are equipped with a RJ45 LAN terminal for remote operation. Additionally, when used with Crestron RoomView, integrated control of up to 250 projectors including power on/off control, message display and confirmation of lamp service hours is possible. Mitsubishi Electric WD720U is equipped with AMX Device Discovery for simplified device management and compatible with PJLink.
Specifications:
| Display technology |
0.65" 1-chip DMD |
| Resolution |
1280 800 (total 1,024,000 pixels) |
| Brightness* |
4300lm |
| Contrast ratio |
3000 : 1 |
| Picture size |
40" 300" |
| Throw ratio |
1.5 2.2 |
| Source lamp |
Standard Mode: 280W (Shut-off Time 3000hrs),
Low Mode: 230W (Shut-off Time 5000hrs) |
| PC compatibility |
640 480 - 1600 1200, True : 1280 800,
Sync on Green available |
| Video compatibility |
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 50/60Hz) |
| Input terminals |
RGB: mini D-sub 15pin 2
Audio: Stereo mini jack (3.5mm) 2 (one for PC1, the other for PC2)
Video: RCA 1 + S-VIDEO 1
Digital: HDMI 1
Video Audio: RCA jack (L/R) 1 |
| Output terminals |
RGB: mini D-sub 15pin 1
Audio: Stereo mini jack (3.5mm) 1 |
| Communication terminals |
SERIAL: mini D-sub 9pin 1 (RS232C)
LAN (RJ-45): 1 (Projector control, LAN Display)
USB type-A: Wireless Display, Computer-free Presentation (PC less presentation)
USB type-B: USB Display |
| Audio speaker |
10W mono |
| Dimensions (W H D) |
345 134 270 mm / 13.6 5.3 10.6 inch |
| Weight |
4.1kg / 9.0lbs |
| Power requirements |
AC 100 - 240V, 50/60Hz |
| Optional lamp |
VLT-XD700LP |
