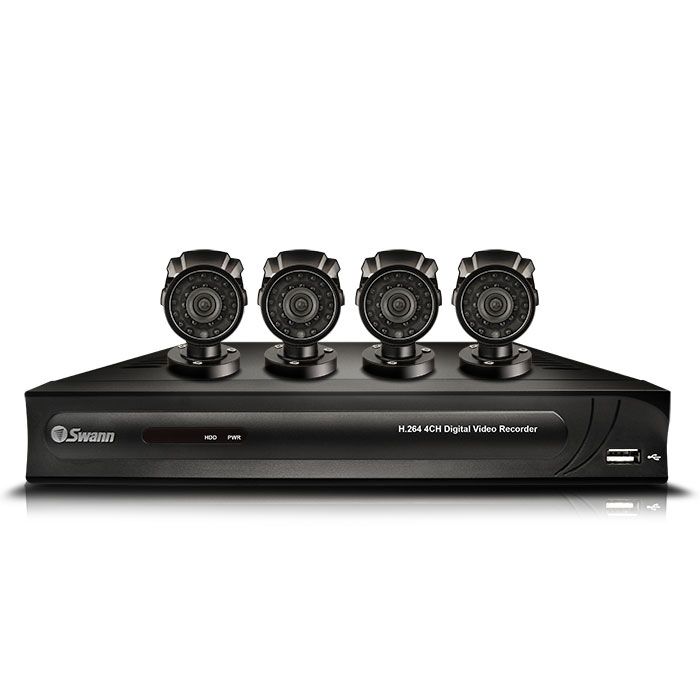

DVR4-1200 4 Channel DVR with Smartphone Viewing & 4 x ADS-180 Cameras
SWDVK-412004C
4 Channel Digital Video Recorder with pre-installed 500GB HDD / 4 x 400 TVL line Cameras / H.264 latest recording technology / Web and Smartphone remote viewing / Transfer incidents to USB flash drive / VGA connection to view on PC
Security Recording Kit with Internet & Smartphone Viewing. Protect your home and business from the palm of your hand!
Home
View all 4 channels on your TV or LCD monitor using video-in or VGA connection.
The Swann DVR4-1200 & 4 ADS-180 Cameras Security Monitoring System delivers everything you need to defend your home or business, safeguard your loved ones and deter intruders. It is cutting-edge surveillance technology made easy, at an affordable price.
The system includes a state-of-the-art 4 Channel DVR4-1200 digital video recorder for simultaneous viewing and recording of 4 video streams locally, over the Internet or on your 3G Smartphone. The unit has H.264 video compression for fast, efficient recording and playback. You can also adjust the frame rate and image resolution with real-time recording on all 4 channels (30fps per channel, 120 fps total) and the ability to adjust the recording settings for each camera to the resolution you choose from 352 x 240 pixels (CIF) up to 704 x 480 pixels (D1). The four Day / Night Cameras provide clear video through their clear resolution 400 TV Lines 1/4" Super CMOS image sensors with night vision up to 32 feet and the ability to operate indoors and outdoors.
A massive 500GB SATA hard drive is pre-installed to allow up to 120 days+ of continuous recording from all 4 cameras. You can also record for longer, save time and hard drive space using the DVR4-1200's advanced motion activated recording. Even better, the time and date are integrated into your video files, allowing you to find incident footage and transfer events to a USB flash drive for easy storage and retrieval when the time is right. You can also configure the DVR to send you email alerts when activity is detected for peace of mind, all the time.
Easily set-up remote viewing with Swann's UPnP (Universal Plug n Play) technology that automatically configures the DVR to your router (if your router has UPnP capability) and the internet. Knowing what's happening is easier than ever with VGA connection for viewing on your PC or LCD monitor (with VGA input) or view on your existing TV using the video cable in the pack.
Surveillance in the palm of your hand with live viewing on 3G-enabled Smartphones. (sold separately)
Save time & have peace of mind by easily locating incident video, then transfer to USB flash drive
With the Swann DVR4-1200 & 4 ADS-180 Cameras Security Monitoring System, Smartphone viewing is remarkably easy to set up and use. Once the DVR and cameras are installed at your home or business, simply download the free 'SwannView' app from the relevant app website or from
www.swann.com/swannview. For iPhone or iPad users the app is free to download from the AppStore. For Android users it can be downloaded from the Android Market and BlackBerry users can access their AppWorld. Users of Windows Mobile 6 or Symbian OS can download from
www.swann.com/swannview.
For your convenience the app is also included on a disk in the pack. Once Swannview is installed on your Smartphone, put the DVR's IP address into the browser and in less than a minute you can view video from all 4 cameras live onscreen. You can also receive email alerts if the DVR detects motion. Staying in contact has never been easier!
As a specialist in DIY Security, you can buy Swann products with confidence knowing you will be keeping your loved ones, home or business safe. Swann stands by its promise of Lifetime Support to make advanced security easy to use, install and maintain. Everything is in the pack but if you need it, Swann's help desk is available with extended hours to remotely set up your internet viewing and answer any questions you may have. If you don't have the time to DIY, Swann can organize installation with full details in the pack.
The Swann DVR4-1200 & 4 ADS-180 Camera Security Monitoring System is professional, affordable and allows you to have peace of mind at your home or business wherever you are, at anytime. It really is advanced security made easy.

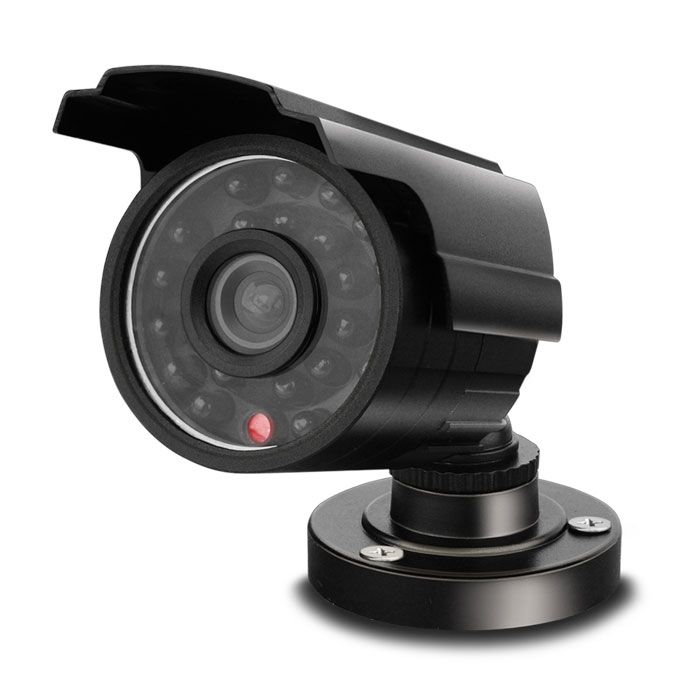

24 Infrared LED's in each of the ADS-180 provides 32ft of night vision.
Features:
- View & record from up to 4 cameras simultaneously during the day, night, indoors or outdoors
- Includes 4 all-weather, clear resolution 400TVL cameras with powerful night vision to 32ft/10m
- Set & forget by recording continuously from 4 cameras for 120 days+ onto a massive 500GB hard drive even longer with motion detection
- Save time & have peace of mind by easily locating incident video, then transfer to USB flash drive
- Surveillance in the palm of your hand with live viewing on 3G enabled Smartphones including iPhone, iPad, Blackberry, Android, Windows Mobile 6, Symbian OS and more*
- Remote viewing is easier than ever to set up with UPnP (Universal Plug n Play) auto network configuration**
- Fight back against crime by deterring intruders, protecting your property & knowing what's happening at all times
- An expandable, state of the art solution for any home or business wanting complete protection
+ 120 days recording achieved using lower settings, default settings give 30 days recording
* Monitor & mobile phones not included, check the website for the latest models
** Applies to modems that have UPnP function
Specifications:
| DVR4-1200 |
|
|
Video |
|
Video Format
|
Both |
|
Video Inputs
|
4 Composite BNC Inputs |
|
Video Outputs
|
2 Composite BNC Outputs |
|
Display Resolution
|
NTSC: 704 x 480 / PAL: 704 x 576 |
|
Display Frame Rate
|
NTSC: 120fps / PAL: 100fps |
| |
Audio |
|
Audio Input
|
1 RCA Input |
|
Audio Output
|
1 RCA Output |
| |
Recording |
|
Compression Format
|
H.264 |
|
Recording Resolution
|
NTSC: 704 x 480 (D1), 704 x 240 (HD1), 352 x 240 (CIF) / PAL: 704 x 576 (D1), 704 x 288 (HD1), 352 x 288 (CIF) |
|
Recording Frame Rate
|
NTSC: 30 fps (D1), 60 fps (HD1), 120 fps (CIF) / PAL: 25 fps (D1), 50 fps (HD1), 100 fps (CIF) |
|
Recording Modes
|
Manual / Schedule / Motion |
|
Multiplex Operation
|
Triplex |
|
HDD Interface / Memory Type
|
SATA |
|
Hard Drive Support
|
Up to 1TB |
| |
Network |
|
LAN Connection
|
Yes |
|
Network Interface
|
RJ45 |
|
Network Protocol
|
TCP/IP, DDNS, UPnP |
|
Remote Operation
|
Yes |
| |
General |
|
Operating Power
|
DC 12V |
|
Dimensions
|
9.8" x 8.7" x 1.6" / 250mm x 220mm x 40mm |
|
Weight
|
3.3lbs / 1.5kg |
|
Back-up Method
|
USB to Flash Drive |
|
Mouse Support
|
Yes |
|
Remote Control
|
Yes |
|
Remote Control Battery Type x Qty
|
2 x AAA |
|
ADS-180 Camera
|
|
|
Video
|
|
Image Sensor
|
Color 1/4" Super CMOS |
|
Video Quality
|
400 TV Lines |
|
Pixels
|
NTSC: 510 x 496PAL: 628 x 586 |
|
Minimum Illumination
|
0 Lux (IR on) |
|
Day/Night Mode
|
Color during day / switches to B&W at night |
|
Electronic Shutter
|
1/60 - 1/15,000 NTSC
1/50 - 1/15,000 PAL |
|
Gain Control
|
Automatic |
|
Backlight Comopensation
|
Yes |
|
Wide Dynamic Rangel
|
No |
|
Lens
|
6mm |
|
Viewing Angle
|
53 degrees
|
| |
Night Vision
|
|
Night Vision Distance
|
Up to 32ft / 10m |
|
IR Cut Filter
|
No |
|
Number of Infra-Red LEDs
|
24 |
|
Infra-Red Wavelength
|
940nm |
|
Infra-Red LED Life
|
10,000 hrs |
| |
General
|
|
Indoor / Outdoor
|
Both |
|
Operating Power
|
DC 12V |
|
Operation Temperature
|
14 degrees F ~ 122 degrees F
10 degrees C ~ 50 degrees C |
|
Body Construction
|
Aluminum & ABS Plastic |
|
Camera Dimensions
|
2.25" x 2" x 2"
56mm x 50mm x 50mm |
|
Stand Dimensions
|
3" x 2.33" x 2.33"
75mm x 58mm x 58mm |
|
Camera Weight & Stand
|
0.6lbs / 260g |
|
Cable Length
|
60ft / 18m |
